Scope of delivery (control unit)
The PAMIO modules listed below are not included in
the control unit's basic scope of delivery. They can be
ordered from Power Automation (see Ä Chapter 9
“Service and return process” on page 95).
For further information on the modules' specifications refer to the
PA Accessories installation manual.

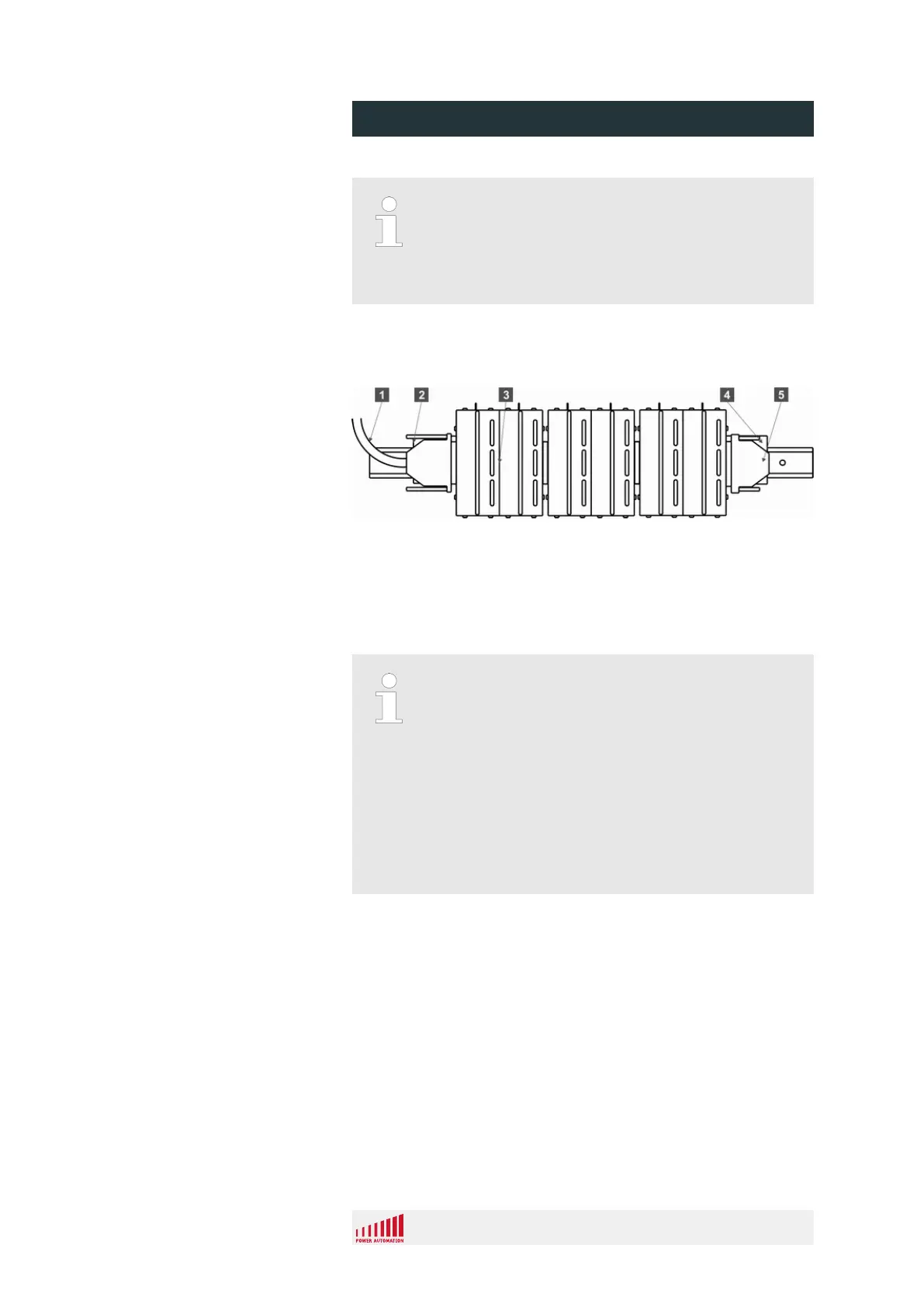

Fig. 38: PAMIO hardware
1 connection cable (30 m / 98 ft max.)
2 lateral rail stoppers
3 module box
4 stopping bracket
5 termination plug
Scope of delivery (PAMIO hardware)
PAMIO boxes are shipped without connection cables.
Cables of the following lengths can be ordered from
Power Automation: 2 m (6.5 ft), 5 m (16.5 ft),
10 m (33 ft), 20 m (66 ft), 25 m (82 ft) (see
Ä Chapter 9 “Service and return process” on page 95).
Cable length
– Ensure, that the total cable length between the
control unit and the last PAMIO box does not
exceed 25 m (82 ft).
The PAMIO hardware consists of the following components:
n PAMIO boxes
n PAMIO modules (2 per box, options listed below)
n cable between control unit and PAMIO box
n termination plug
(always required)
n lateral rail stoppers
(required if more than one module box is used on the same
rail)
n slot cover
(required when a module slot is not occupied by a PAMIO
module)
PAMIO Hardware
PA 8000 EL CNC control unit
Design and function
24.09.2015 | 62
