SD750
POWER CONNECTION
41
EN
NOTICE
The number of three phase plus neutral cable hose (U, V, W, PE) to the motor should be equal to
the number of IGBTs in the drive, having one 4-wire cable hose by each IGBTs block.

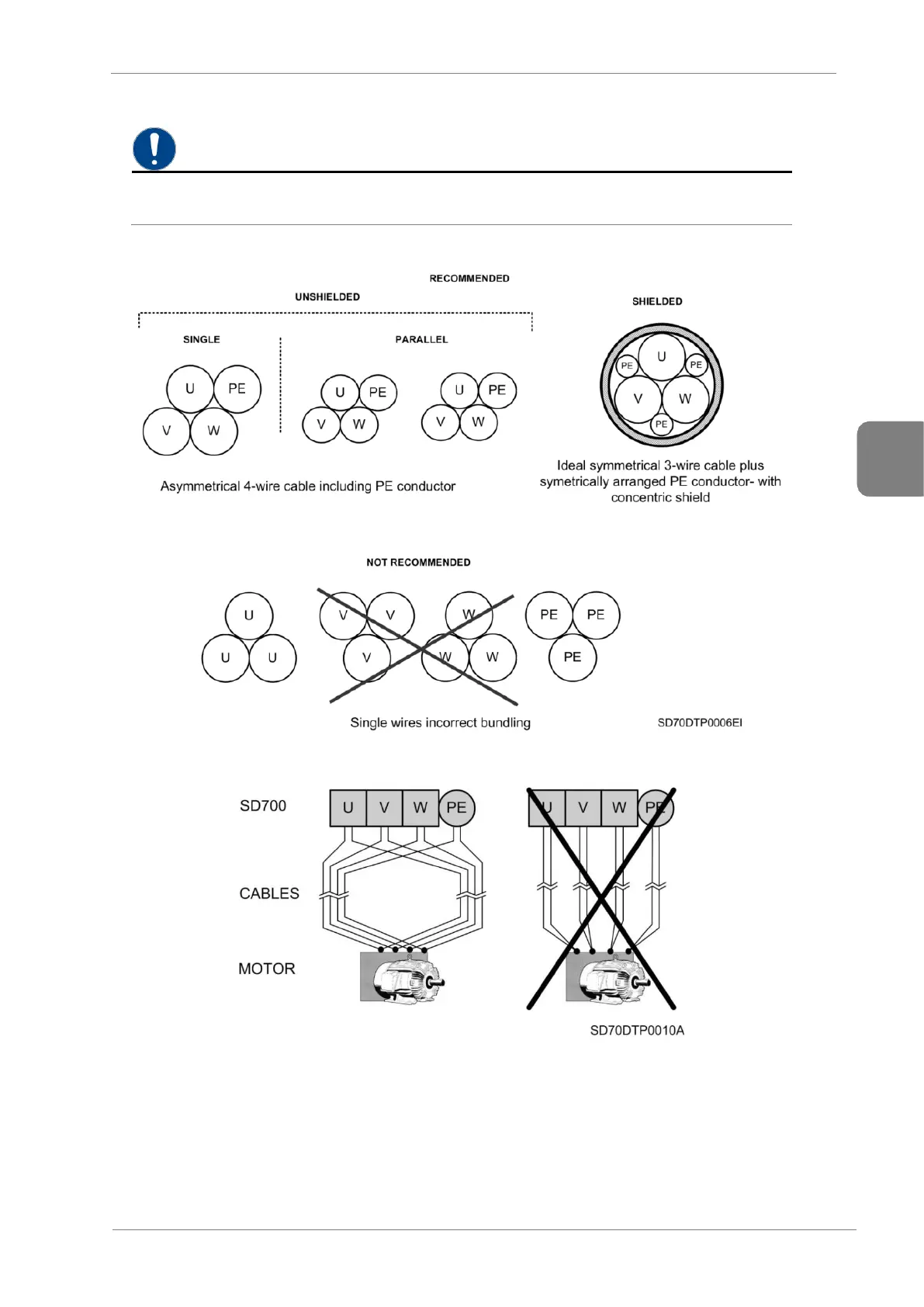

The following figures show the recommended cable type and bundling.
Recommended cable type and bundling
Recommended cable bundling scheme
