Power Meter Bulletin No. 3020IM9503R6/98

Chapter 5—Wiring December 1998

Display

Communications

Port

Load

Line

AØ

BØ

CØ

VDS

Fuses

Voltage

Control

Power

Comms

Current

KYZ

Top

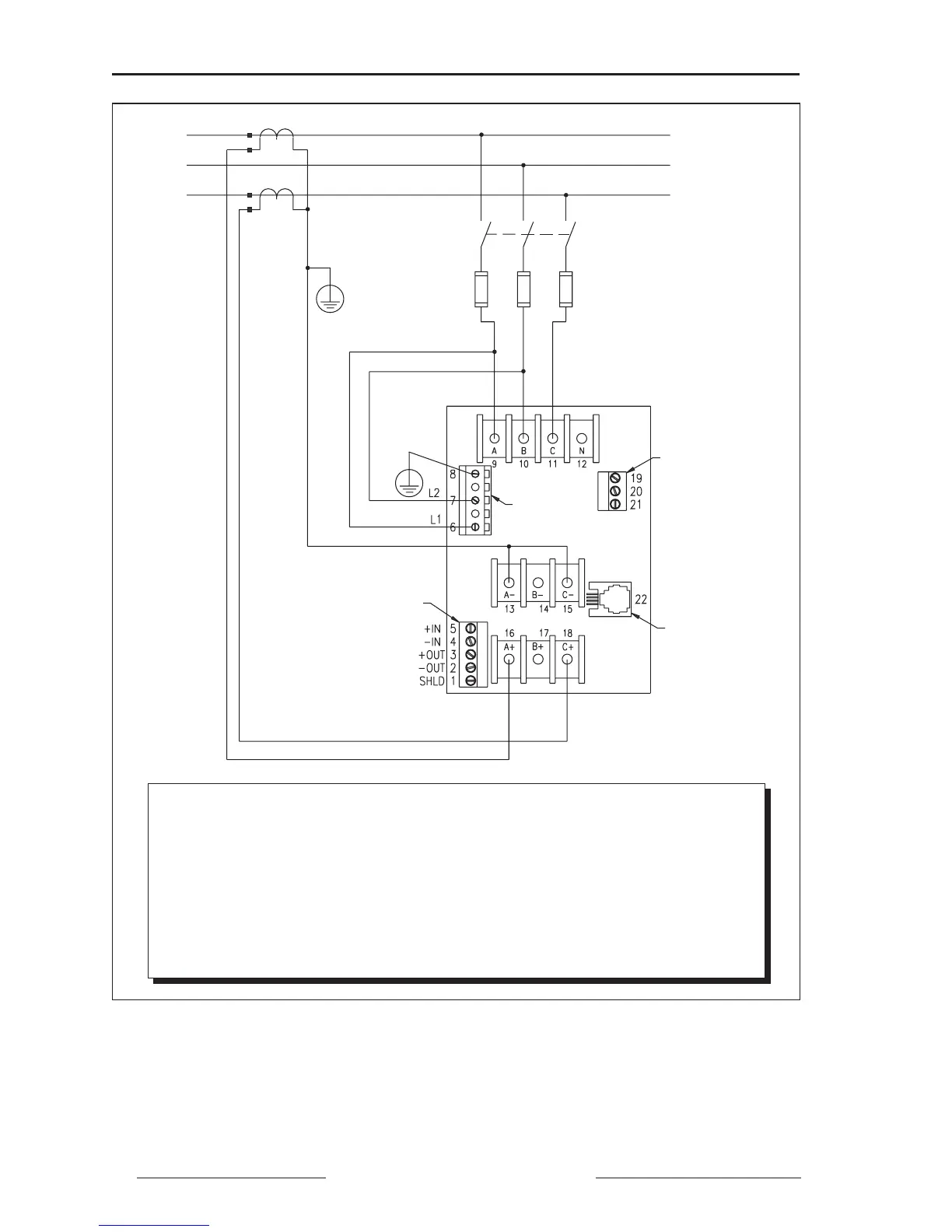

Figure 5-3: 3-phase, 3-wire delta direct voltage connection with 2 CTs

Note: Control power can be drawn from fused voltage inputs L-L or an external

source. See page 22 for CPT and fuse recommendations.

Control power range: L1-L2 90–600 Vrms

90–300 Vdc

Installation Category II

For ungrounded delta systems only.
