Bulletin No. 3020IM9503R6/98 Power Meter

December 1998 Chapter 5—Wiring

Display

Communications

Port

Load

Line

AØ

BØ

CØ

VDS

Fuses

Voltage

Control

Power

Comms

Current

KYZ

Top

Fuses

Open Delta

PT Connection

(120 V Secondaries)

Fuses

CPT

(120 or 240 Vac

Secondary,10 VA)

CDS

Fuse

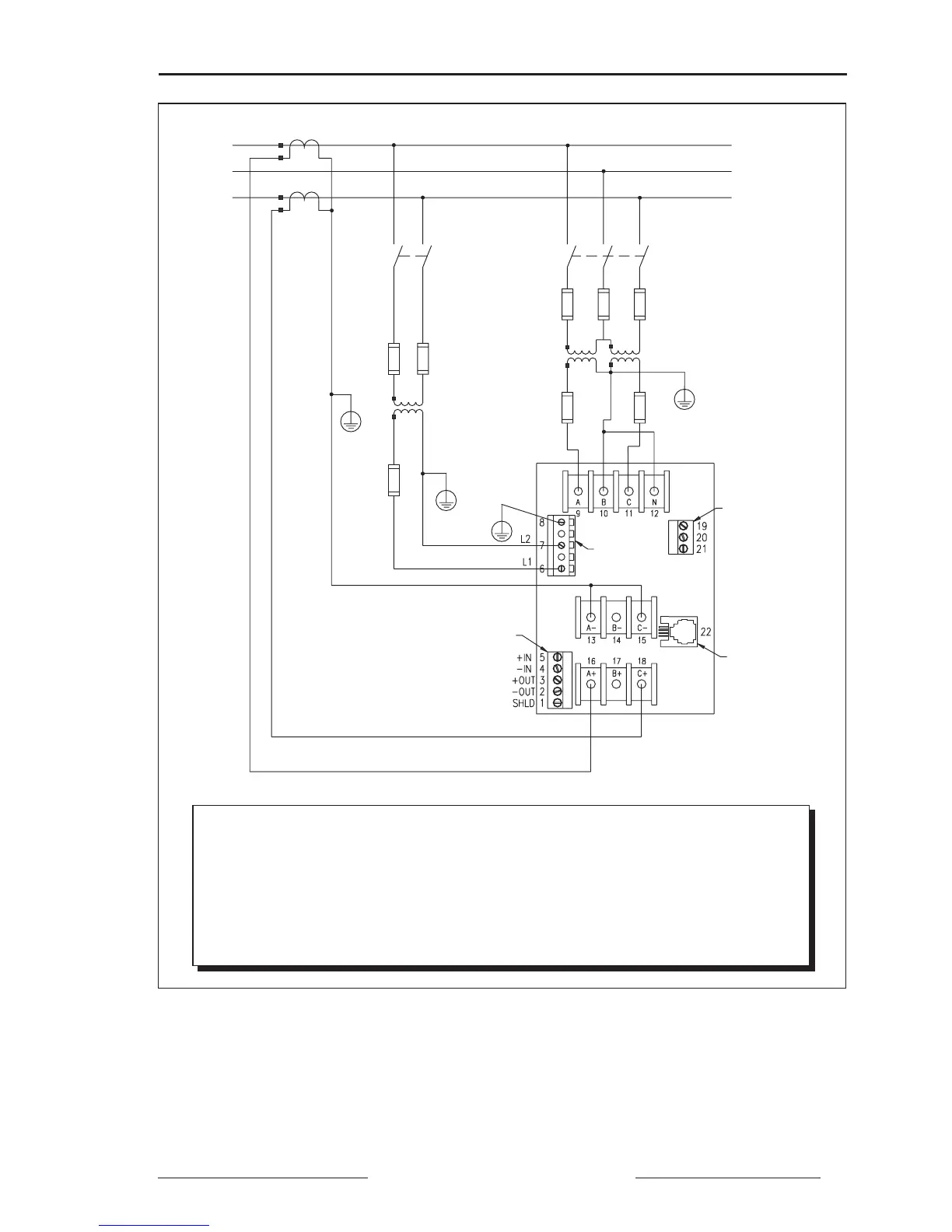

Figure 5-4: 3-phase, 3-wire delta with 2 PTs and 2 CTs

Note: Control power can be drawn from fused voltage inputs L-L or an external

source. See page 22 for CPT and fuse recommendations.

Control power range: L1-L2 90–600 Vrms

90–300 Vdc

Installation Category II
