Power Meter Bulletin No. 3020IM9503R6/98
Chapter 5—Wiring December 1998
34 1998 Square D All Rights Reserved
L
120 Vac
N
N
10 A Fuse
Load
Load

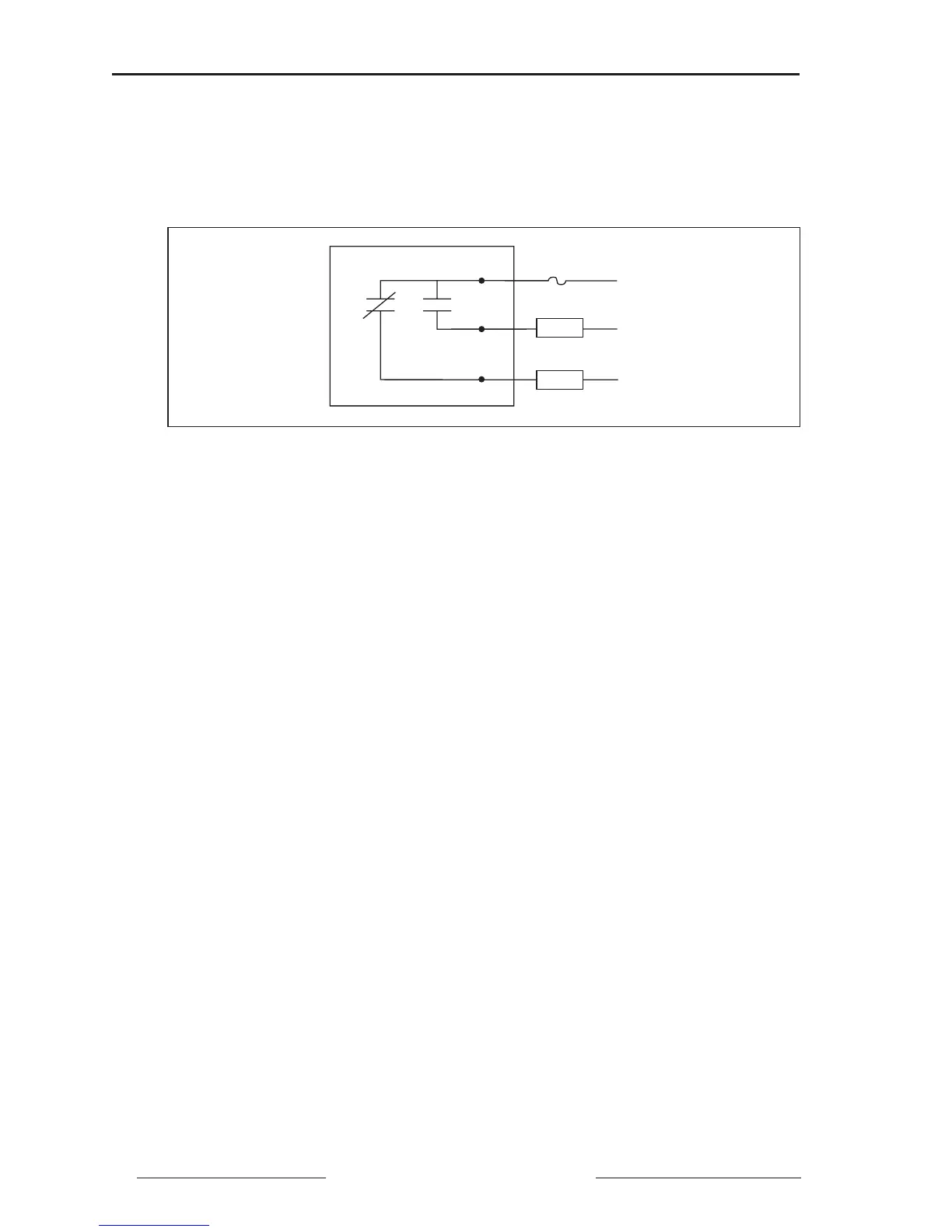

Figure 5-11: Typical KYZ output connection for use as an alarm contact
For the PM-650 only, the KYZ output can also be wired as an alarm contact
(figure 5-11). When wiring the KYZ output, use 14 to 18 AWG wire. Strip 0.25"
(6 mm) of insulation from the end of each wire being connected to the KYZ
connector. Insert the wires into the KYZ output terminal block. Tighten the
terminal block screws to 5–7 lb-in (0.56–0.79 N•m).
