Power Meter Bulletin No. 3020IM9503R6/98

Chapter 5—Wiring December 1998

Display

Communications

Port

Load

Line

AØ

BØ

CØ

VDS

Fuses

Voltage

Control

Power

Comms

Current

Fuses

Open Delta

PT Connection

(120 V L-N

Secondaries)Fuses

CPT

(120 or 240 Vac

Secondary, 10 VA)

CDS

KYZ

Top

Fuse

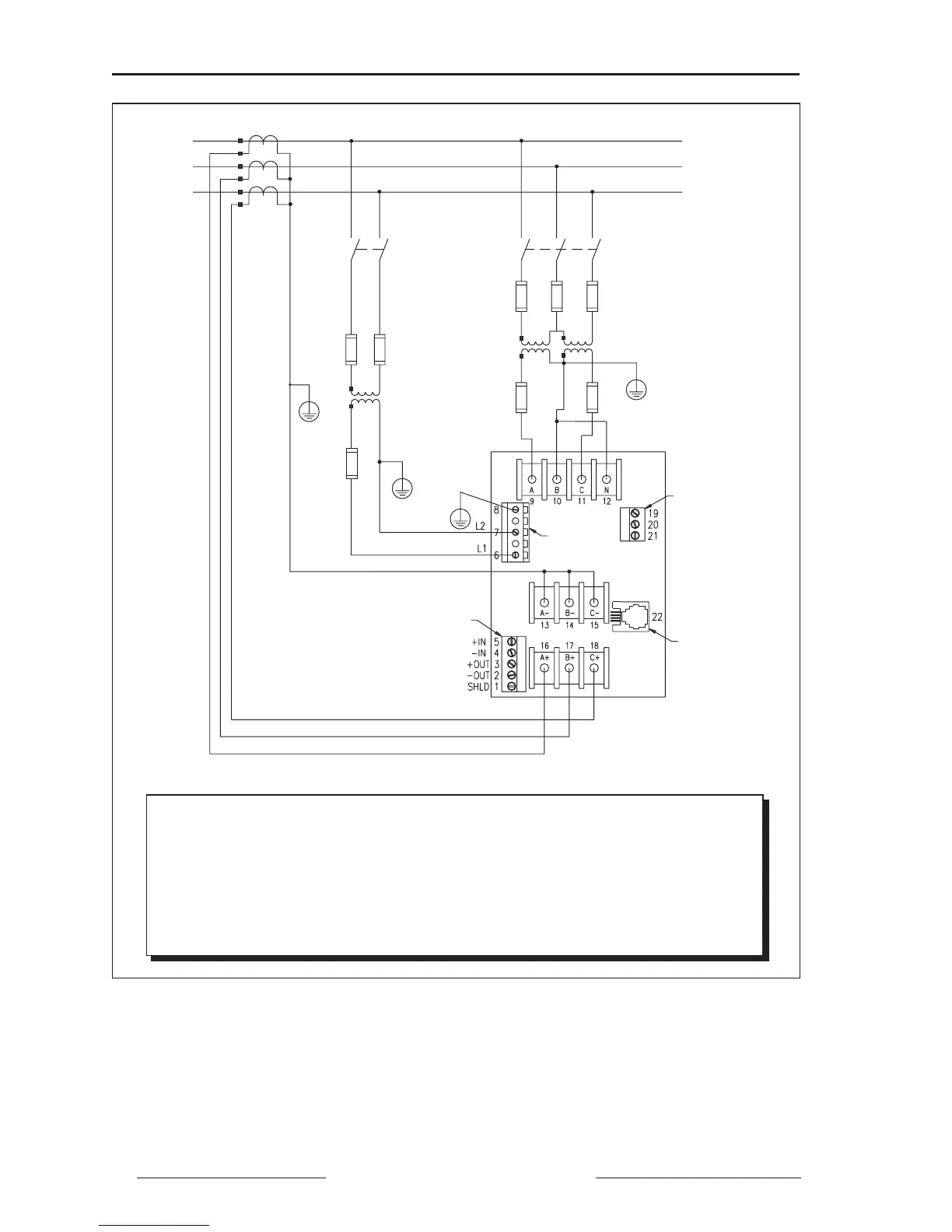

Figure 5-5: 3-phase, 3-wire delta with 2 PTs and 3 CTs

Note: Control power can be drawn from fused voltage inputs L-L or an external

source. See page 22 for CPT and fuse recommendations.

Control power range: L1-L2 90–600 Vrms

90–300 Vdc

Installation Category II
