UPS with Bypass Electrical Installation
27
Powerware
®
9170
+
UPS User’s Guide S Rev B www.powerware.com
5. Install the conduit adapters. AC input and AC output conductors
must be run through separate conduits. UPS output circuits
must be installed in dedicated conduit systems and not shared
with other electrical circuits.
6. Find the terminal strip inside the bypass switch cabinet. Using
the label on the back of the bypass switch access panel and the
proper installation wiring diagram, make the terminal strip
connections and tighten all connections as specified in Table 2
on page 22. Use copper wire that is the appropriate size for the
current draw. Figure 16 shows a sample label.

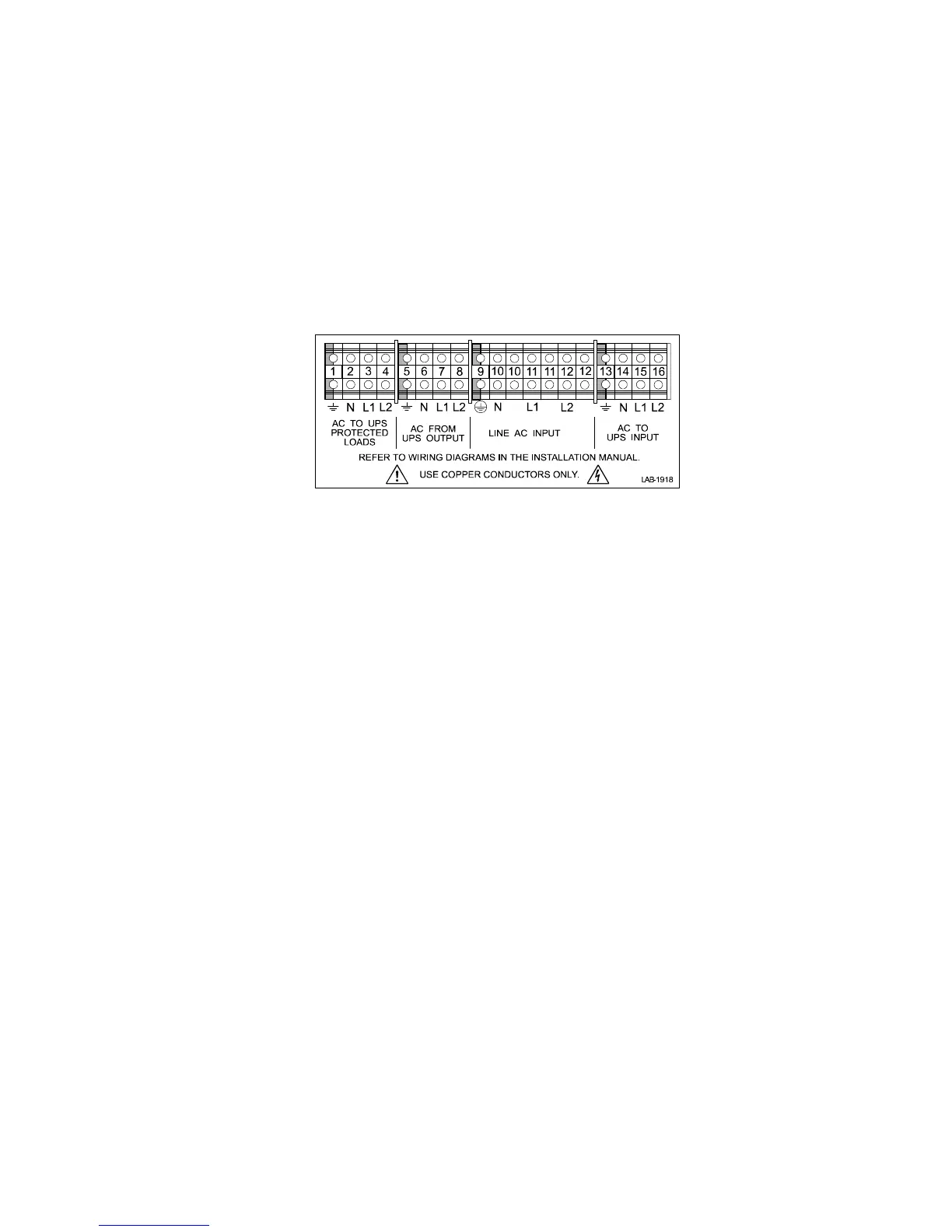

Figure 16. Bypass Switch Wiring Label
