UPS with Bypass Electrical Installation
35
Powerware
®
9170
+
UPS User’s Guide S Rev B www.powerware.com
S 220 Input, 220 Output
S 230 Input, 230 Output
S 240 Input, 240 Output
NOTE 2
NOTE 1
NOTE 3 NOTE 2
NOTE 3
NOTE 3
NOTE 3 NOTE 7
NOTE 4
NOTE 5
NOTE 7
NOTE 6

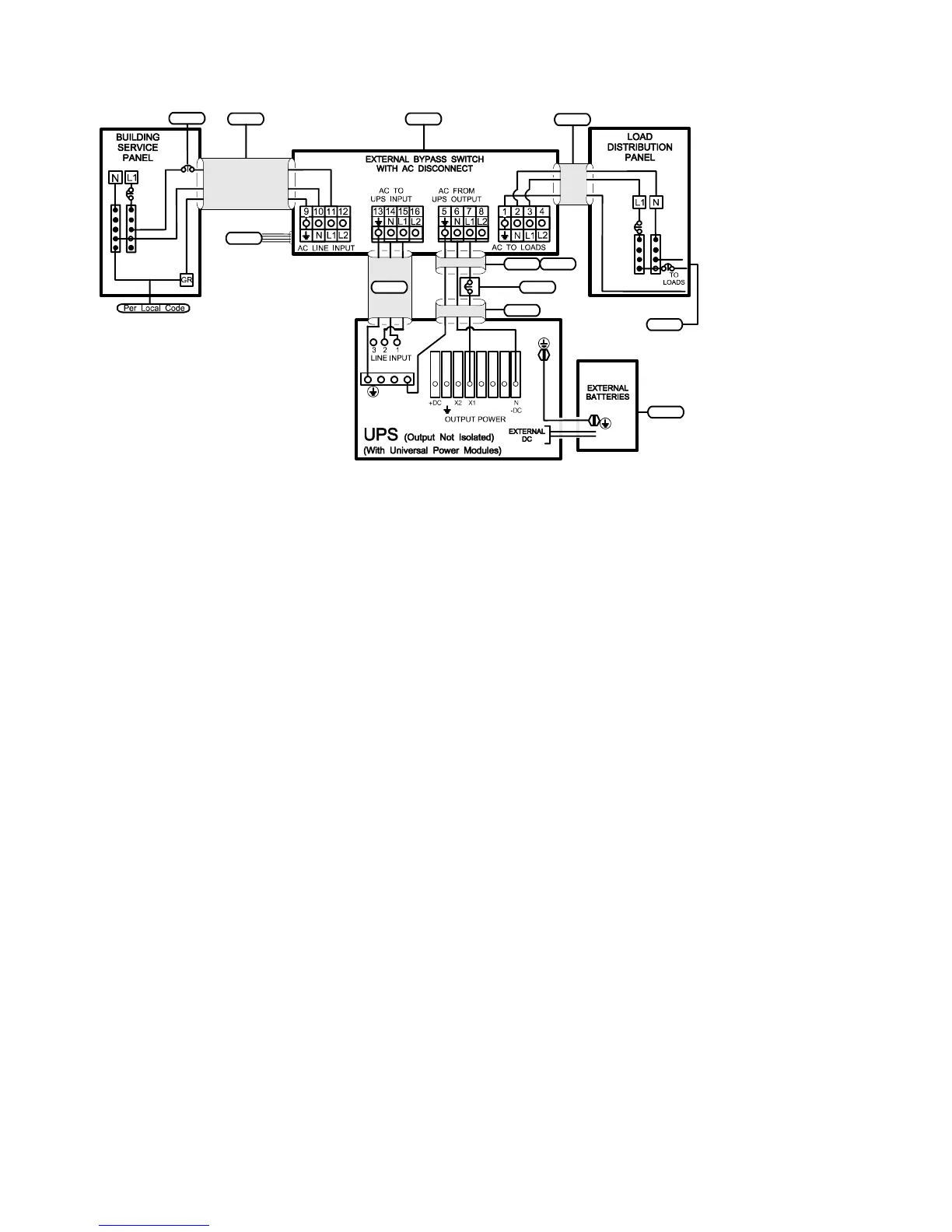

Figure 24. External Bypass Switch (L1, N), Non -Isolated Output, Universal Power Modules
