Powtran PI500A Series User Manual

Appendix V
101

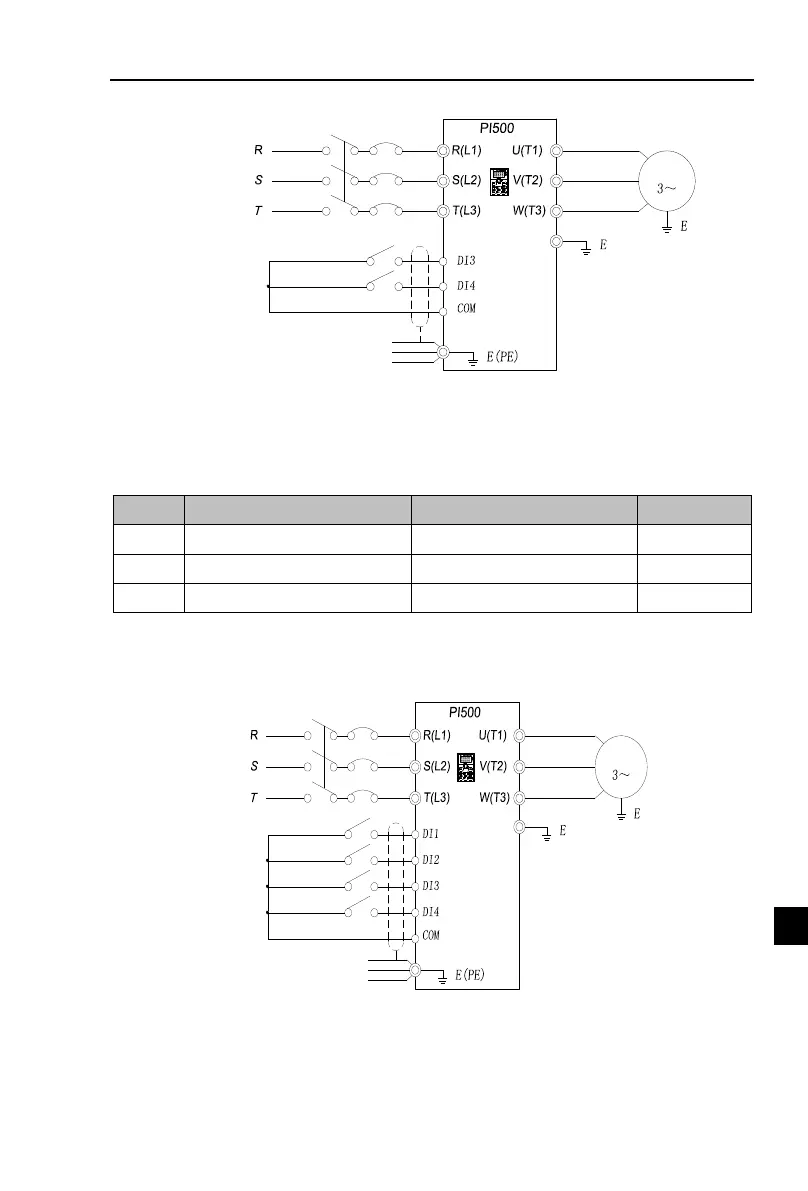

Appendix V
Three phase input power supply
380V 50/60Hz
%
Circuit breaker
Motor
M
FWD point motion/STOP
REV point motion/STOP
Terminal control to control positive and reverse point movement
V-4-2 Connection:
Control terminal DI3 corresponds to jog command, control terminal DI4
corresponds to Jog command.
V-4-3 Parameter setting：
No.
Code
Parameter name
Setting range
F0.11
Command source selection
Terminal block control (LED on)
1
F1.02
DI3 terminal function selection
Forward JOG(FJOG)
4
F1.03
DI4 terminal function selection
Reverse JOG(RJOG)
5
V-5 Multi-speed running
V-5-1 electrical diagram
S1
S2
S3
S4
380V 50/60Hz
Three phase input power supply
Circuit breaker
%
Motor
M
FWD/STOP
First segment speed
Second segment speed
Third segment speed
Multi segment speed operation
V-5-2 Connection：
The control terminals DI1 and COM are short-circuited and run forward
command (0 segment speed setting 0X). DI2, DI3 and DI4 correspond to 3-segment speed short to
COM and 100% parameter value corresponds to 50HZ.(Take the three-stage speed as an example,
