Powtran PI500A Series User Manual

Appendix V
107
Appendix V
PID stop
V-12．frequency reference mode(external potentiometer,
keyboard encoder) switching

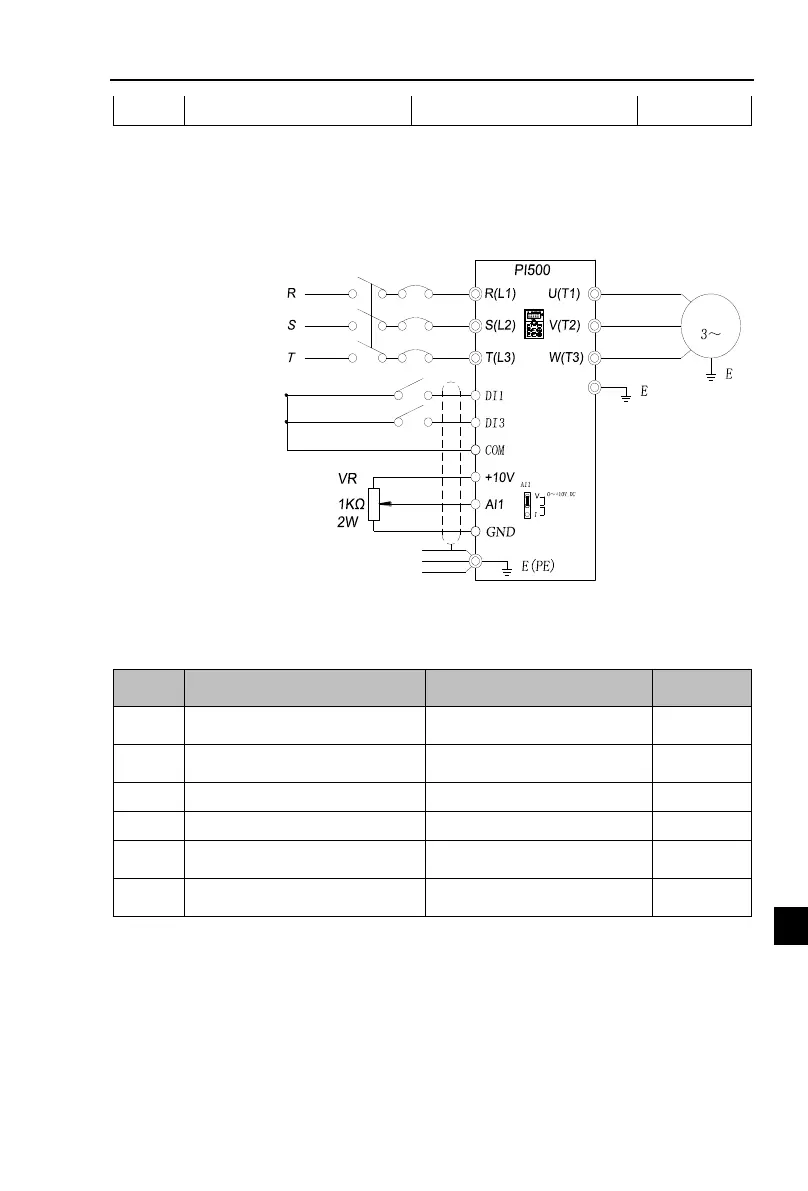

V-12-1 electrical diagram：
(Default)
380V 50/60Hz
Three phase input power supply
Circuit breaker
FWD/STOP
Primary and secondary switching of frequency source
Motor
M
%
Frequency given mode
(external potentiometer, keyboard encoder) switching
V-12-2 Parameter setting
No.
Code
Parameter name
Setting
range
F0.03
Frequency source master
setting
Panel potentiometer setting
4
F0.04
Frequency source auxiliary
setting
AI1analog quantity setting
2
F0.11
Command source selection
Terminal block control (LED on)
1
F1.00
DI1 terminal function selection
Forward run (FWD)
1
F1.02
DI3 terminal function selection
Frequency source
switching
18
F0.07
Frequency source
superimposed selection
frequency reference main /
auxiliary switching
02
Note: DI3 and COM connected to an external potentiometer speed control, disconnect the panel
potentiometer speed.
