Powtran PI500A Series User Manual

16
第
十
章
Chapter 4
Chapter 4 Installation and commissioning

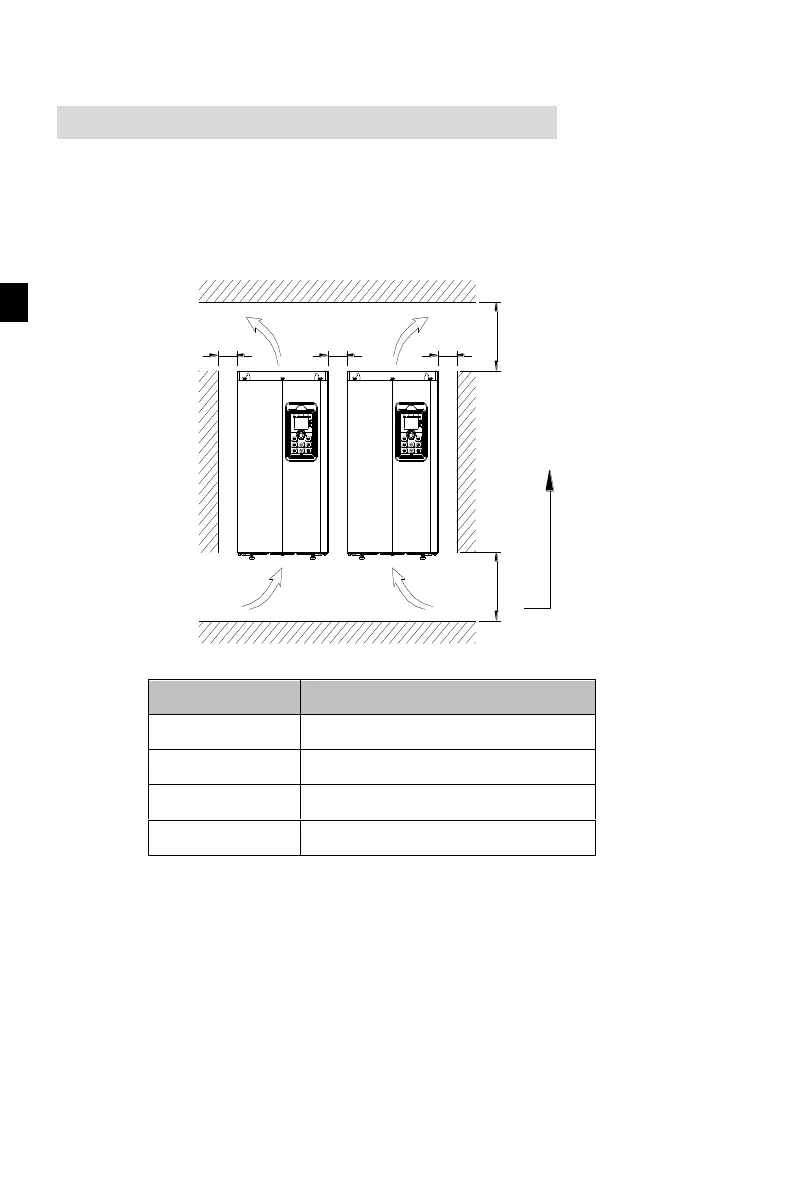

4-1.Installation direction and space
PI500 series inverter according to different power rating, the requirements of around
installation reserve space is different, specifically as shown below:
AA
B B B
Cool wind
Hot wind
Mounted
vertically
upwards
Power rating
Dimension requirement
0.75～11kW
A≥100mm；B≥10mm
15～22kW
A≥200mm；B≥10mm
30～75kW
A≥200mm；B≥50mm
93～400kW
A≥300mm；B≥50mm
Figure 4-1：PI500 Series Each power level installation space requirement
PI500 Series frequency inverter heat radiator circulated from bottom to top, when more than
one inverter work together, usually mounted side by side. In the case of the need to install them by
upper and lower rows, due to the heat of the lower inverters rising to the upper equipment, fault
maybe caused, heat insulation deflector and other objects to be installed.
