Powtran PI500A Series User Manual

Appendix V
103
Appendix V
GND terminal, note that the direction of potentiometer wiring, clockwise to the maximum
corresponding maximum frequency, counterclockwise twisted to the minimum corresponding 0Hz.
V-6-3 Parameter setting
No.
Code
Parameter name
Setting range
F0.03
Frequency source master setting
Analog AI1 setting
2
F0.11
Command source selection
Terminal block control (LED on)
1
F1.00
DI1 terminal function selection
Forward run (FWD)
1
V-7 Keyboard potentiometer speed
Parameter setting:
No.
Code
Parameter name
Setting range
F0.03
Frequency source master setting
Panel potentiometer setting
4
F1.42
Keyboard potentiometer X2
0～100.00%
1.00
Note: F1.42 is used to adjust the rate of change of panel potentiometer rotation frequency. The
smaller this value is, the more sensitive the panel potentiometer rotation frequency changes.

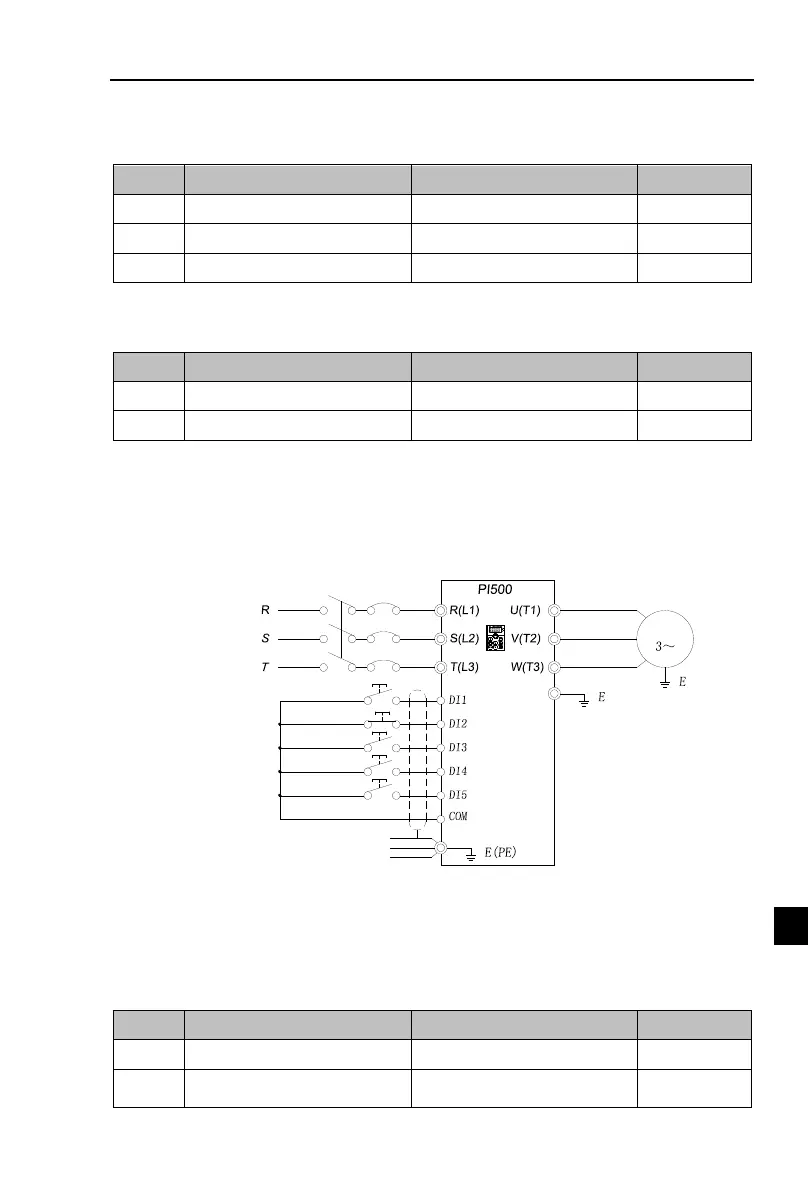

V-8. Rise / Fall Control Speed
V-8-1 electrical diagram：
S1
S2
S3
S4
S5
Circuit breaker
380V 50/60Hz
Three phase input power supply
Motor
M
%
FWD
STOP
REV
Rise
Rise or fall control speed control
Fall
V-8-2 Connection:
Three-wire control mode 1, forward command Corresponding terminal DI1,
stop DI2, reverse DI3, DI4 and DI5, respectively, with the corresponding COM short rise and fall
command..
V-8-3 Parameter setting：
No.
Code
Parameter name
Setting range
F0.11
Command source selection
Terminal block control (LED on)
1
F0.03
Frequency source master setting
UP/DOWN can be modified,
power-down without memory
1
