Powtran PI500A Series User Manual

Chapter 3 Keyboard
14
Chapter 3
3-5.Examples of parameter settings
3-5-1.Instructions on viewing and modifying function code
PI500 inverter’s operation pane is three levels menu for parameter setting etc.Three levels:
function parameter group (Level 1)→function code(level 2)→function code setting(level 3). The
operation is as following:
Shutdown parameter display
PRG
Change parameter group
PRG
First-level menu display
ENTER
Change function parameter selection
PRG
ENTER
Change function parameter value
PRG
ENTER
Power-on
Second-level menu display
Third-level menu display

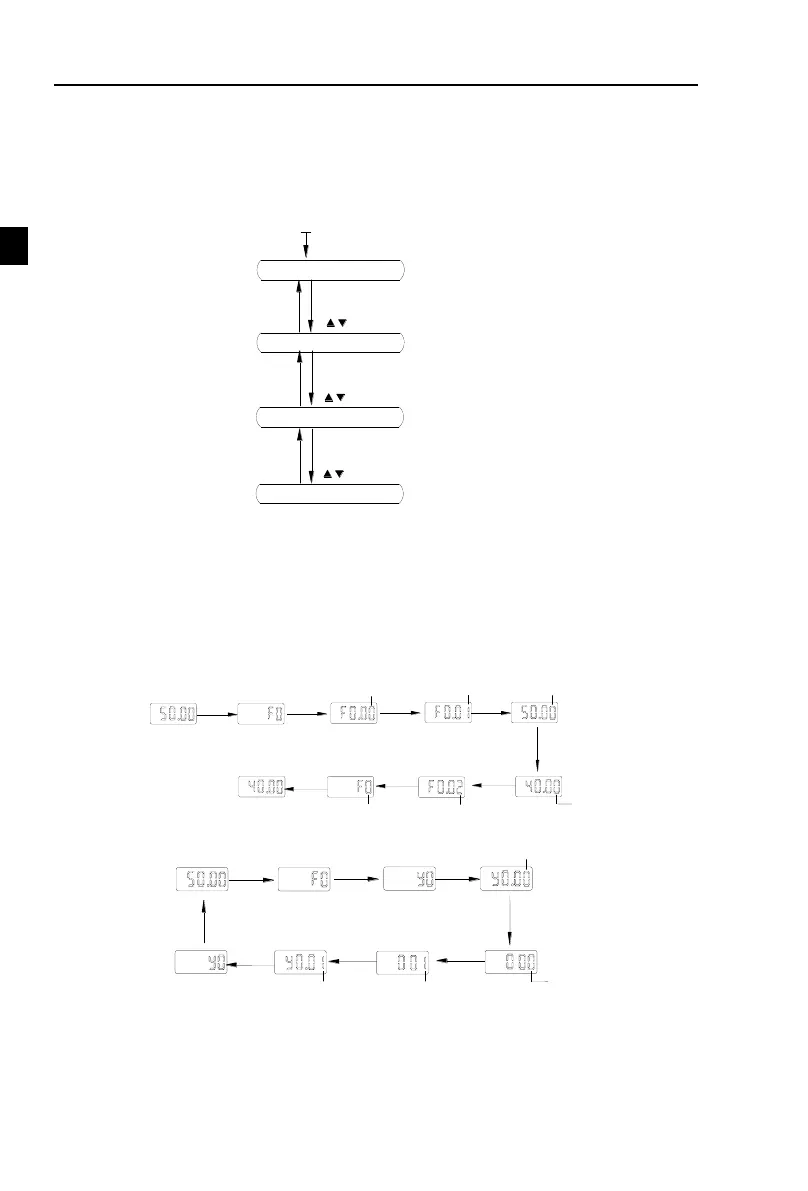

Figure 3-2:Operation processes
Description: Back to the level 2 menu from level 3 menu by PRG key or ENTER key in the
level 3 operation status. The differences between the two keys : ENTER will be back to the level 2
menu and save parameter setting before back, and transfer to the next function code automatically;
PRG will be back to the level 2 menu directly, not save parameter setting, then back to current
function code.
Example 1 Frequency setting to modify parameters
Set F0.01 from 50.00Hz to 40.00Hz
Press PRG
Press ENTER
Press ▲
Press ▼
Press ENTER
Press PRG
Press PRG
Press ENTER
Flicker
Flicker
Flicker
Flicker
Flicker
Flicker
Example 2 :Restore factory settings
Press ▲
Press PRG
Press ENTER
Flicker
Flicker
Flicker
Flicker
Press PRG
Press ENTER
Press ▲
Press ENTER
Press PRG
Without twinkling parameter position, the function code can not be modified in the level 3
menu. The reason maybe as following:
1) The function code can not be modified itself, eg: actual detecting parameters, running
record parameters.
2) The function code can not be modified in the running status. It must be modified in the stop
status.
