Powtran PI500A Series User Manual

Chapter 3 Keyboard
13
Chapter 3

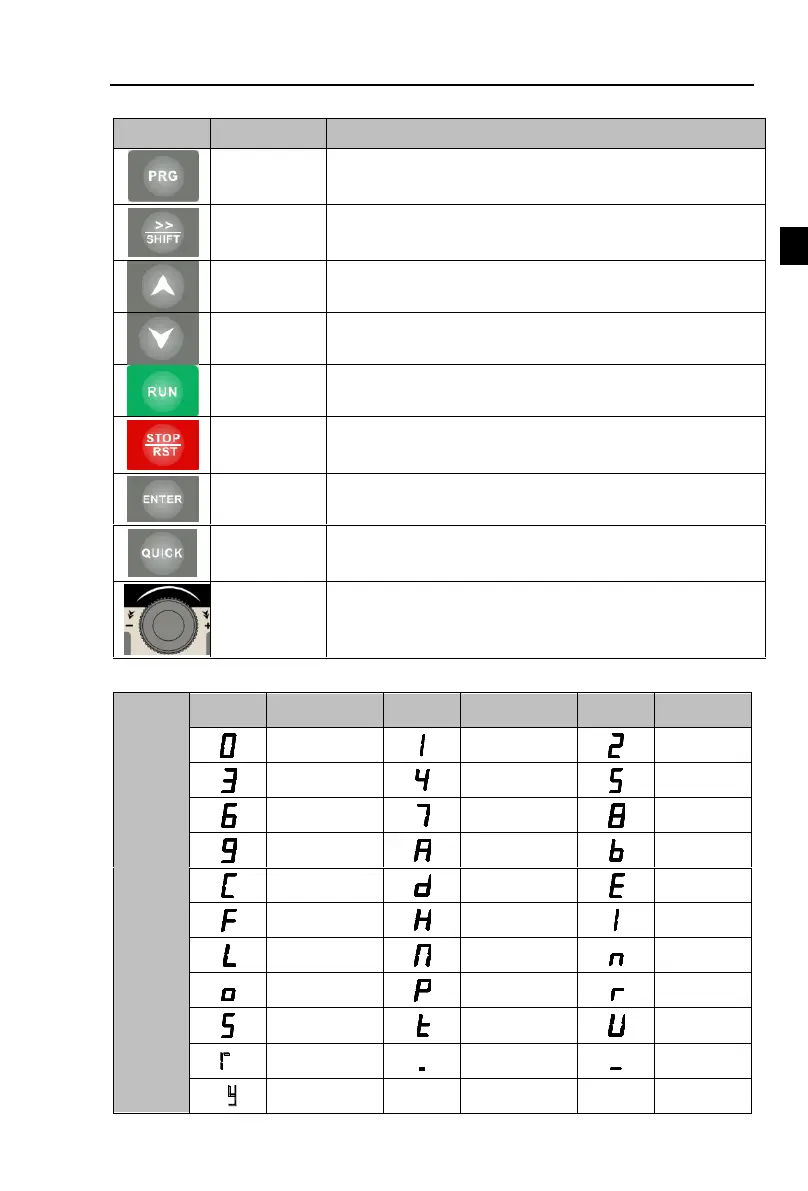

3-3.Description of operation panel keys
Sign
Name
Function
Parameter
Setting/Esc
Key
* Enter into the modified status of main menu
* Esc from functional parameter modification
* Esc submenu or functional menu to status menu
Shift Key
*Choose displayed parameter circularly under running or stop
interface; choose parameter’s modified position when modify
parameter
Increasing Key
Parameter or function number increasing,set by parameter F6.18.
Decreasing
key
Parameter or function number decreasing, set by parameter
F6.19.
Running key
For starting running in the mode of keyboard control status
Stop/Reset
Key
*For stopping running in the running status; for resetting the
operation in fault alarm status. The function of the key is subject
to F6.00
Enter key
Enter into levels of menu screen confirm setting
Quick
multifunction
key
This key function is determined by the function code F6.21.
Keyboard
encoder
* In query
status
, function parameter increasing or decreasing
* In modified status, the function parameter or modified
position
increasing or decreasing.
* In monitoring status, frequency setting increasing or decreasing
3-4.Keyboard display letters and numbers correspondence table
Digital
display
area
Display
letters
Corresponding
letters
Display
letters
Corresponding
letters
Display
letters
Correspondi
ng letters
0
1
2
3
4
5
6
7
8
9
A
B
C
d
E
F
H
I
L
N
n
o
P
r
S
t
U
T
.
-
y
