Powtran PI500A Series User Manual

Chapter 4 Installation and commissioning
19
Chapter 4
4-3.Main circuit terminal

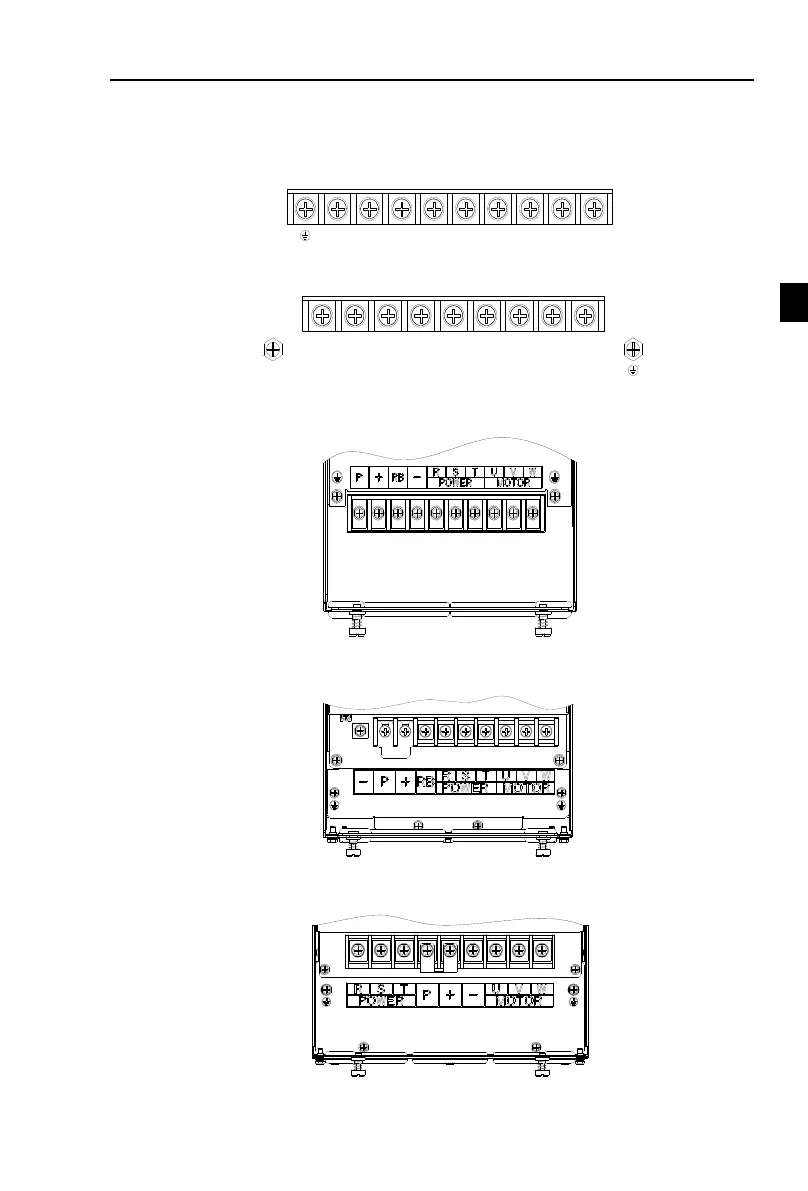

4-3-1.Main circuit terminal arrangement
1.0.75～4kW G3 main circuit terminal
R S T + RB - U V W
Figure 4-4：0.75～4kW G3 main circuit terminal
2.5.5～11kW G3 main circuit terminal
R S T+RB
-
U V WP
Figure 4-5：5.5～11kW G3 main circuit terminal
3.15kW G3 main circuit terminal
Figure 4-6：11~15kW G3 main circuit terminal
4.18.5~22kW G3 main circuit terminal
Figure 4-7：18.5~22kW G3 main circuit terminal
5.30~37kW G3 main circuit terminal
Figure 4-8：30~37kW G3 main circuit terminal
