Chapter 1.Inspection and safety precautions
Powtran
frequency inverters have been tested and inspected before leaving factory. After
purchasing, please check if its package is damaged due to careless transportation, and if the
specifications and model of the product are consistent with your order requirements. For any
problem, please contact your local authorized
Powtran
dealer or directly contact this company.
1-1.Inspection after unpacking
※ Check if that packing container contains this unit, one manual and one warranty card.
※ Check the nameplate on the side of the frequency inverter to ensure that the product you
have received is right the one you ordered.

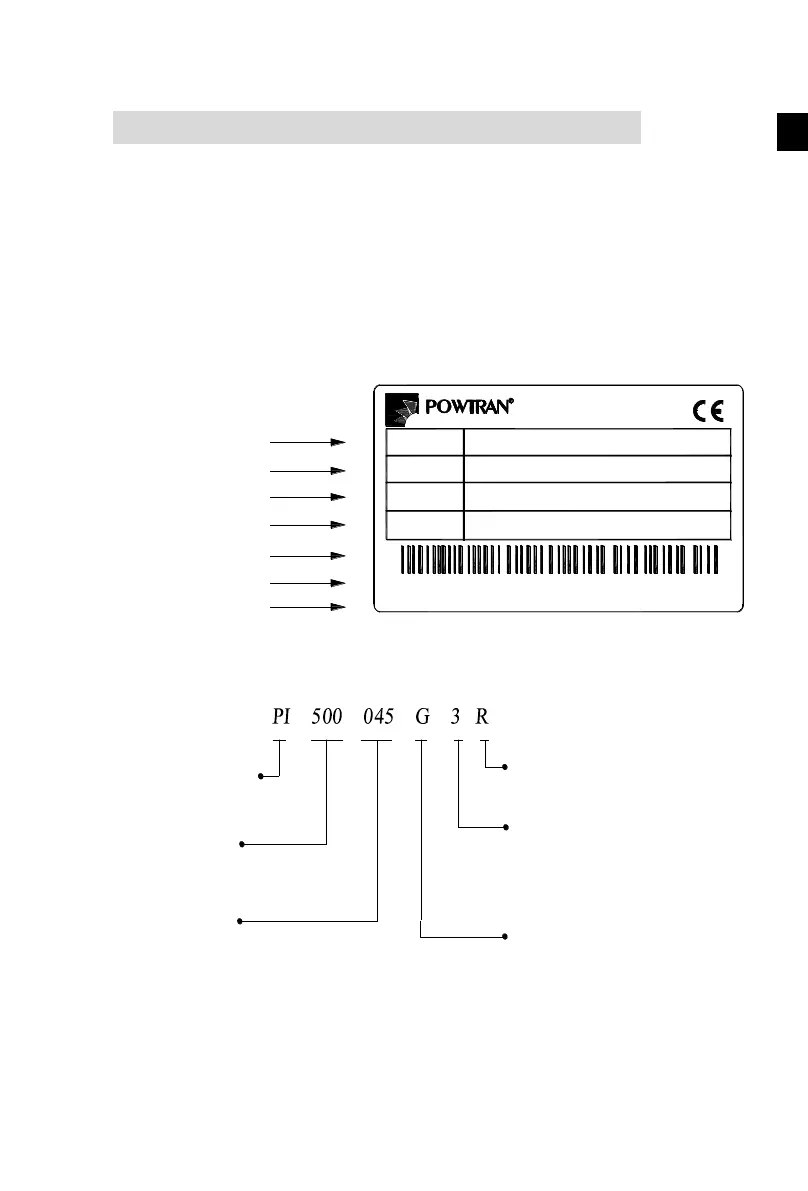

1-1-1.Instructions on nameplate
*Input Source Spec.
*Output Power Spec.
*Production Sequence
Number
*POWTRAN
Inverter model
POWER
INPUT
OUTPUT
DALIAN POWTRAN TECHNOLOGY CO.,LTD.
MODEL
45kW
AC 3PH 380V(-15%) ~440V(+10%) 50Hz/60Hz
AC 3PH 0V~Vin 90A 0~400Hz
PI500 045G3
ZPB1A8888888
*Output Spec.
*Bar code
*Production Address
Figure 1-1:Nameplate Description
1-1-2.Model designation
POWTRAN Inverter
Rated output capacity
045: 45kW
132: 132kW
Series Code
PI500 Series
Input Voltage Level
1: Single-phase 220V
2: Three-phase 220V
3: Three-phase 380V
4: Three-phase 480V
6: Three-phase 690V
Code with DC reactance
R: with DC reactor
(don't write without DC reactance)
Function code
F: Light load
G: Standard load
Figure 1-2:Model Description
