Appendix V
106
Appendix V
+
-
P
380V 50/60Hz
Three phase input power supply
Circuit breaker
Motor
M
%
FWD/STOP
REV/STOP

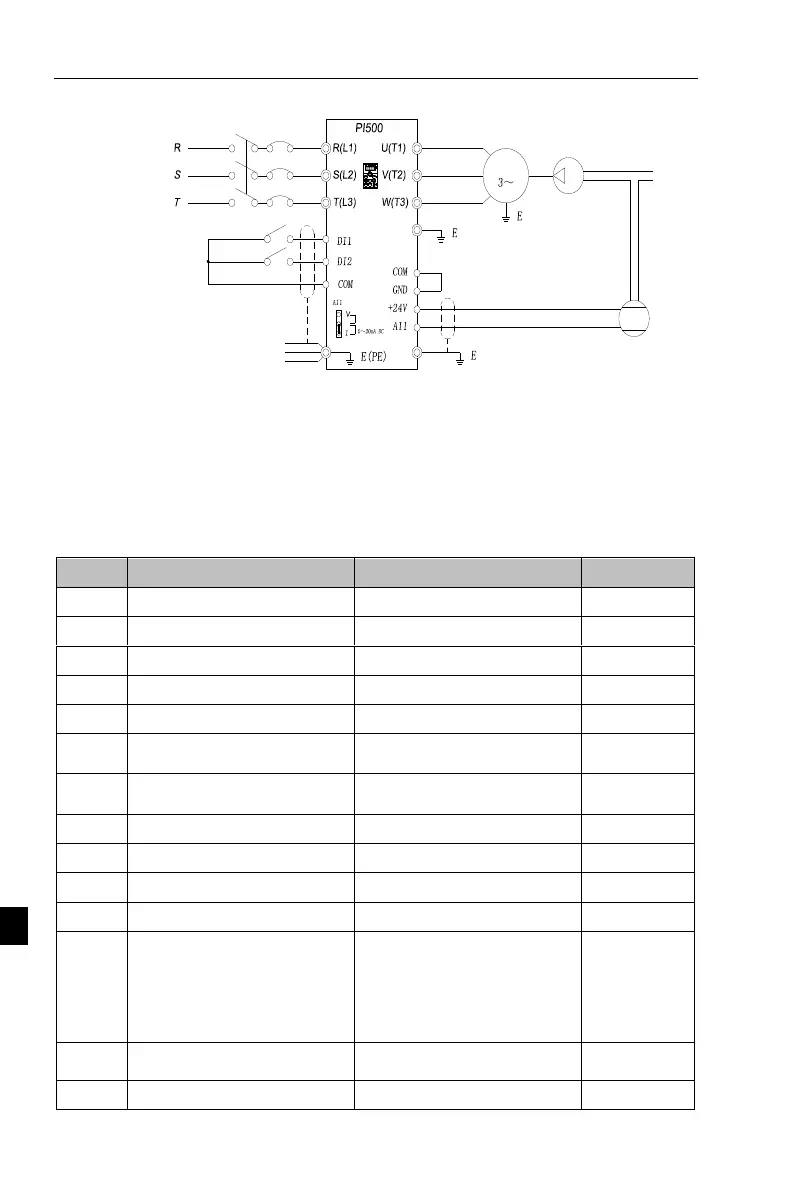

Constant pressure control of air compressor
Two wire pressure sensor
4 20mA feedback
Air compressor
V-11-2 Connection:
Short circuit between COM and GND;
+ 24V, AI1 indirect pressure sensor feedback 4 ~ 20mA current signal;
DI1, COM indirect "forward / stop" signal, DI2, COM connected to "fault reset" signal;
AI1 jumper cap shorted to I end.
V-11-3 Parameter setting
No.
Code
Parameter name
Setting range
F0.03
Frequency source master setting
PID control setting
8
F0.11
Command source selection
Terminal block control (LED on)
1
F0.13
Acceleration time 1
0.0s6500s
50.0s
F0.14
Deceleration time 1
0.0s6500s
50.0s
F0.18
Carrier Frequency
0.5kHz16.0 kHz
4.0 kHz
F0.21
Upper limit frequency
0.00maximum frequency
(F0.19)
48.00Hz
F0.23
Upper limit frequency offset
0.00Upper limit Frequency
(F0.21)
25.00Hz
F1.00
DI1 terminal function selection
Forward run (FWD)
1
F1.01
DI2 terminal function selection
Fault reset
9
F1.12
Minimum input for AIC1
0.5V corresponds to 1mA
2.00V
F3.07
Stop mode
Free stop
1
E2.01
PID keyboard reference
0.0%-100.0%
Set the desired
pressure value
percentage based
on the pressure
value actually
required
E2.29
PID automatic deceleration
frequency option
valid
1
E2.27
Computing status after
PID stop with computing
1
