Powtran PI500A Series User Manual

Chapter 4 Installation and commissioning
21
Chapter 4

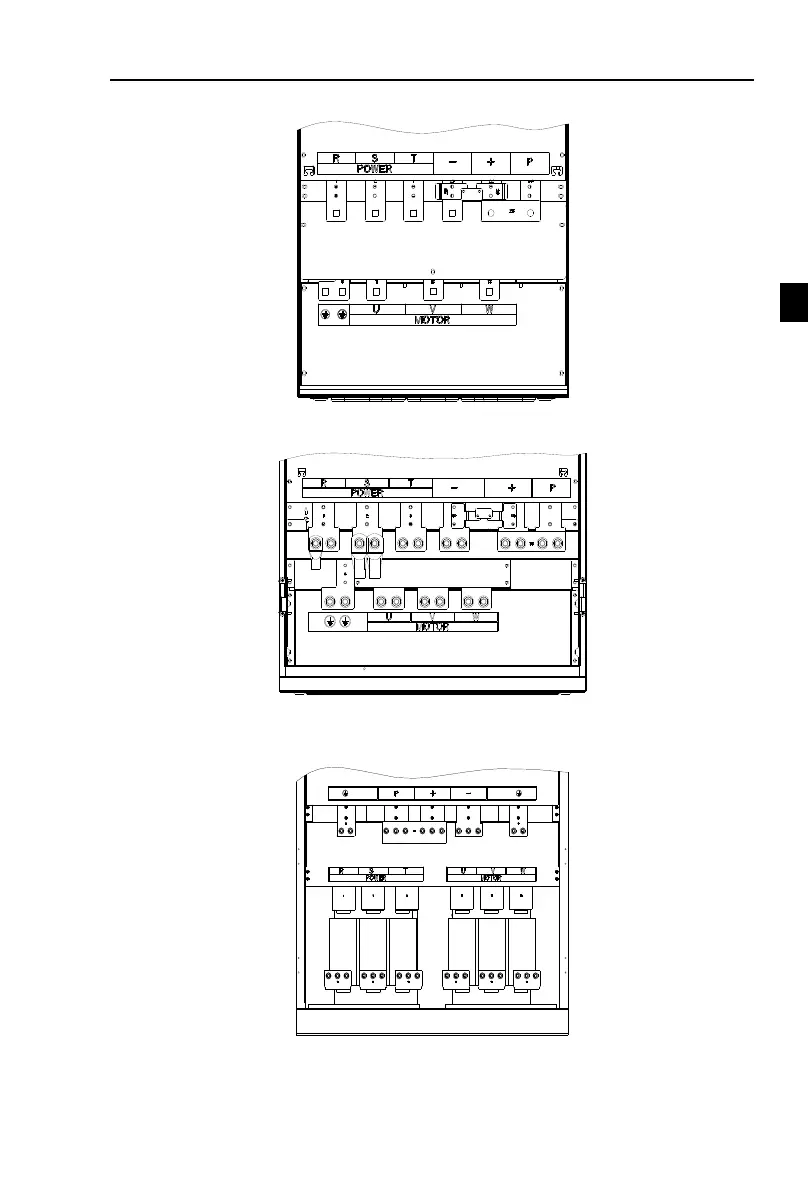

9.160～220kW G3 main circuit terminal
Figure 4-12：160～220kW G3 main circuit terminal
10.250～400kW G3 main circuit terminal
Figure 4-13：250～400kW G3 main circuit terminal
11.450~630kW G3 main circuit terminal
Figure 4-14：450~630kW G3 main circuit terminal
Note: P/+ standard is circuit standard configuration is for the shorted state; if external DC reactor
is connected, firstly disconnect and then reconnect.
