Mounting Dimensions

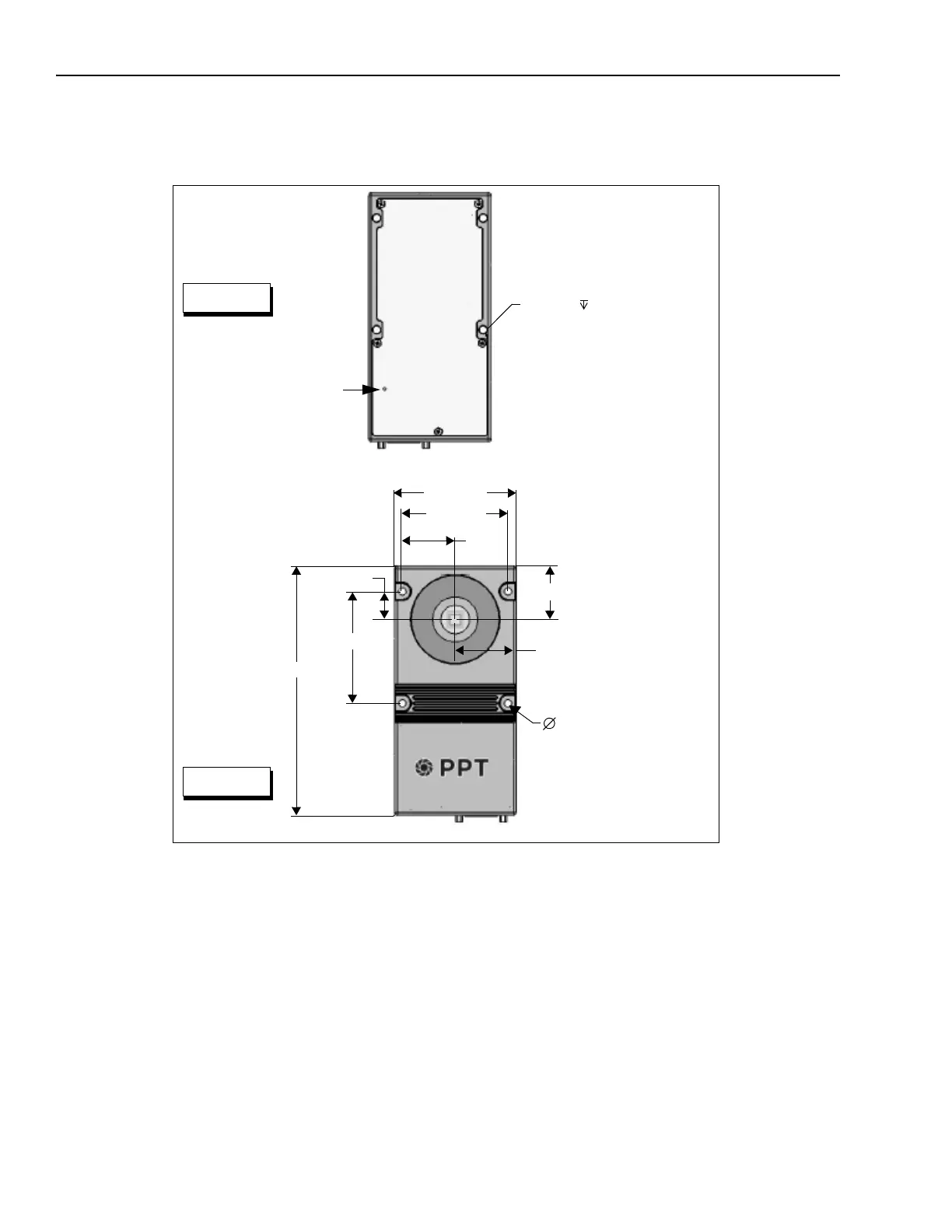

Here are the front and rear camera mounting dimensions. The side dimensions are shown on the next page.
Front
UNITS: inch [mm.]
2.68 (68)
Camera Reset
Button
5.50 (139.7)
Rear
M5/10-32 10mm (x4)*
2.32 (59)
1.16
[29.5]
1.34 (34)
1.18 (30)
.62(15.7)
2.46 (62.5)
.17 (4.2) (x4)*
*Through hole from front side to
allow use of fasteners 4 mm or
less in diameter, M5 or 10-32
threaded on opposite (back)
side.
(for mounting optional
dust cover adapter)
