Basic Hardware Components PPT VISION, Inc.
3-10 A-Series Hardware Guide

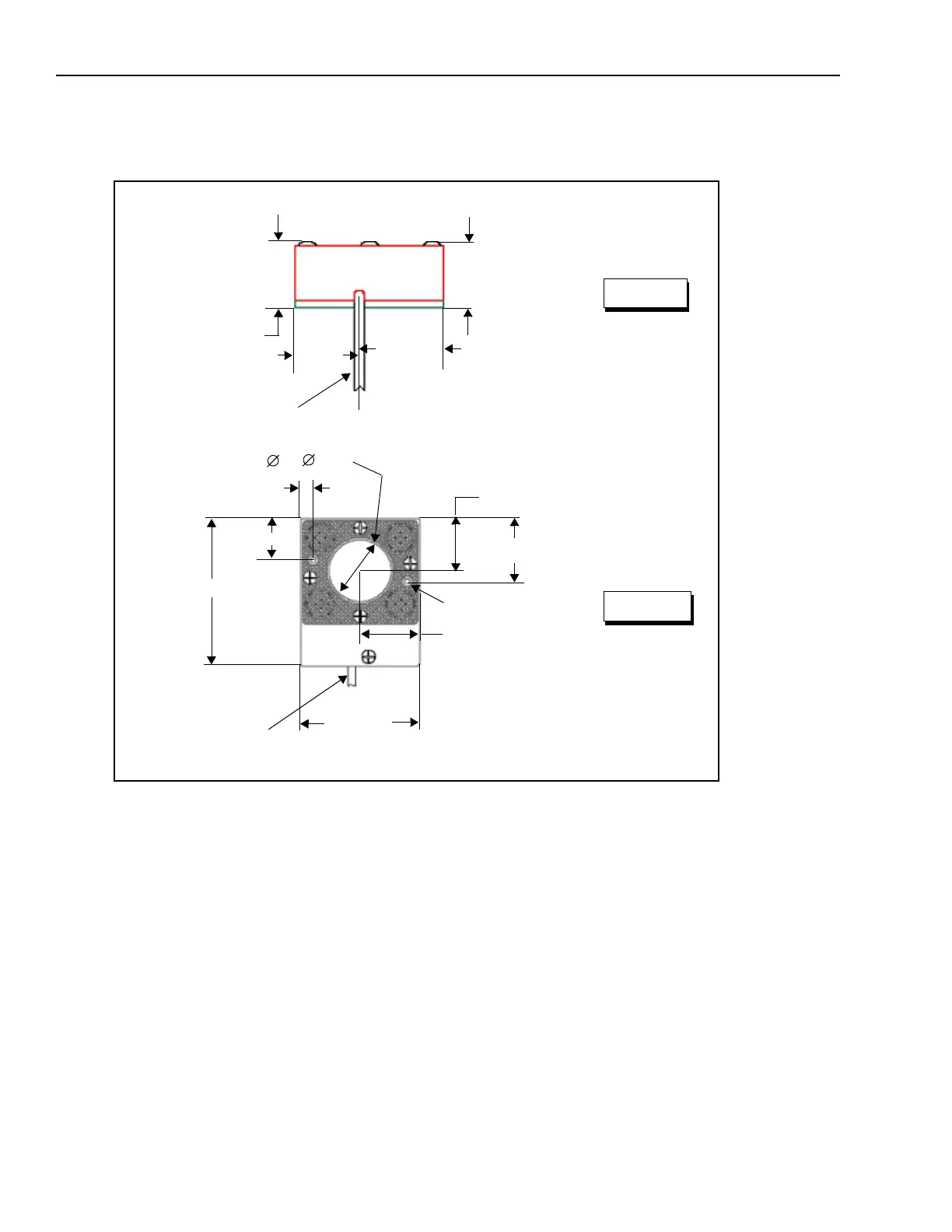

RLD3 LED Ringlight dimensions
Here are the RLD3 LED ringlight mounting dimensions.
RLD3 LED Ringlight Adapter
To mount the RLD3 LED ringlight to the A-Series camera, use the optional ringlight adapter kit (PPT Part # 651-0131).
The kit includes the following parts:
• One mounting adapter (PPT Part # 381-1293)
• Two M3 x 6mm socket head mounting screws for mounting the adapter to the ringlight (PPT Part # 354-3005)
UNITS: inch (mm)
Connection
Cable
1.4 (35.5)
Bottom
1.52 (38.76)
1.18 (30)
1.34 (34)
M3 x 6 MM SHCS for
mounting (2 places)
Front
Connection
Cable
3.35 (85)
2.68 (68)
1.15 (29.2)
1.2 (30.6)
1.12 (28.5)
.94 (23.9)
.29 (7.4)
1.43 (36.3)
To Next Page
