PPT LED Ringlight Wiring
The ringlight cable connector pinout is shown in this table.

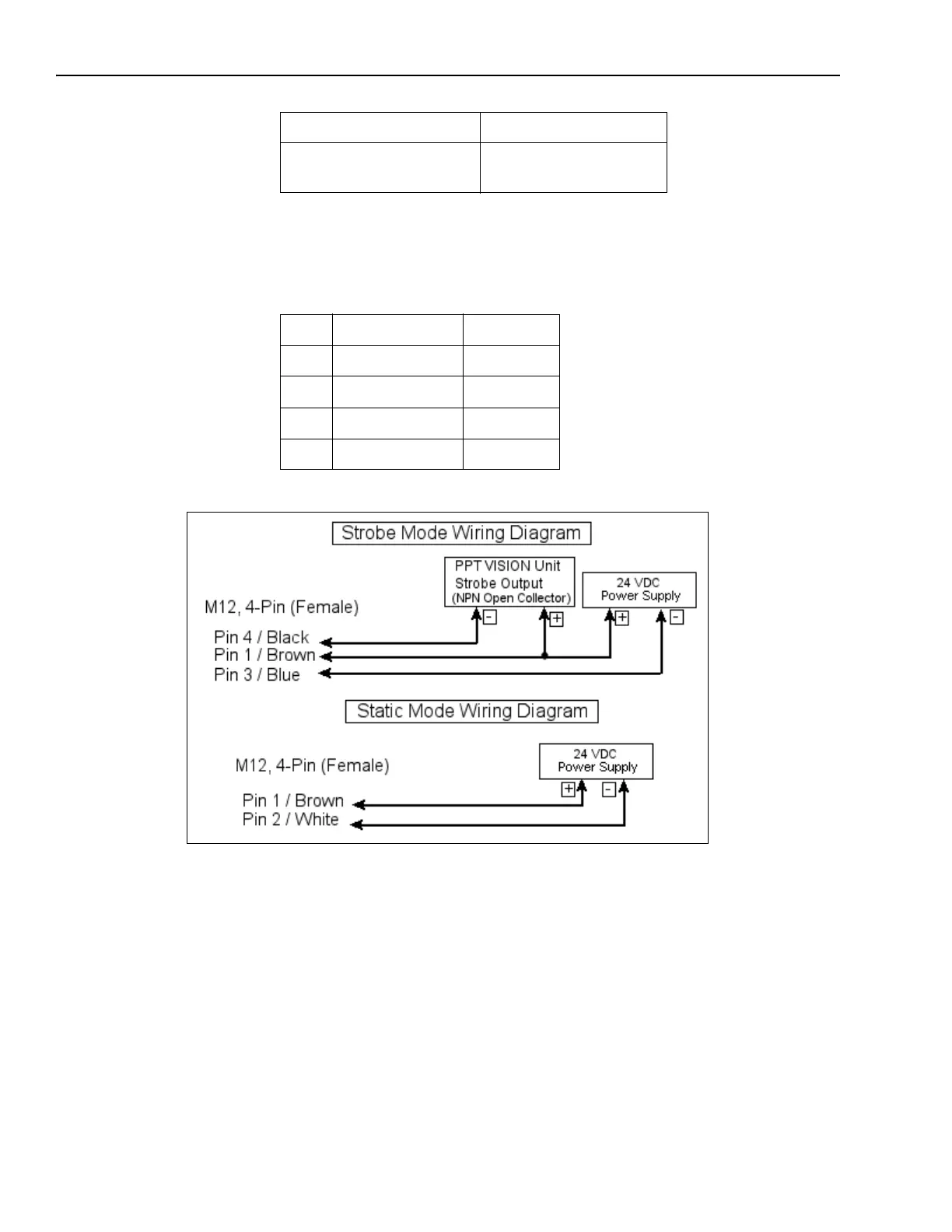

These diagrams show how to connect the LED ringlight for static or strobe mode.
Trigger Input Pulse Width 25 - 500 microseconds
Maximum Trigger Rate 0 - 60 HZ, (3% duty
cycle)
Pin Signal Wire Color
1+24 VDC Brown
2 Static 0 VDC White
3 Strobe 0 VDC Blue
4 Strobe Trigger + Black
