PPT Vision A-Series - PPT LED Ringlight Dimensions; PPT LED Ringlight Adapter

PPT VISION, Inc. Basic Hardware Components
A-Series Hardware Guide
3-5

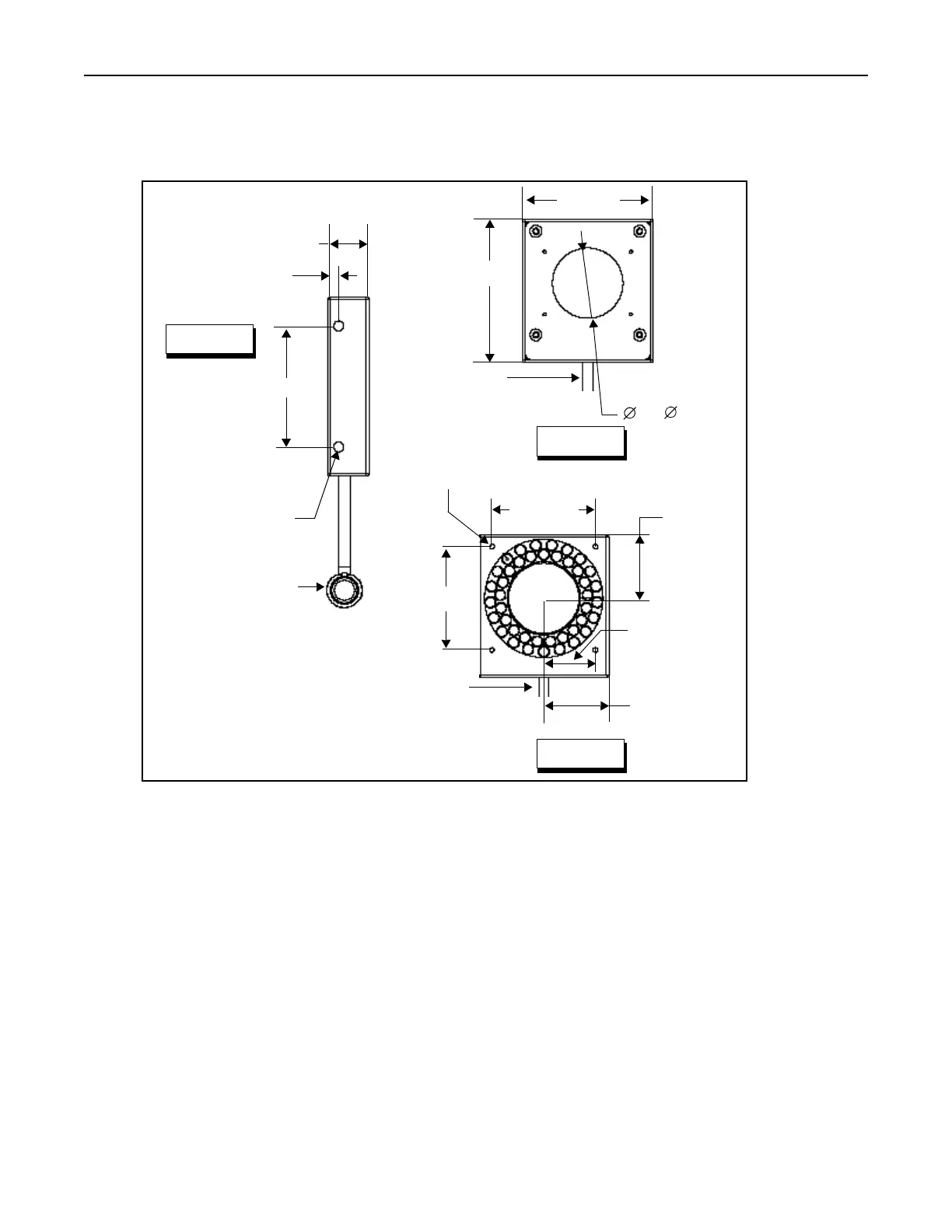

PPT LED Ringlight dimensions
Here are the LED ringlight mounting dimensions.
PPT LED Ringlight Adapter
To mount the LED ringlight to the A-Series camera, use the optional ringlight adapter kit (PPT Part # 651-0131). The kit
includes the following parts:
• One mounting adapter (PPT Part # 381-1293)
• Four M2 x 6mm screws for mounting the adapter to the ringlight (PPT Part # 354-2022)
UNITS: inch (mm)
2.68 (68)
Connection
Cable
1.45 (36.83)
Rear
2.95 (75)
50.80 (2.00)
1.32 (33.5)
1.34 (34)
0.19 (4.71)
2X M5x0.8 X 5mm Deep
or 10-32 X 0.20” Deep
Both Sides
Front
Connection
Cable
0.68 (17.27)
Connection
Cable
Side
1.065 (27.05)
2.13 (54.1)
2.13 (54.1)
4X M3x0.5 X 5mm Deep
