Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual
11
Installation
There is no need to remove the meter from its case to
complete the installation, wiring, and setup of the me-
ter for most applications.
PD6606 and PD6608 installation must be
performed in accordance with Control Drawing
LIM6600-2 in order to meet agency approval
ratings.
Unpacking
Remove the meter from box. Inspect the packaging
and contents for damage. Report damages, if any,
to the carrier.
If any part is missing or the meter malfunctions,
please contact your supplier or the factory for
assistance.
Panel Mounting Instructions
• Prepare a standard 1/8 DIN panel cutout – 3.622"
x 1.772" (92 mm x 45 mm). Refer to Figure 1 and
Figure 2 below, for more details.
• Clearance: allow at least 4.0" (102 mm) behind
the panel for wiring.
• Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm).
Recommended minimum panel thickness to
maintain Type 4X rating: 0.06" (1.5 mm) steel
panel, 0.16" (4.1 mm) plastic panel.
• Remove the two mounting brackets provided with
the meter (back-off the two screws so that there is
¼" (6.4 mm) or less through the bracket. Slide the
bracket toward the front of the case and remove).
• Insert meter into the panel cutout.
• Install mounting brackets and tighten the screws
against the panel. To achieve a proper seal,
tighten the mounting bracket screws evenly until
meter is snug to the panel along its short side.
DO NOT OVER TIGHTEN, as the rear of the
panel may be damaged.

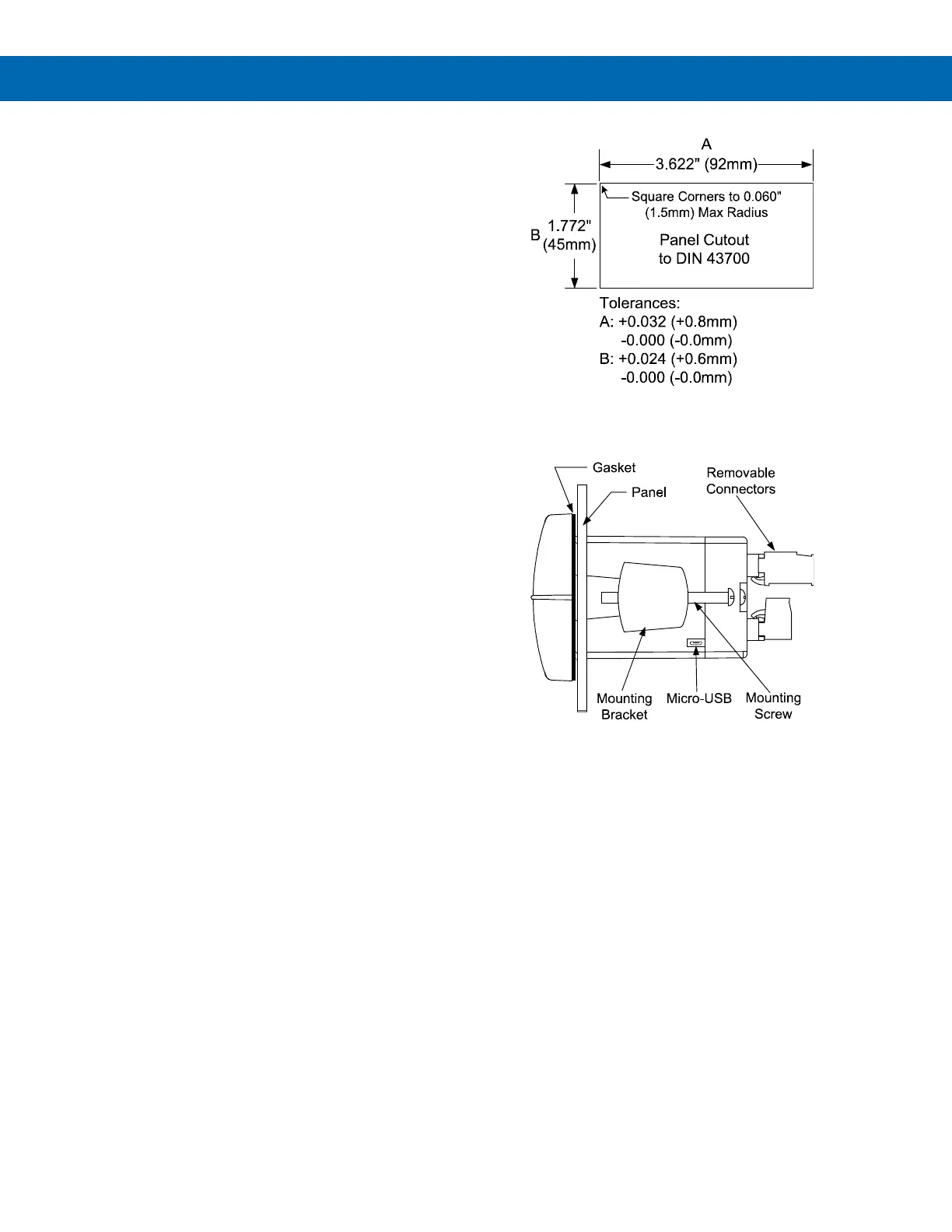

Figure 1. 1/8 DIN Panel Cutout Dimensions
Figure 2. Panel Mounting Details
