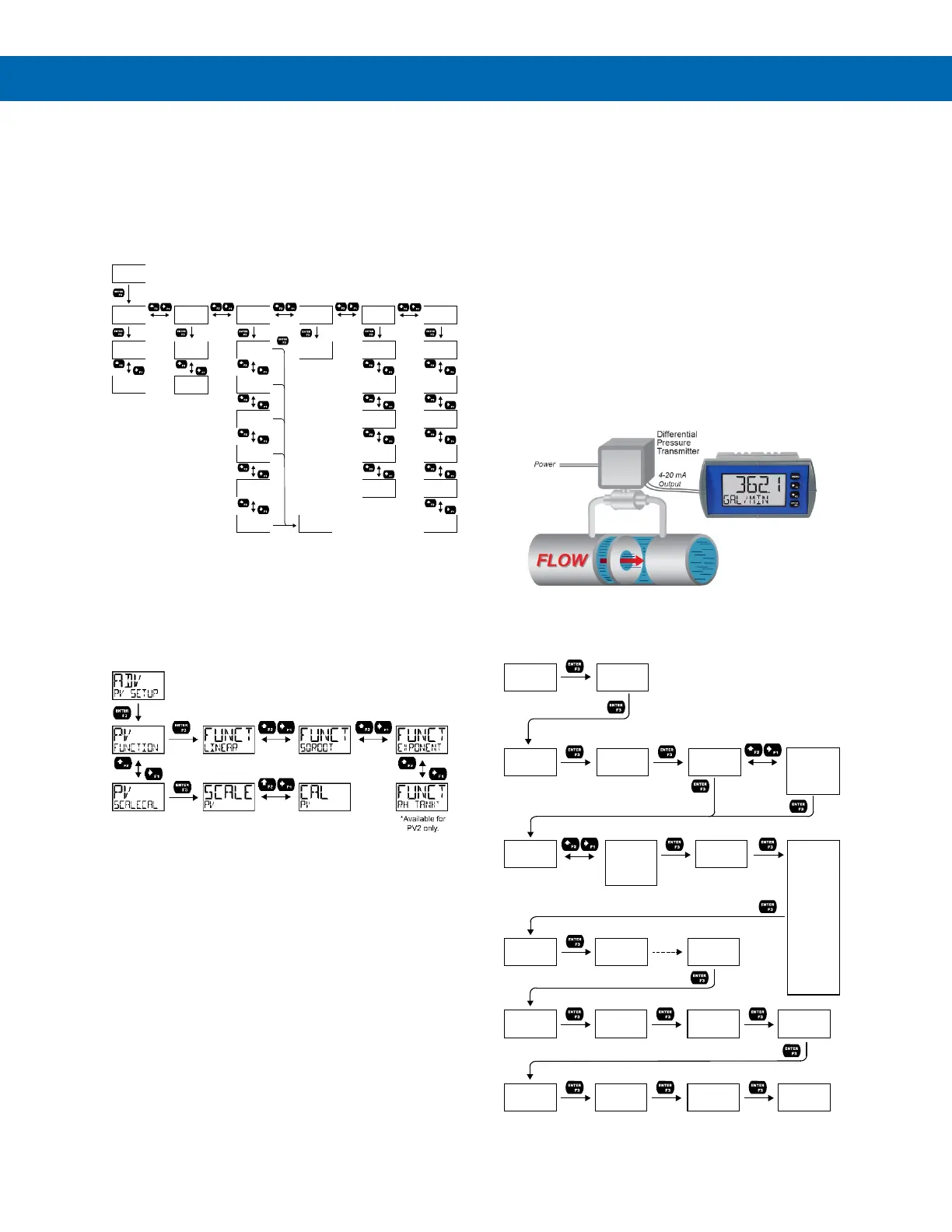

Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual
30
Advanced Features Menu
(
ADVANCED)
To simplify the setup process, functions not needed
for most applications are located in the Advanced
Features menu. The options under advanced features
include advanced PV setup, cutoff, filter, password,
function key programming, and system settings.
Advanced Process Variable Setup
(
ADV PV SETUP)
The Advanced PV Setup menu contains options to
apply signal input conditioning functions to the input
and to scale/calibrate the input signal.
Signal Input Conditioning
Functions (
FUNCTION)
The Function menu is used to select the input signal
conditioner applied to the input: linear, square root,
programmable exponent, or round horizontal tank
volume calculation. Multi-point linearization is part of
the linear function selection.
Meters are set up at the factory for linear function with
2-point linearization. The linear function provides a
display that is linear with respect to the input signal.
Square Root Linearization
(SQROOT)
The square root function can be used to linearize the
signal from a differential pressure transmitter and
display flow rate in engineering units.
PD6602 Displaying Flow Rate by Applying the Square
Root Function to the Output of a DP Transmitter.
SETUP
ADVANCED
ADV
PV SETUP
CUTOFF
FILTER
PASSWRD
USER
SYSTEM
PV
FUNCTION
PV
SCALE.CAL
CUTOF
DISABLE
CUTOF
ENABLE
FILTR
2.0 SEC
FILTR
4.0 SEC
FILTR
8.0 SEC
FILTR
16.0 SEC
FILTR
OFF
FILTR
1.0 SEC
PASS
MAIN
USER
F1
USER
F2
USER
F3
USER
DI
USER
HINT
SYSTM
AOUTCAL
SYSTM
DEFAULT
SYSTM
PV2
SYSTM
BACKLITE
SYSTM
INFO
SYSTM
ICAL
00.4 PCT
BYPAS
SCALE
UNITS
SCALE
INPUT 1
SCALE
DISP 1
UNITS
RATE
/SECOND
/MINUTE
/HOUR
/DAY
Rate Time
Bases
GAL/(T)
L/(T)
IGAL/(T)
M3/(T)
BBL/(T)
BUSH/(T)
cuYD/(T)
cuFt/(T)
cuIn/(T)
LiBBL/
(T)
BBBL/(T)
HECtL/
(T)
AF/(T)
CUSTOM/
Rate Units
INP 1
04.000
INP 1
mA
Flashes Units
Momentarily
DSP 1
+00,000.00
SCALE
INPUT 2
INP 2
20.000
SCALE
DISP 2
DSP 2
+00,100.00
SAVE? SETUP
INPUT
FUNCT
sqROOT
PV
SCALE.CAL
SCALE
pV
TIME
/SECOND
UNIT
GAL/S
RATE
CUSTOM
