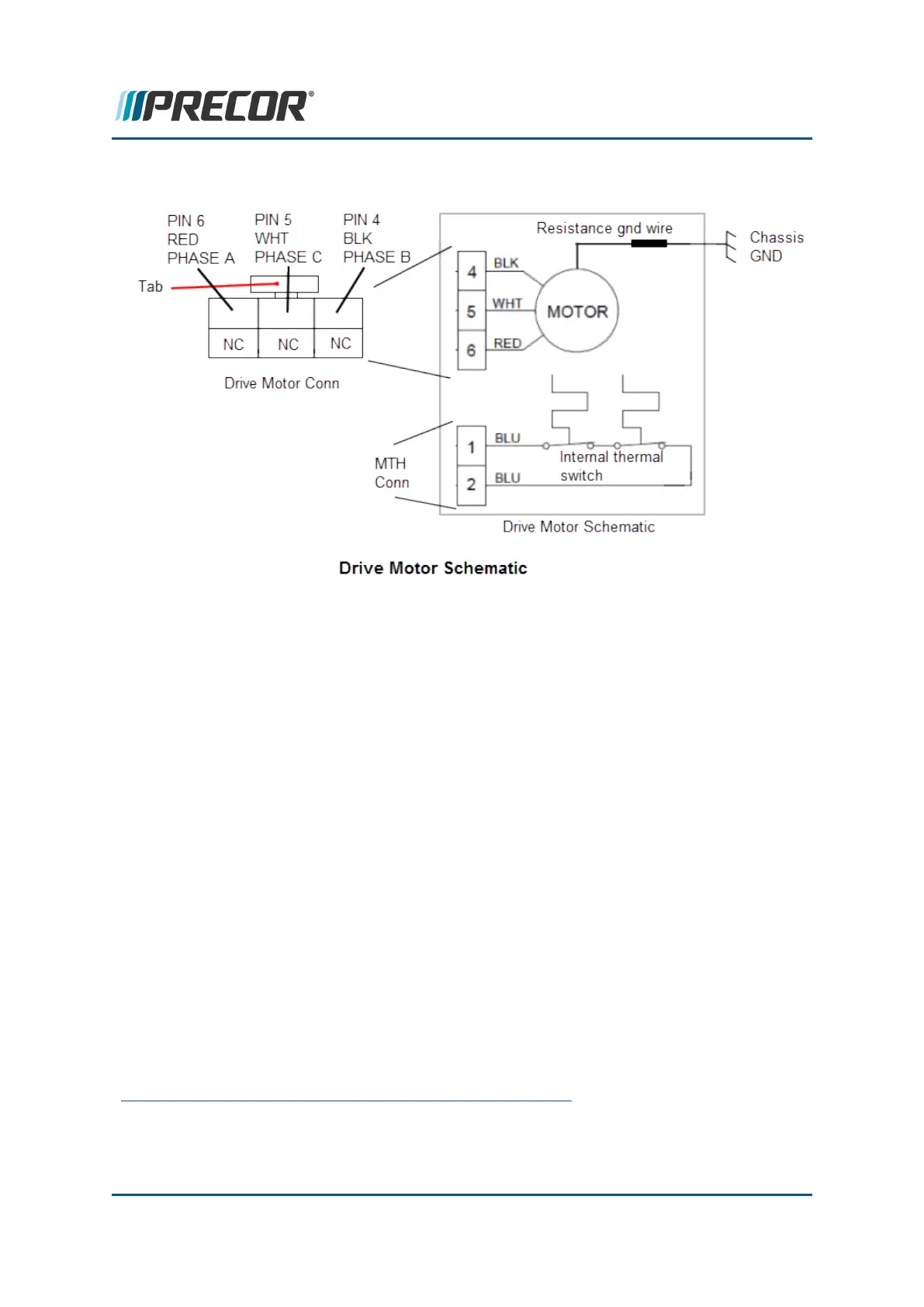

Drive Motor Cable Schematic
Procedure
Review entire procedure before starting.
Removal Instructions
1. Switch the power OFF and unplug
1
the power cord.
2. Remove the hood cover, see "Hood Cover Replacement" on page72.
3. Disconnect the Motor Controller "MTH" and "MOTOR" electrical connections:
a. Remove the MC
2
base from the mounting fasteners to allow connector access,
see "Motor Controller (MC) Replacement" on page101.
b. Disconnect the MC "MTH" and "MOTOR" interface cable connectors, see "Motor
Controller (MC) Replacement" on page101.
c. Remove the motor interface cable from the three frame cable clamps.
1
Disconnect a device power cord plug or cable connector from the power receptacle or outlet.
2
Motor controller or motor controller module
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
