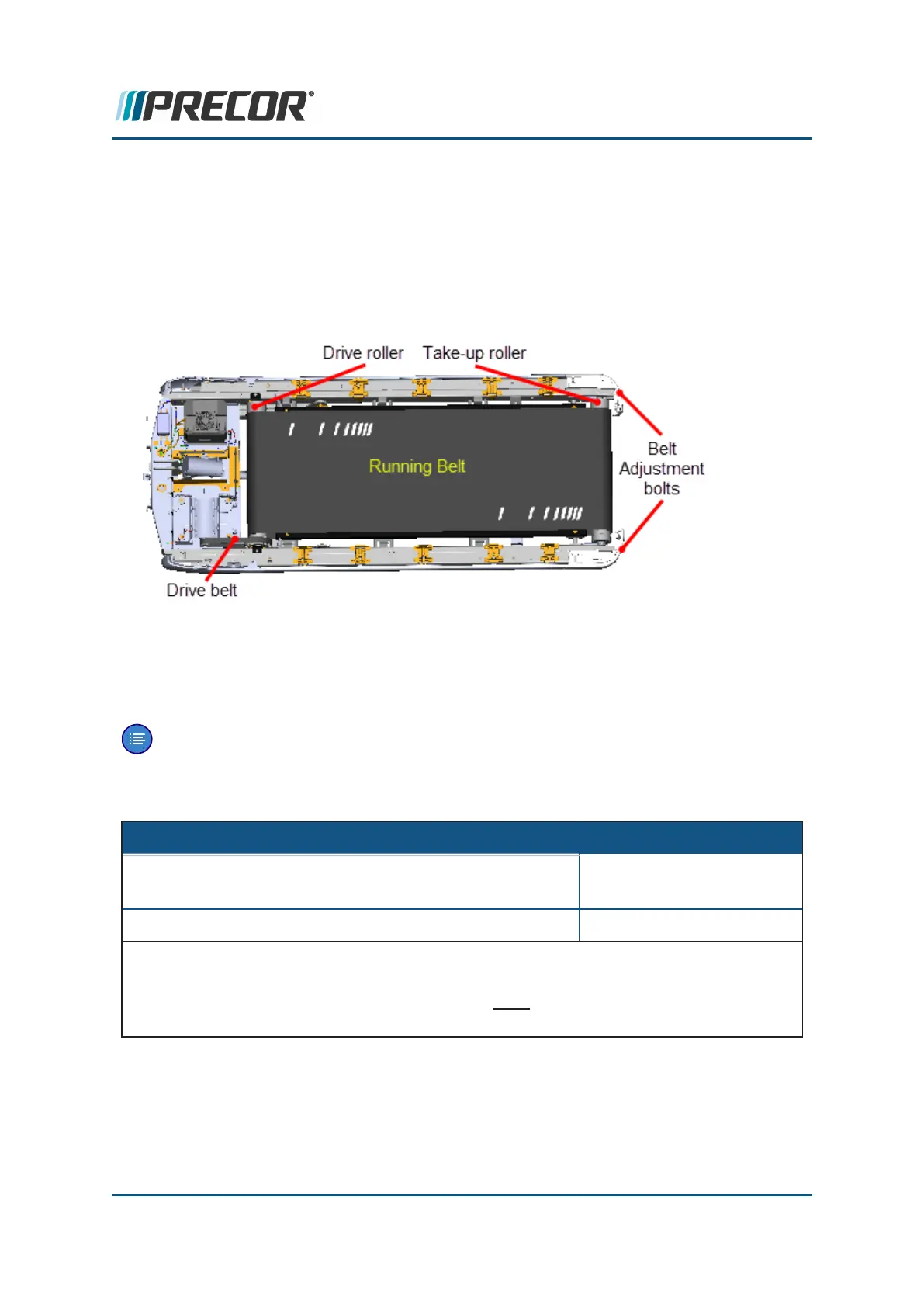

Running Belt Tension and Tracking Adjustment
About
This procedure provides instructions to verify and make adjustments to the running belt ten-
sion and tracking alignment. The running belt tension and tracking should be verified anytime
the running belt is replaced or the belt tracking is not centered.
Tools
l 5/16" Hex Key l (QTY 2) Belt tension gauges
(Precor pn PPP000000020007101)
Note:Proper tensioning of the belt requires the use of two tensioning gauges, Pre-
cor part number PPP000000020007101.
Specification
System Component Specification
Ammeraal Beltech brand running belt tension (gauge/-
percent)
(2)
3.75 (0.75%)
(1)
Forbo brand running belt tension (gauge/percent)
(3)
3.55 (0.55%)
(1)
Notes:
1.Referenced to gauge reading 3.0 (0.0%)
2. The Ammeraal Beltech brand running belt must NOT be used with a prewaxed deck.
3. The Forbo brand running belt must be used with a prewaxed deck.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 55
5 Adjustment Procedures
Running Belt Tension and Tracking Adjustment
