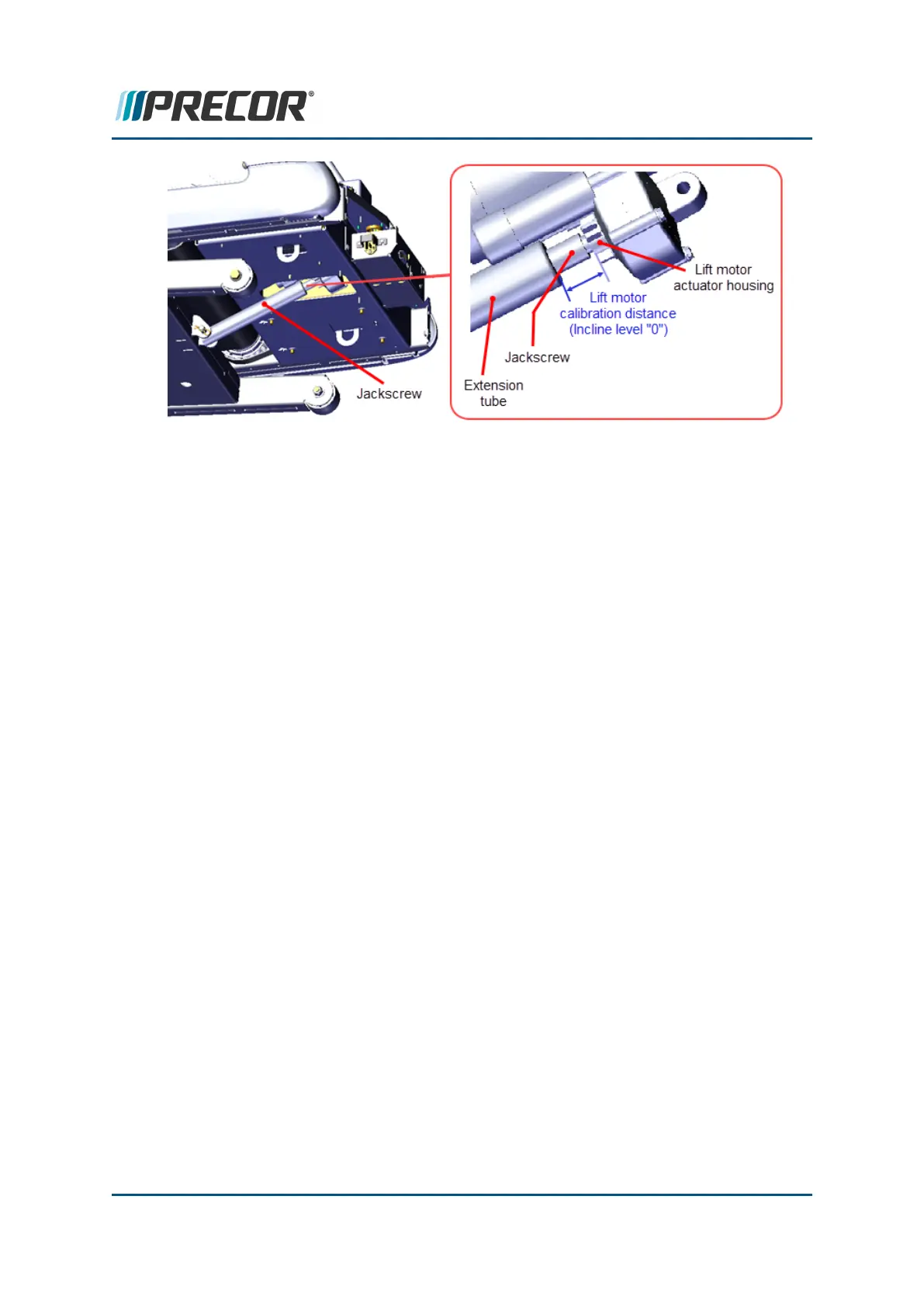

6. Reinstall the extension tube into the lift platform mounting bracket and secure using the
hitch pin and clevis pin. It may be necessary to slightly rotate the extension tube to align
the clevis pin mounting holes. Choose an adjustment direction that will minimize the
change to the extension tube calibration distance. Firmly hold the jackscrew from turn-
ing while adjusting (rotating) the extension tube.
Operation Verification
7. Return the treadmill to the default upright position making sure the treadmill is stable
and setting level on the floor, see either the "Side lift platform assembly access" on the
facing page or the "Front lift platform assembly access" on page67.
8. Reinstall the hood.
9. Connect the power cord and switch the power ON.
10. Verify incline operation from the minimum to maximum levels.
11. Do the Operation Verification tests (see "Operation Verification" on page19) and return
to service.
Lift Platform Assembly Access
Servicing the lift platform assembly and lift motor extension tube/jackscrew components
require accessing the underside of the treadmill. There are two alternative methods to access
the lift platform assembly and connected hardware: 1) side lift platform assembly access or 2)
front lift platform assembly access. Review each method and use the process that best fits
your particular circumstances.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 64
5 Adjustment Procedures
