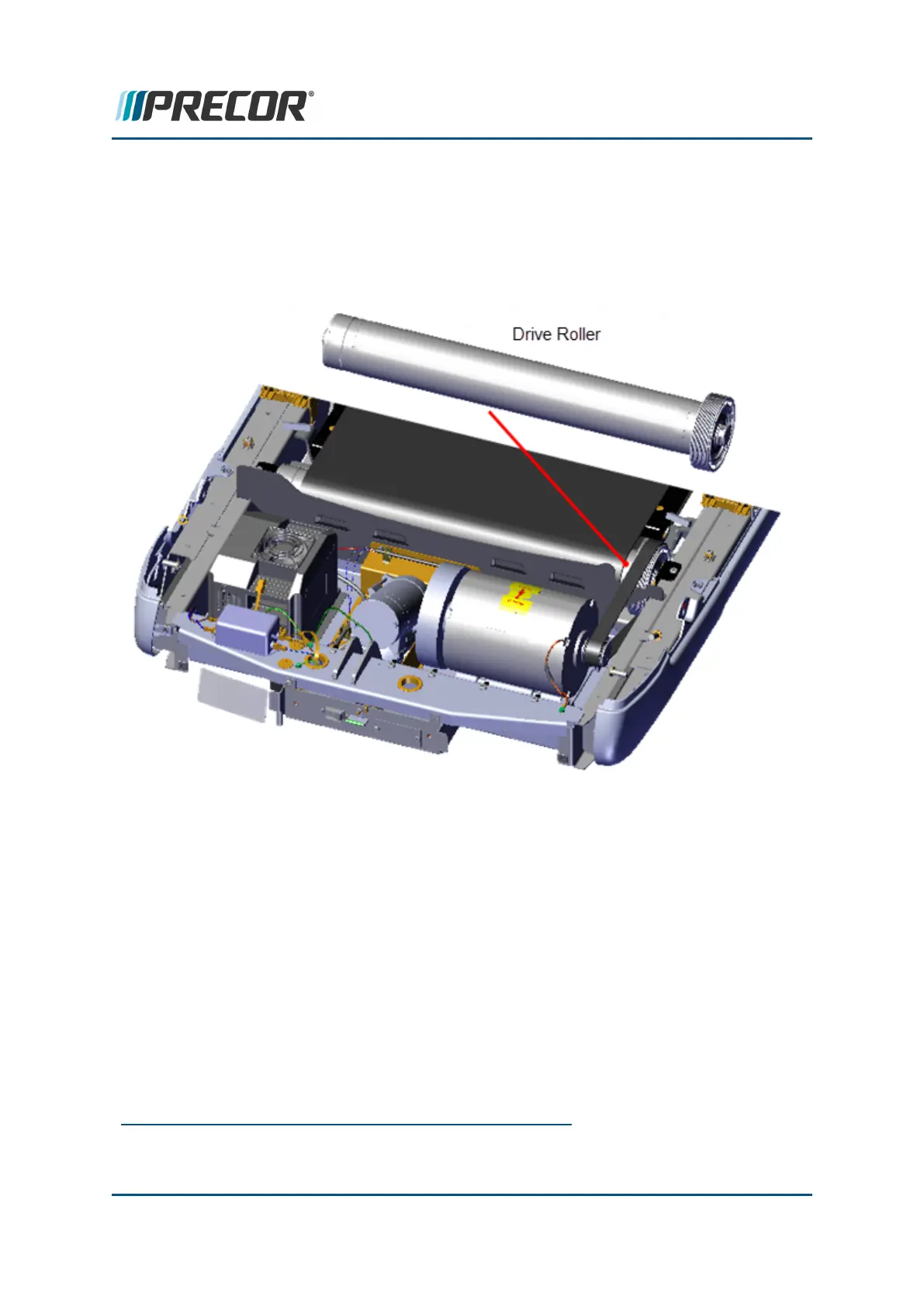

Drive Roller Replacement
About
This procedure provides instruction to remove and replace the Drive Roller.
Procedure
Review entire procedure before starting.
Removal Instructions
1. Switch the power OFF and unplug
1
the power cord.
2. Remove the hood cover, see "Covers and Panels Replacement" on page70, and
left/right Landing Trim covers, see "Covers and Panels Replacement" on page70.
3. Relax the running belt tension by loosening the left and right 5/16" hex key tension
adjustment bolts. Alternately loosen the left and right adjustment bolts in 1/4 turn incre-
ments so that the running belt tension is evenly removed. Only use hand tools and not
power tools which could cause damage to the take-up roller tension mechanism.
1
Disconnect a device power cord plug or cable connector from the power receptacle or outlet.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 131
6 Replacement Procedures
Drive Roller Replacement
