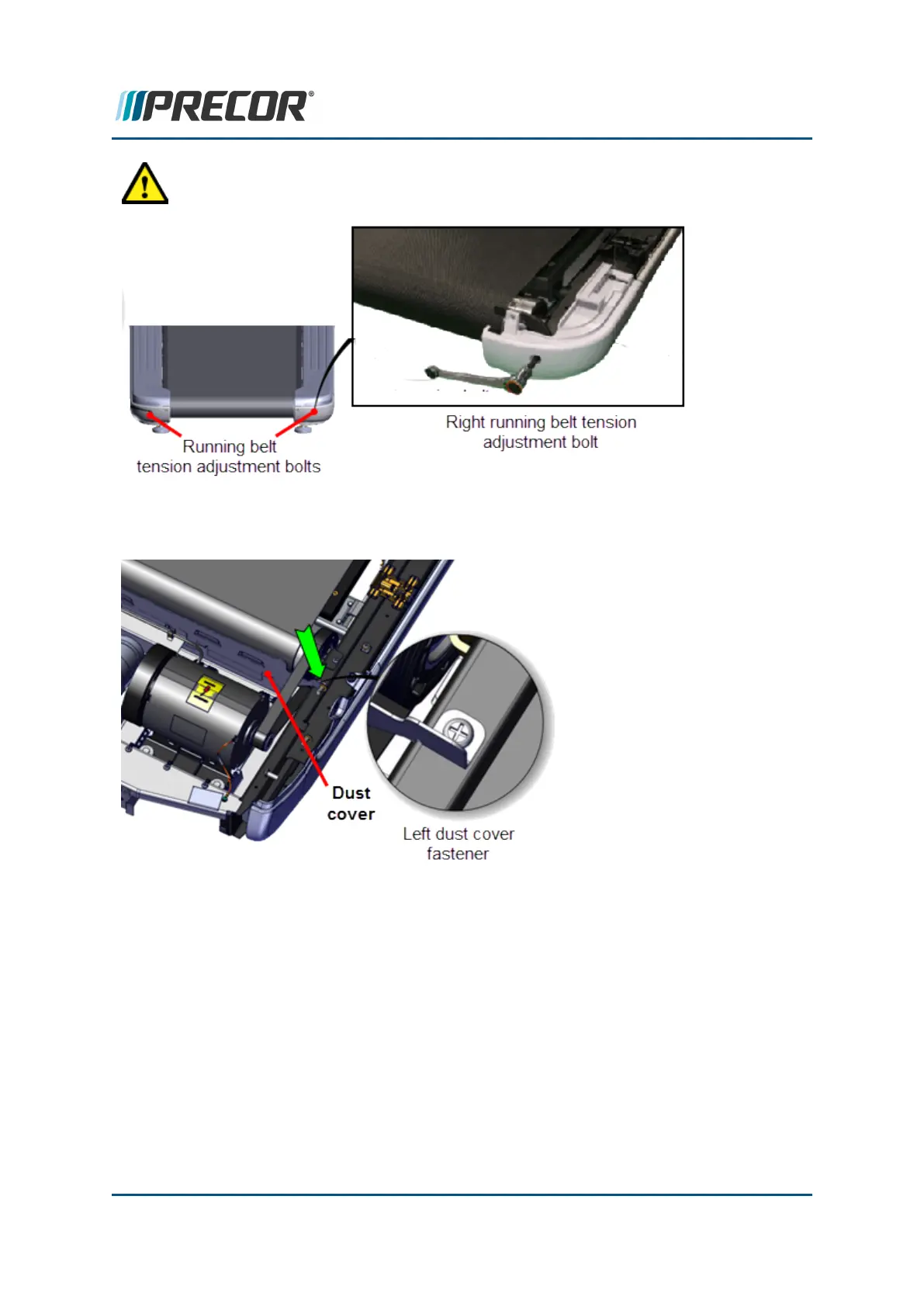

CAUTION:Only use hand tools to adjust tension. Power tools can easily over and/or
under tension causing damage to the belt and/or tension hardware mechanism.
4. Remove the two #3 Phillips screws and two 7/16" hex head fasteners and remove the
Dust Guard . Retain fastener hardware for installation.
5. Remove the Drive Belt. Walk the belt off the Drive Roller pulley and remove.
6. Remove the one #3 Phillips screw fastener per keeper and remove the left and right
Roller keepers.Retain fastener hardware for installation.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 132
6 Replacement Procedures
Drive Roller Replacement
