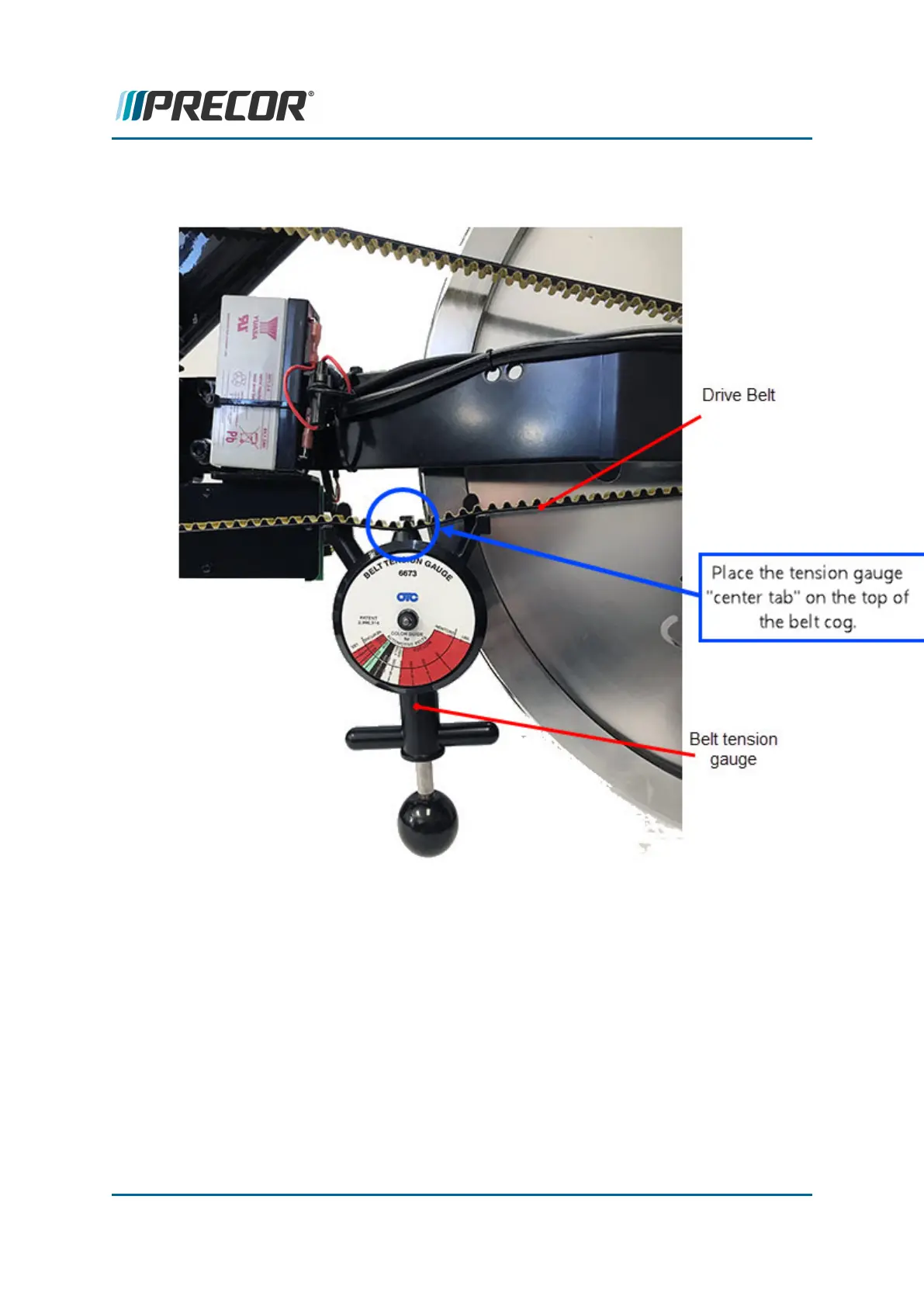

b. If the measured tension is not within spec, remove the tension gauge and con-
tinue the belt tension adjustment.
6. If the belt is under tension, remove the belt tension by alternately loosening the right
and left 10 mm hex key belt tension adjustment nuts. Sustain a small amount of belt
tension so that the belt remains seated on the front and rear sprockets.
7. If the drive belt is not centered on the flywheel pulley, slowly turn the pedals while
nudging the belt to the center of the sprocket.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 29
4 Adjustment Procedures
Drive Belt Tension and Tracking Adjustment
