hex key fastener last. Retain part(s) and/or fastener(s) for installation.
2.

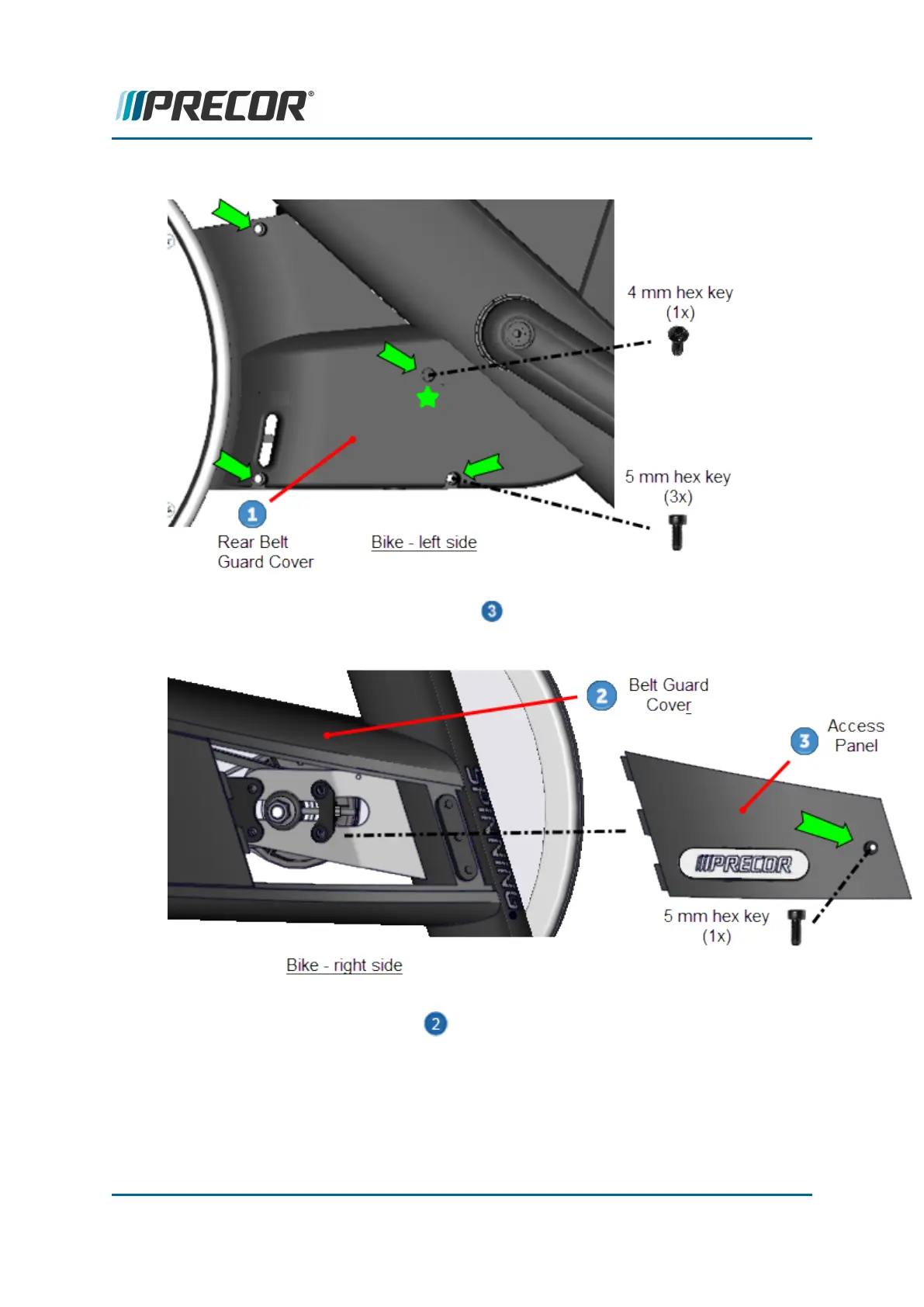

Remove the front belt guard access panel by removing the one fastener using a 5
mm hex key. Retain part(s) and/or fastener(s) for installation.
3.
Remove the front belt guard cover by removing the 5 mm hex key (4x) fasteners.
The 4 mm hex key center back cover bolt needs to also be removed to remove the
front cover. Retain part(s) and/or fastener(s) for installation.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 48
5 Replacement Procedures
Belt Guard Cover Replacement
