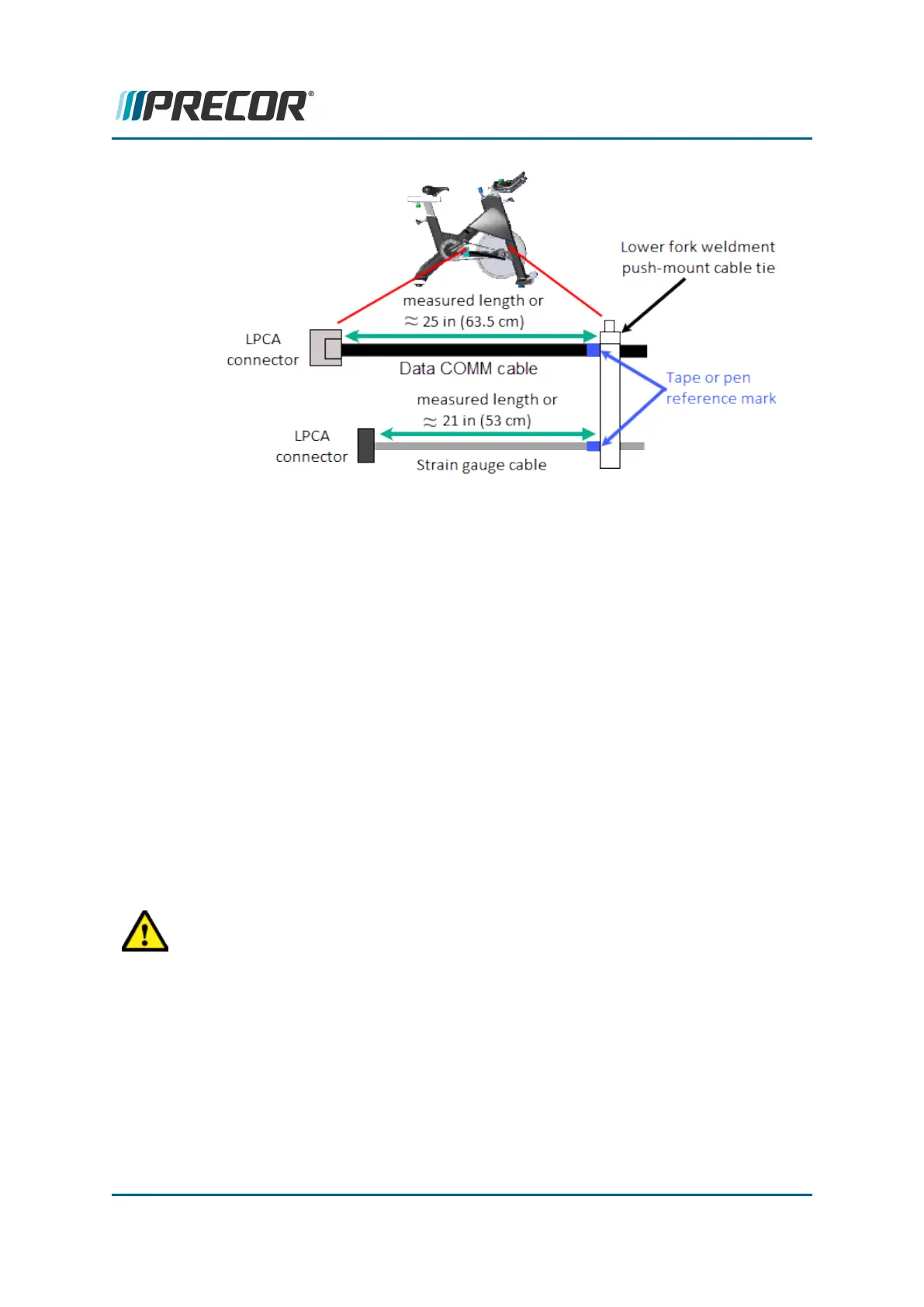

c. Secure the Data COMM cable and Strain Gauge cables to the right fork weld-
ment upper push-mount cable tie at the following conditions:
l
Strain Gauge cable: Adjust the Strain Gauge cable so that there is a
small amount of slack from the left caliper cable clip across the frame to
the right side upper push-mount cable tie.
l
Data COMM cable: Pull the Data COMM cable upward thru the upper
fork weldment cable access hole until snug. Then secure the cable so
that the cable slack will NOT touch or rub against the top of the fly wheel.
l
When both cables are set to the install conditions, tighten the upper
push-pin cable tie.
5. Reinstall the flywheel, see "Drive Belt, Generator Belt, and Flywheel Replacement"
on page85.
6. Hand rotate the pedals and verify that the Data COMM cable does NOT touch or rub
against the top of the flywheel.
l
If the cable rubs against the flywheel, the Data COMM cable slack must be
readjusted so that the cable does not touch the flywheel. This may require
removing the flywheel to make adjustments.
CAUTION:Rubbing against the top of the flywheel will damage the Data COMM
cable. Make sure that the Data COMMcable does not touch the top of the flywheel
and is securely attached to the upper push-pin cable tie. Remove slack as neces-
sary.
7. Ride the bike and verify that the console powers on and is operating normally.
l
Make sure the WATTS, RPM, TIME, DISTANCE, and INTERVAL metrics are
reporting correct information.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 68
5 Replacement Procedures
Brake Caliper Assembly Replacement
