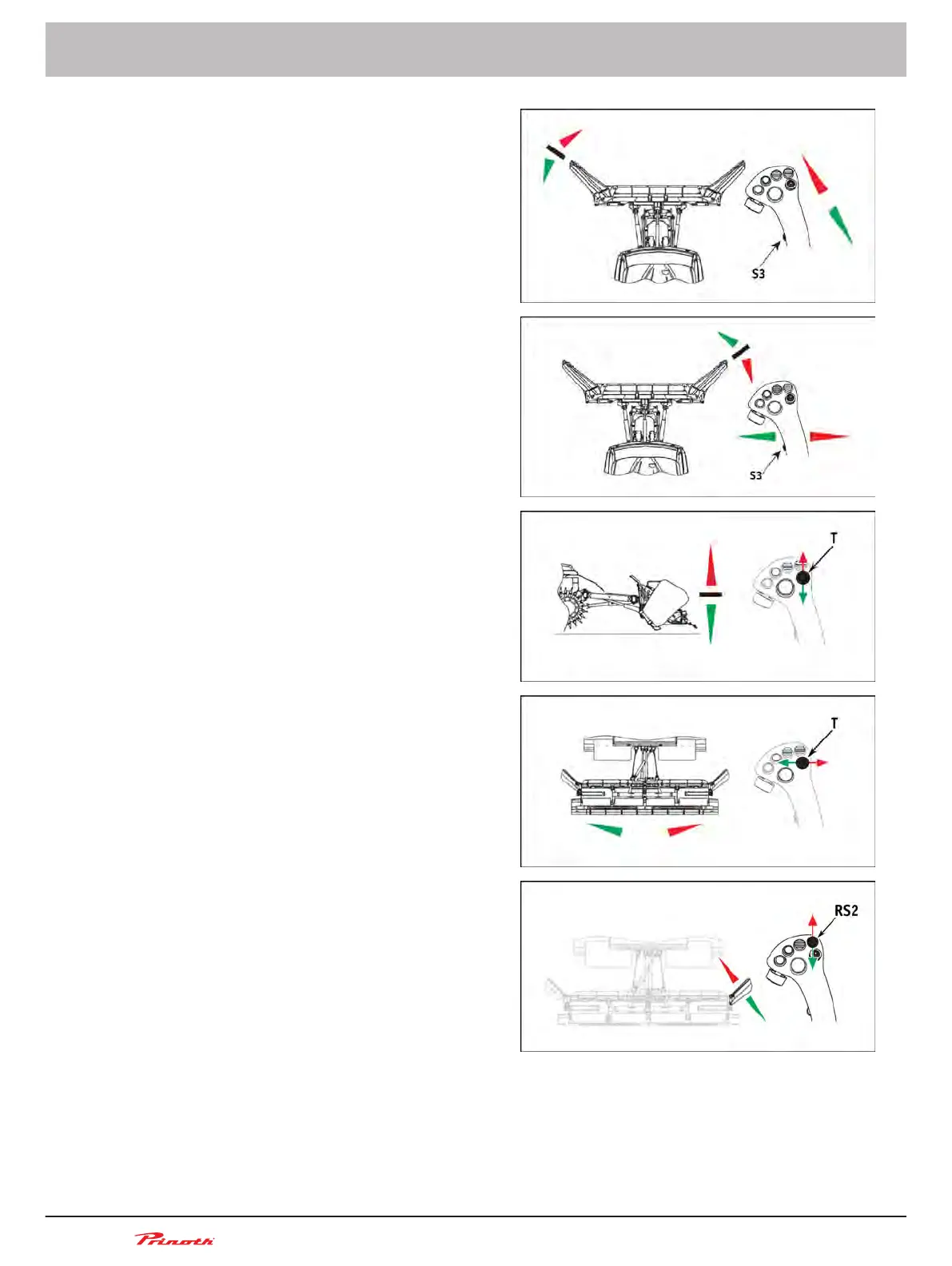

■ Left blade wing positioning control (push-
button S3)
□
To close the left wing, press and hold
the button and push the joystick for-
wards.
□ To open the left wing, press and hold
the button and pull the joystick back-
wards.
■ Right blade wing positioning control (push-
button S3)
□
To close the right wing, press and
hold the button and push the joystick
towards the left side.
□ To open the right wing, press and
hold the button and push the joystick
towards the right side.
■ Rear lift frame vertical displacement con-
trol (button T)
□
Raise: To raise the tiller, move the
switch forwards.
□ Lower: To lower the tiller, move the
switch backwards.
■ Rear lift frame lateral displacement control
(button T)
□
Swivel Left: To swivel the tiller in the
left direction, move the switch to the
left.
□ Swivel Right: To swivel the tiller in
the right direction, move the switch to
the right.
■ Right tiller wing control (button RS2)
□
Lowering the right tiller wing: To low-
er the right tiller wing, push the button
down.
□ Raising the right tiller wing: To raise
the right tiller wing, push the button
up.
