-61-

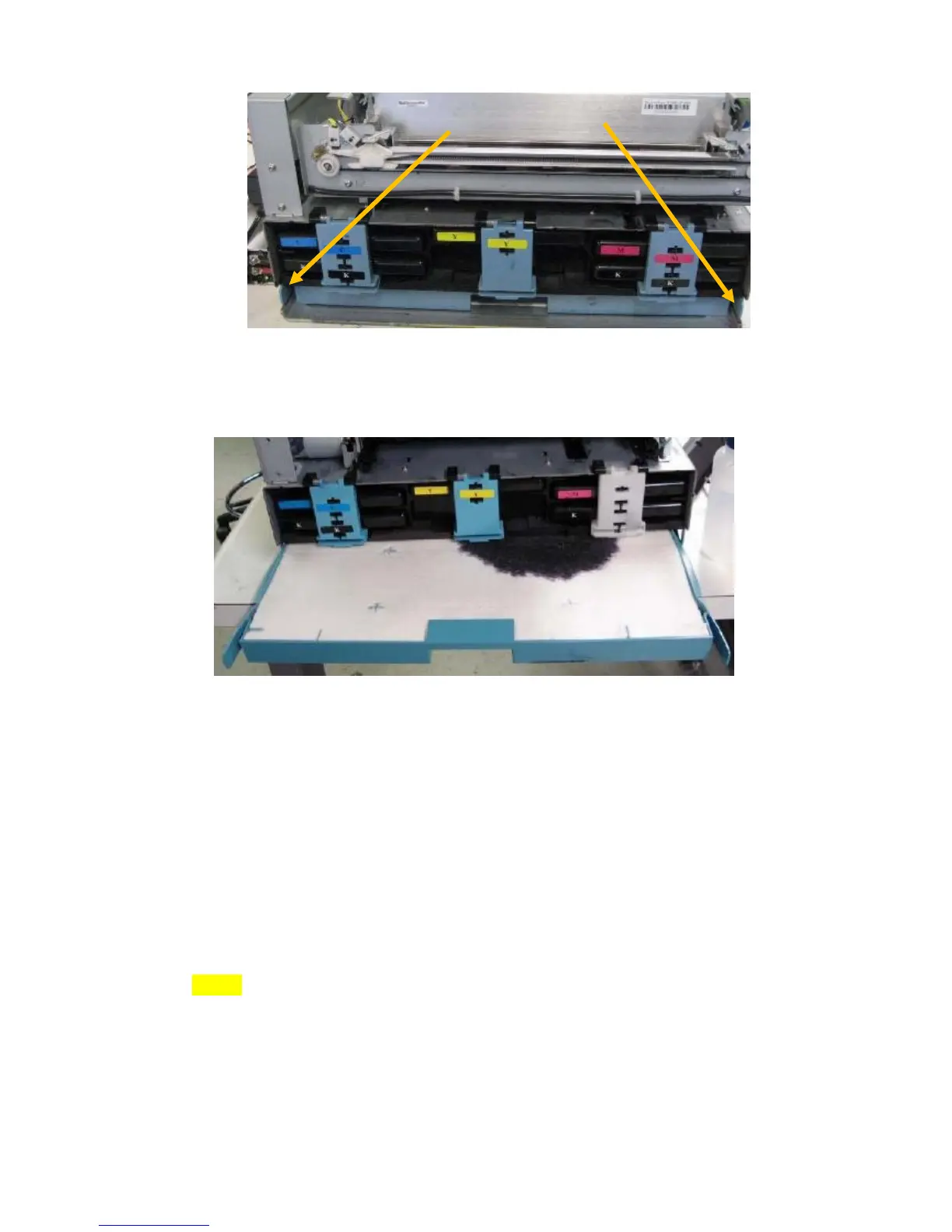

2. Even the absorber is completely darkened with waste ink, with no white to show, it
may still be able to hold additional ink due to evaporation. The capacity of the waste
ink absorber is 1.6L. Visually inspect the waste ink absorber and tray to see if there is
ink leaking out of the tray. If yes, replace the absorber with a new one.
3. Slide the waste ink tray back into the frame until it clicks.
Ink Tubing Inspection
The following ink tubing and connections, visible to the operator, must be inspected every
month:
• fluidic coupling (aka Revolver Caps)
• buffer box
• pinch valve
• peristaltic (ink) pump
Refer to the following pictures to identify the specific harwares.
1. Remove any housing or covers positioned around the ink tubing.
NOTE: The clamshell should be closed during this procedure.
To Next Page
