Maintenance Module in Forward Position

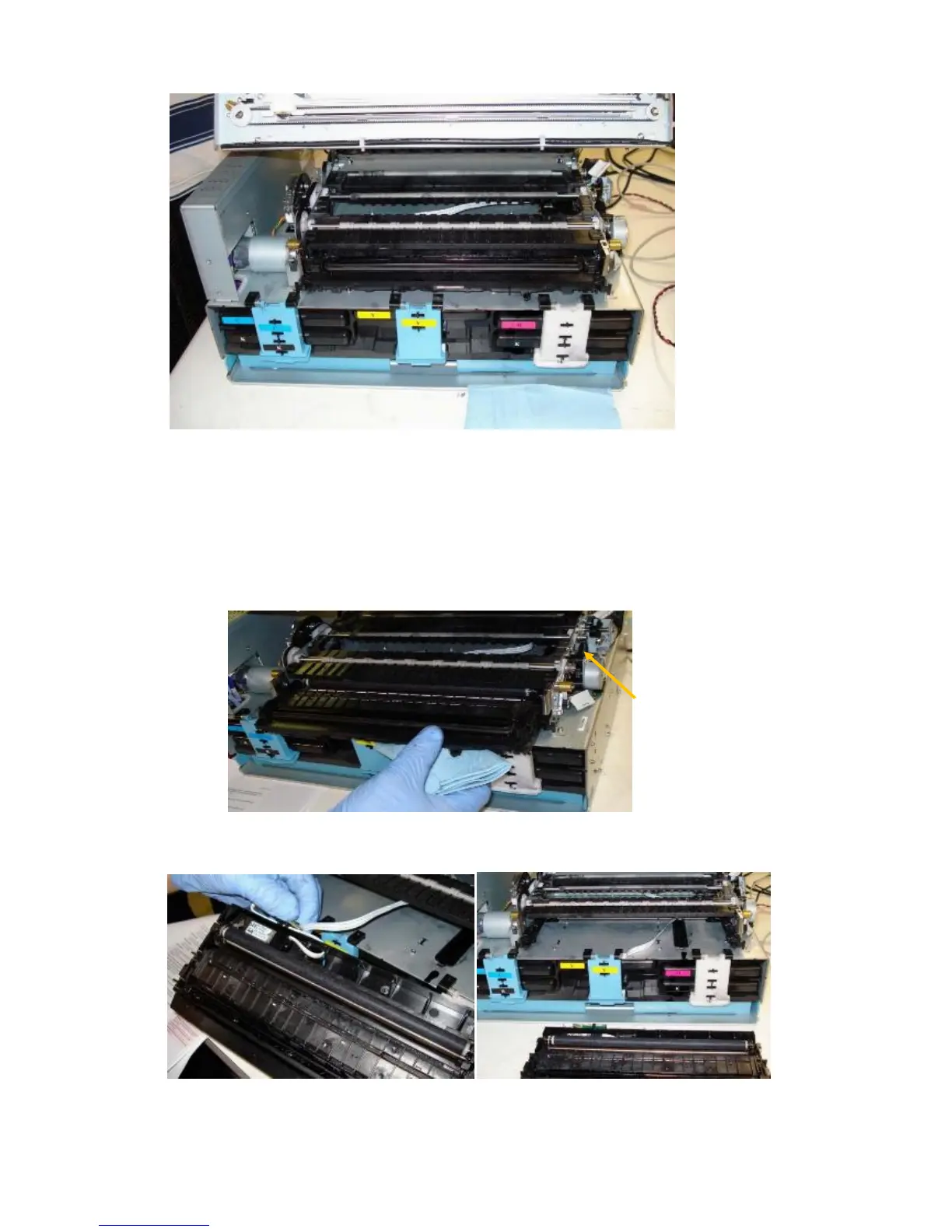

3. Prepare a large absorbent towel to catch any ink which might leak from the
maintenance module or the wick to the waste ink reservoir. Make sure to fold the
towel over 2 or 3 times so that it can absorb lots of ink. Be prepared to cover the
bottom of the maintenance module with the towel as you pull it out.
Manually rotate the maintenance module positioning gear until the module disengages from
the drive gear and gently pull the module forward until you can disconnect it from the
translation motor.
4. Disconnect the ribbon cable connector for the wiper motor to free the MM.
