-68-
5. Use a lint-free cloth, moistened with DI water, to gently remove any ink residue or
debris from the maintenance module. Once the lint-free cloth is soiled, use a new
cloth.

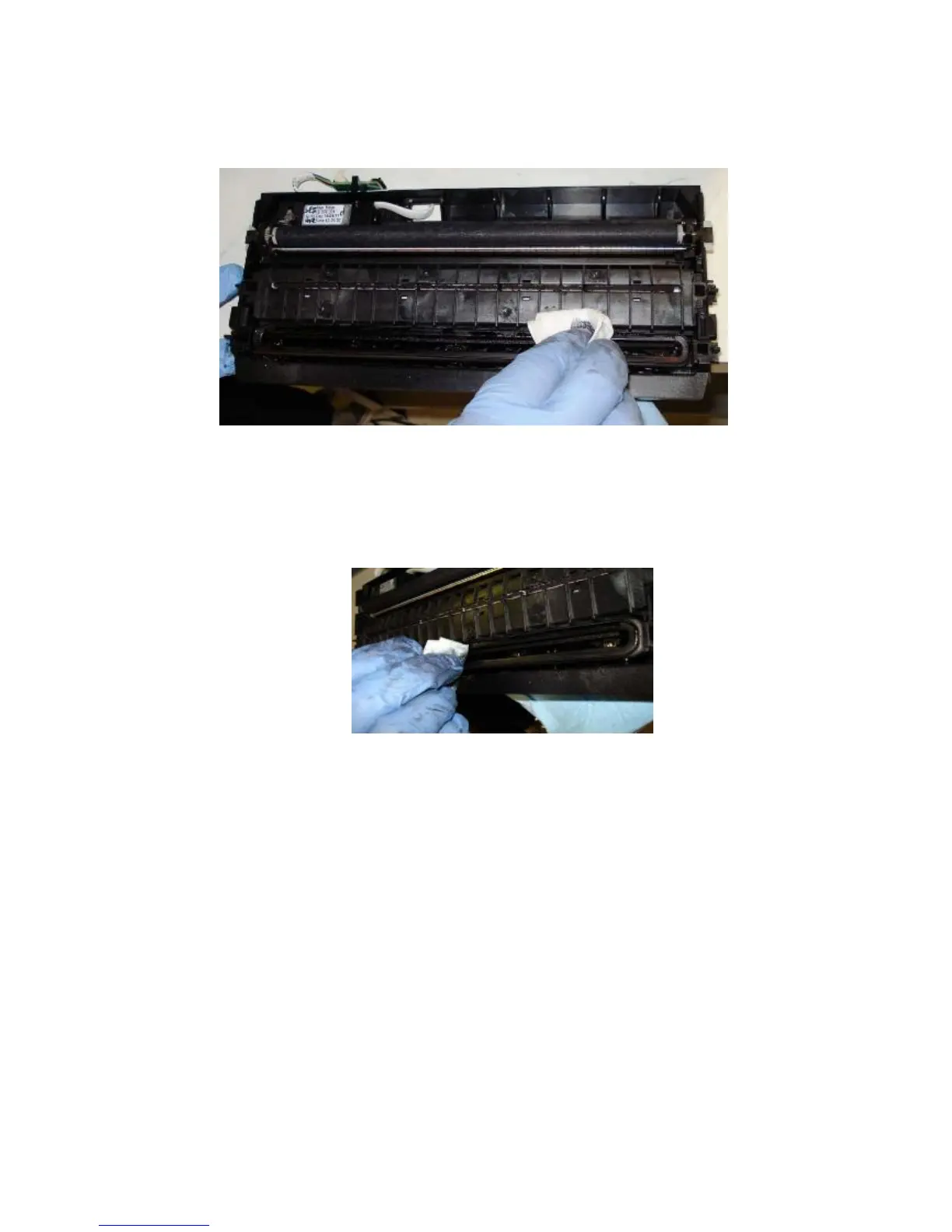

Picture of Ink Residue removal from the Maintenance Module
6. Inspect both wicks (printing platen and cap) for warping, plugged up sections, or to
see if it is falling out. If fouled, escalate to a technician for replacement with new
wick(s).
7. Inspect the cap for ink contamination and cracking or permanent deformation of
the cap. If permanently damaged, escalate to a technician for replacement.
Picture of wiping the Cap Seal with damp lint-free cloth
8. Inspect the wiper module components for damage or permanent deformation. If
permanently damaged, escalate to a technician for replacement.
9. Remove the paper dust from underneath the maintenance module, during the
annual cleaning. Use a vacuum cleaner for the interior of the unit, if necesarry.
