Distinguishing between a Rebar and a mid point

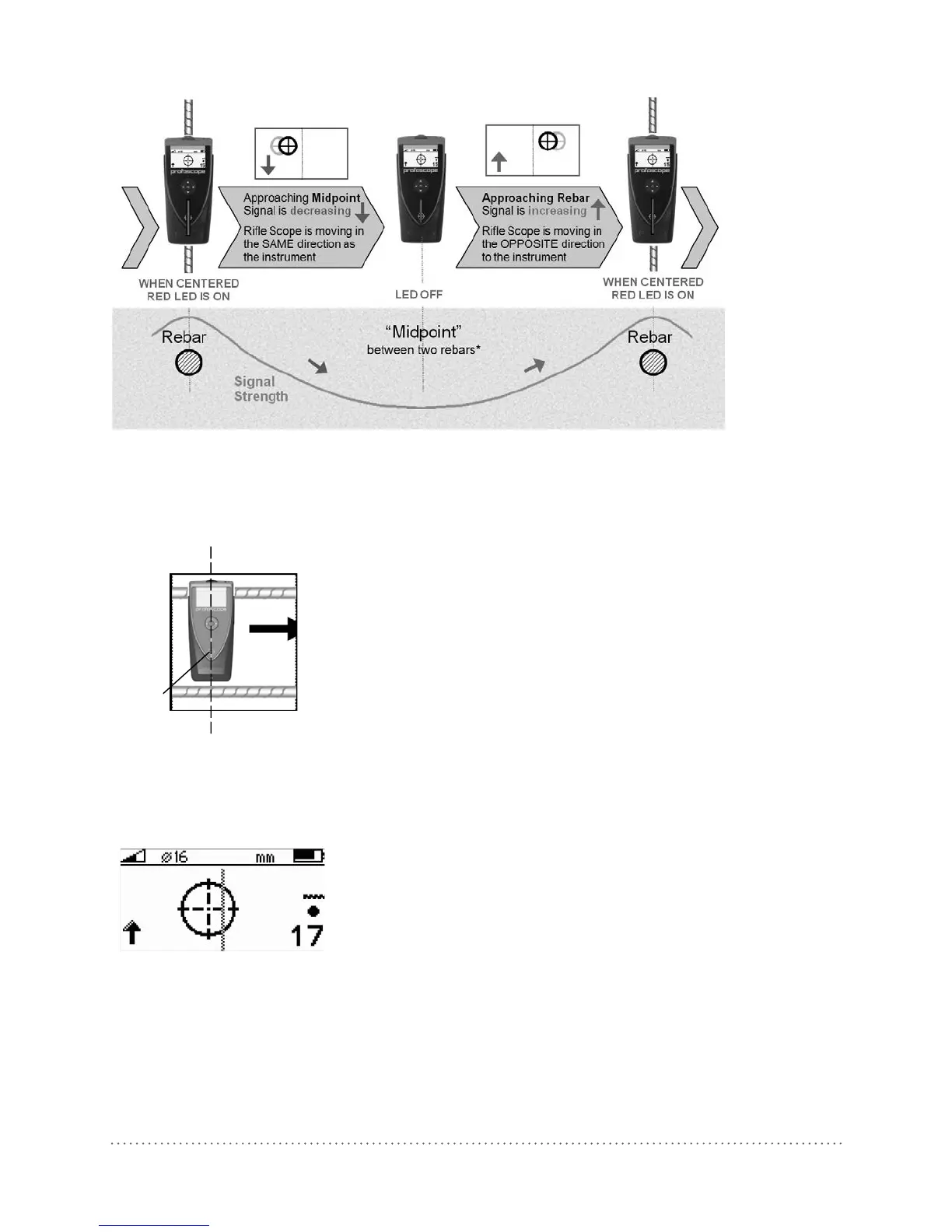

Fig 16: Distinguishing between a Rebar and a mid point
Scenario B: Sweeping Parallel to the Rebars
The Center Line (9) is perpendicular to the rebars.
MC (4)
Center Line (9)
Try it out on the start up test kit.
Fig 17: Sweeping parallel
If there are rebars within the range, the Rifle Scope will remain close to the Center Line (9) of the
screen and moves very
little.
Little or no movement of the Rifle Scope.
Fig 18: Rifle close to the Center Line (9)
In this case turn the Profoscope by 90° and continue sweeping as described under Scenario A)
above.
