IV. INSTALLATION:
• HYDRAULIC CONNECTIONS
IMPORTANT: when selecting the installation
sites of the various components, and before
creating the by-pass loops on the installation,
make sure that the power cables of each of
the components are long enough to reach the
electrical panel from the selected installation
site.
In the plant room,
create a by-pass
loop, downstream
from all other
devices mounted
on the hydraulic
circuit, to allow
installation of
detector and the
pH-Clear pump
(if one is being
installed).
The cell may be oriented vertically or horizontally,
the diagram is respected.
To avoid the accumulation of air in the cell in the
event that air enters the hydraulic circuit, the cell
should not be installed at a high point on the
hydraulic circuit.
If installing a pH-
Clear pump, this
should be located
downstream just
after the cell.
The by-pass should
be designed such
that acid injected
to descale the cell
stops) remains in
the cell. In some
will require installation of a check valve.
that the acid used to descale the cell will not
touch it. A check valve can ensure this.

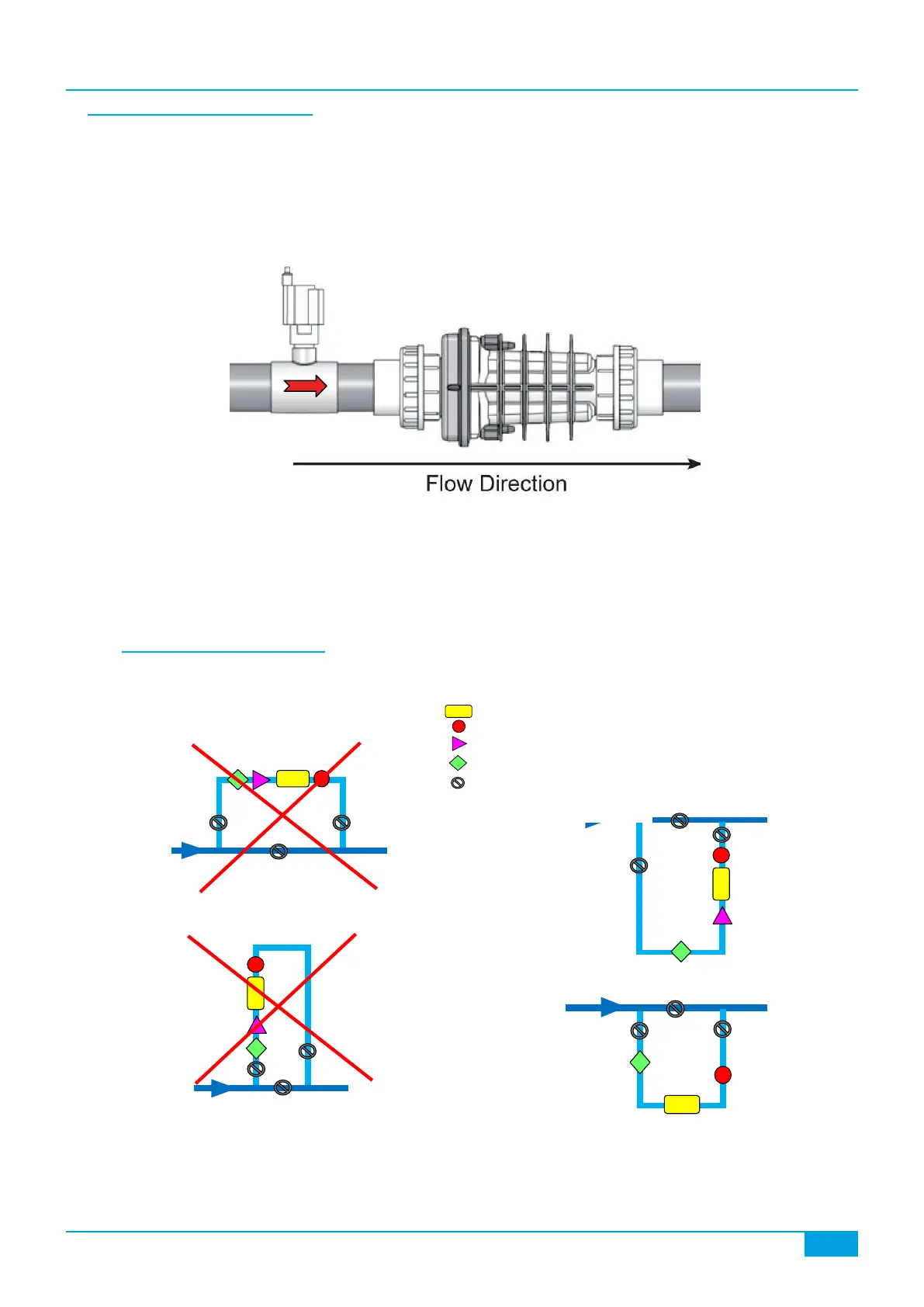

• SAMPLE CONFIGURATIONS
autres organes
du circuit
(pompe, filtre
retour
bassin
OK
Opimal,
clapet non
nécessaire
Cellule
Pompe pH-clear
Clapet ani-retour (non fourni)
Détecteur débit + sonde T°C
Vanne ¼ de tour
From other
components
on the circuit
etc;)
To the
pool
return
Optimal,
check
valve not
necessary
Cell
pH-Clear pump
Check valve (not supplied)
Flow detector + T°C probe
1/4 turn valve
