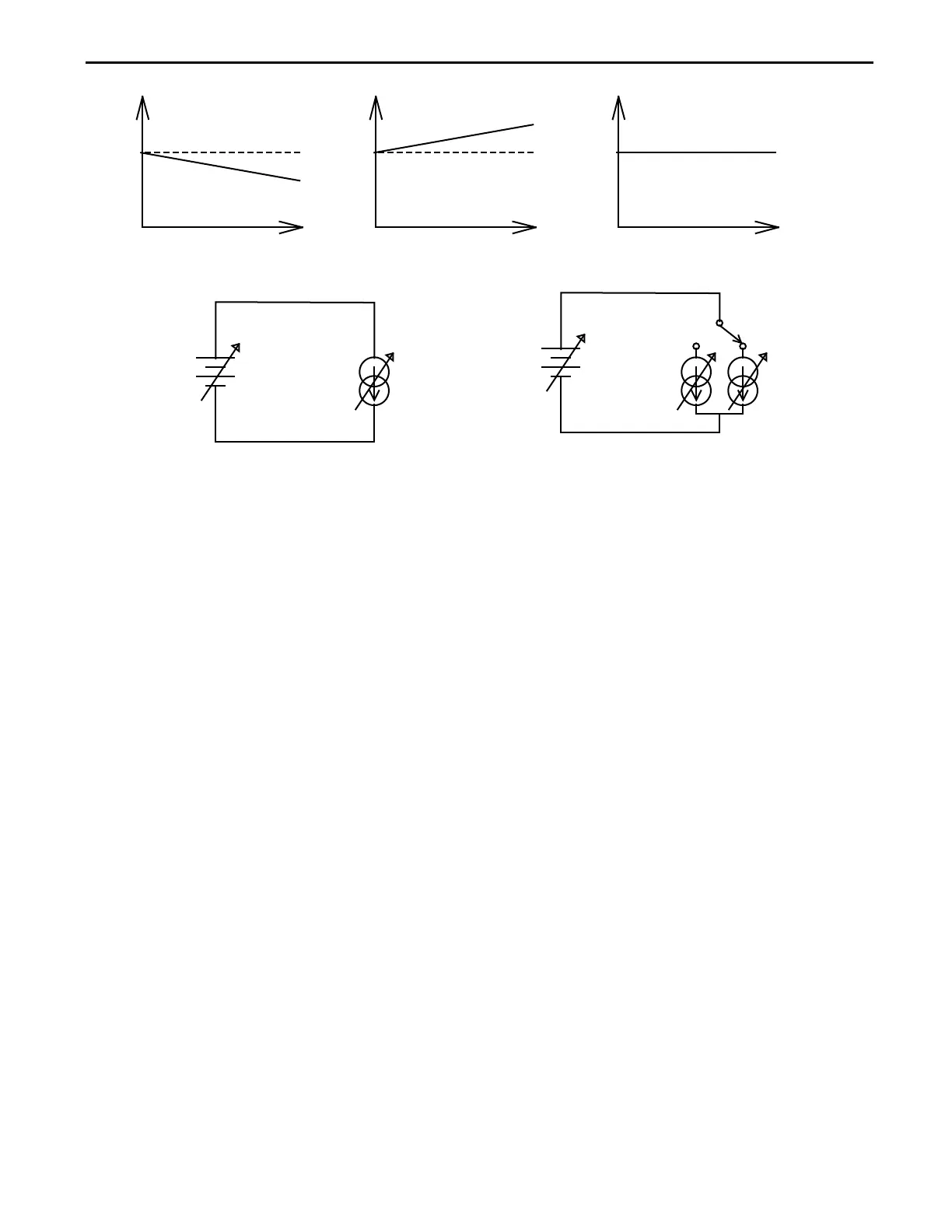

Prodigit 3270 Series - Fig 5-6 CONSTANT POWER MODE APPLICATION

3270 Series Operation Manual 123
V
T
(a) The output voltage of battery
Vo
A
T
(b) The output current of battery
Ao
W
T
(c) The output power of battery
Wo
Battery
Plow
Phigh
(e) Constant Power Mode (DYNAMIC)
Battery
(d) Constant Power Mode (STATIC)
Fig 5-6 CONSTANT POWER MODE APPLICATION
