Prodigit 3270 Series User Manual

134 PRODIGIT
5-13. Power Supply OPP testing
5.13.1. OPP Manual control
Example:

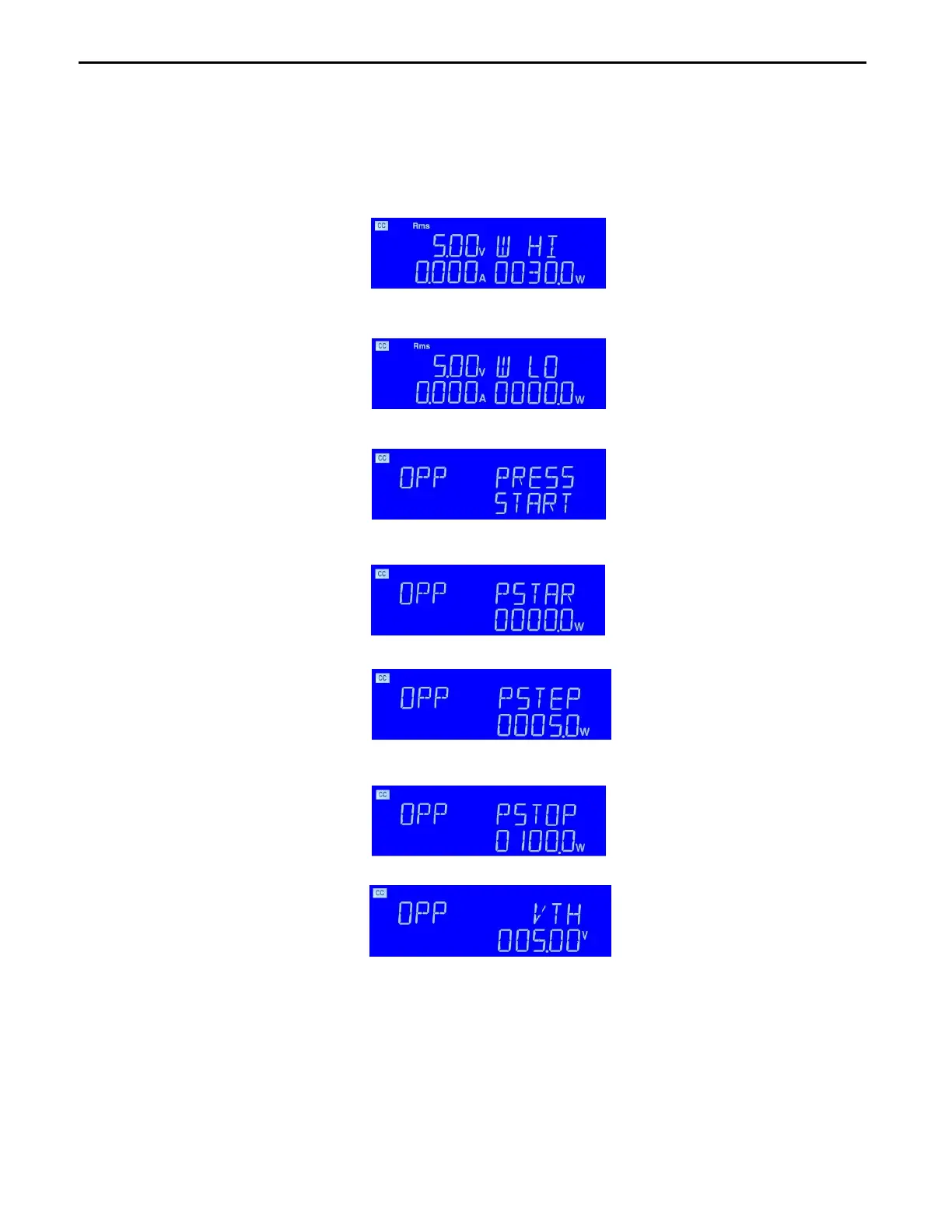

5.13.1.1. First, press Limit Key function to setting W_Hi 30.00W..
5.13.1.2. Press Limit Key function to setting W_Lo 0W..
5.13.1.3. Setting OPP test, press OPP key to the next step.
5.13.1.4. Setting start load watt 0W, press OPP key to the next step.
5.13.1.5. Press up key, set step load watt 5W, press OPP key to the next step.
5.13.1.6. Press up key, set stop load watt 100W, press OPP key to the next step.
5.13.1.7. Setting OPP VTH 5.00V，press OPP key to the next step.
