3270 Series Operation Manual 129

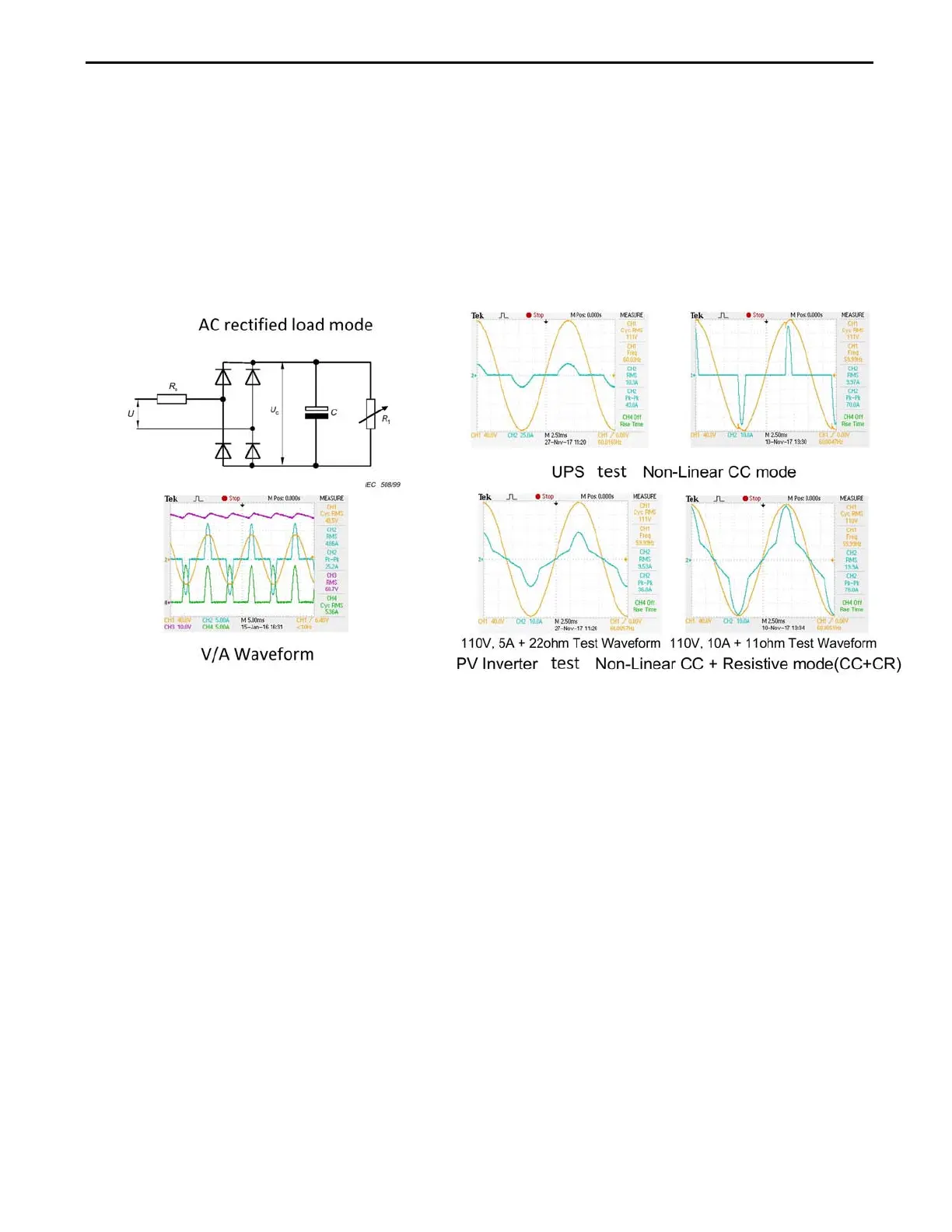

5-9. AC rectified load simulation
3270 AC & DC electronic load AC rectified load mode is fully compliance with the IEC test
Specification requirements for the UPS, IEC 62040-3 UPS Efficiency Measurement Non-
Linear and IEC 61683 Resistive Plus Non-Linear, respectively, 3270 AC rectifier load mode
Is used CC + CR load mode and maintain current THD at 80%, to simulate the actual
Electronic device which is connecting the UPS.
( IEC62040-3 UPS Efficiency Measurement non-Linear and IEC61683 Resistive Plus Non-
Linear)
