1.1.8. CP Mode:
At Constant Power mode, the 3270 series Electronic Load will attempt to sink load power
(load voltage * load current) in accordance with the programmed power. (See Fig 1-13).

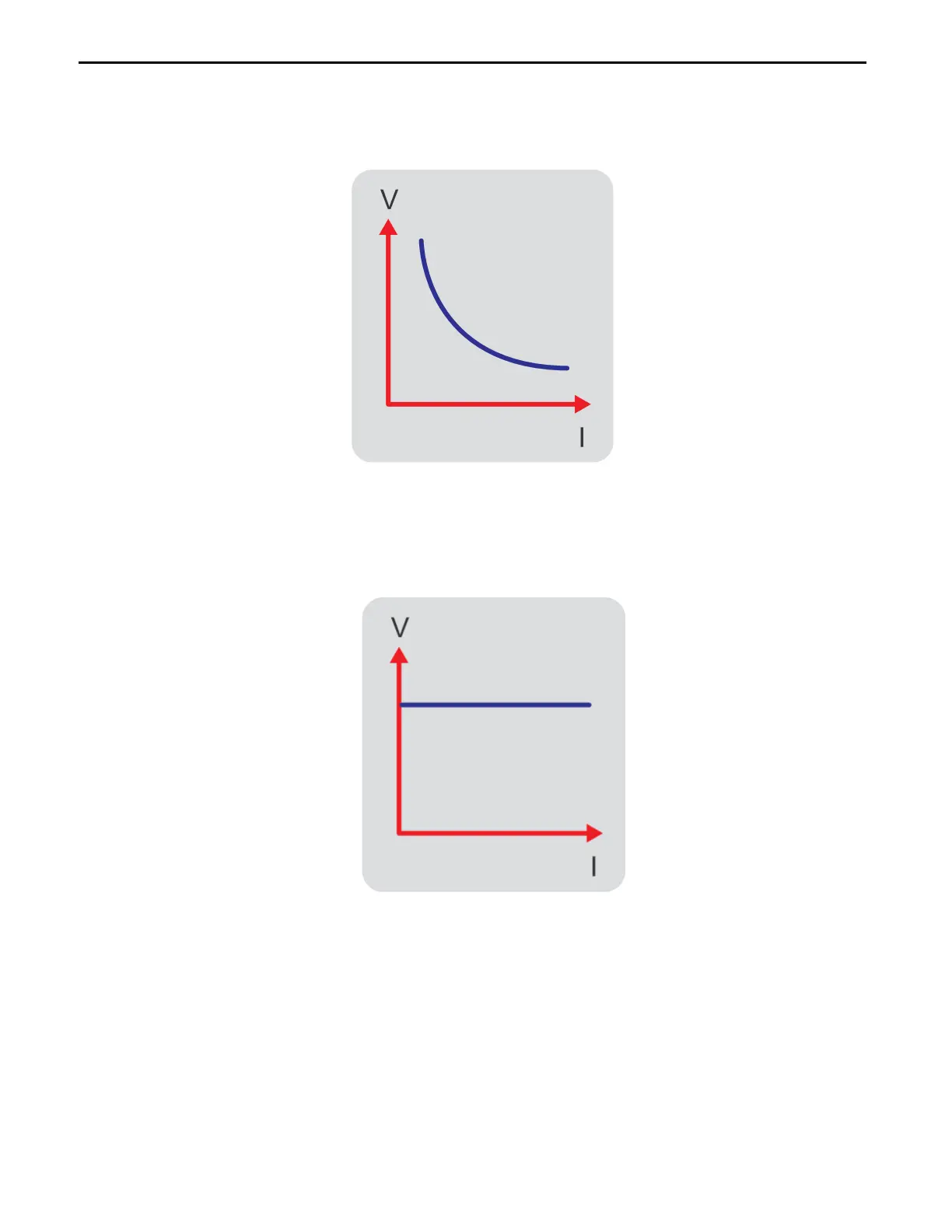

Fig 1-13 Constant Power mode
1.1.9. CV Mode:
At Constant Voltage mode, the 3270 series Electronic Load will attempt to sink enough
current until the load input voltage reaches the programmed value (see Fig 1-14).
Fig 1-14 Constant Voltage mode
Voltage Setting
