136 PRODIGIT

5-14. SHORT testing

5.14.1. SHORT Manual control

Example:

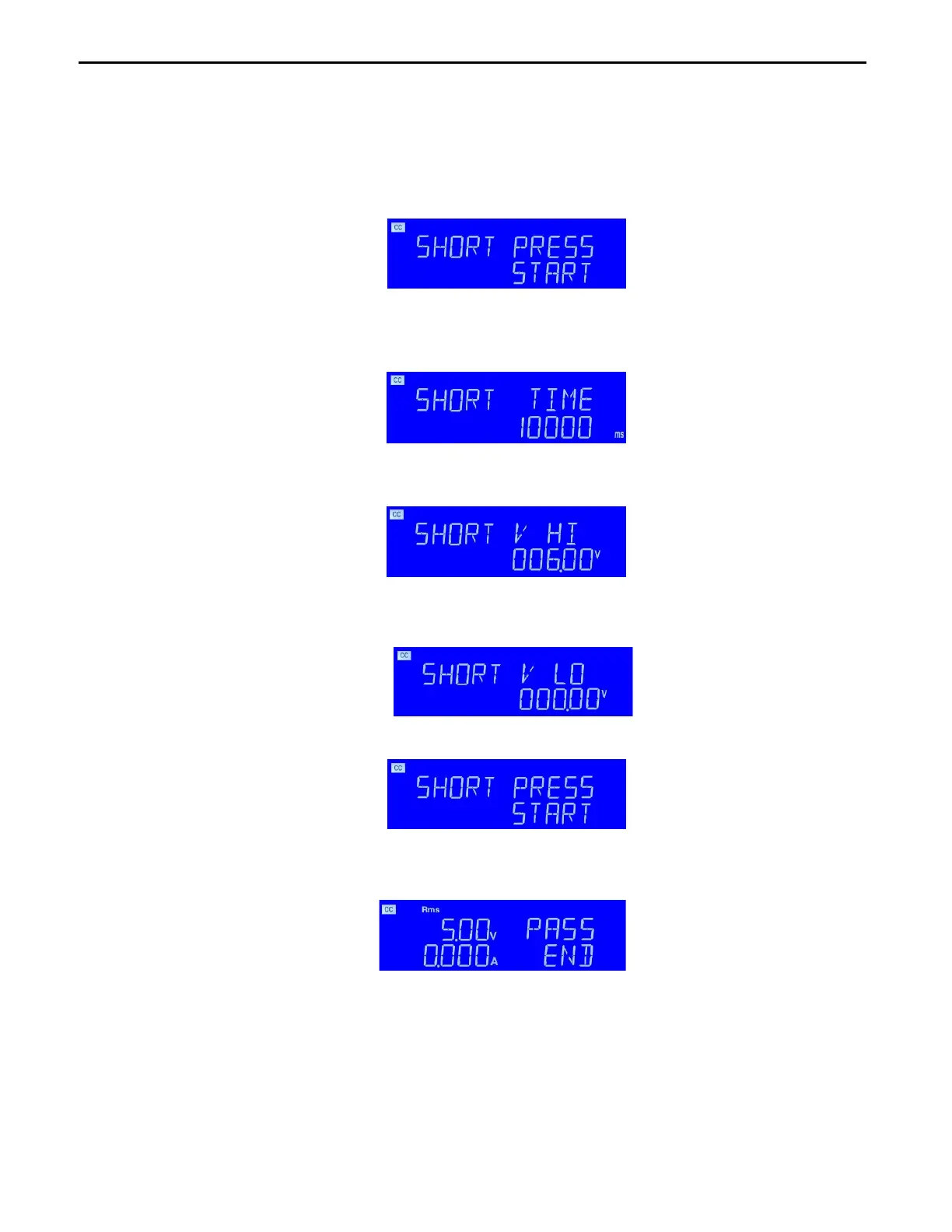

5.14.1.1. Setting SHORT test, press Short key to the next step.

5.14.1.2. Press UP key, setting Short time to 10000ms, press Short key to the

Next Step.

5.14.1.3. Press down key, setting V-Hi voltage to 6.00V, press Short key to the

Next Step.

5.14.1.4. Press down key, setting V-Lo voltage to 0V, press Short key to the Next

Step.

5.14.1.5. Press START/STOP test key.

5.14.1.6. Short test finish, the UUT’s drop voltage is between V_Hi and V_Lo

Limitation, then right upper 5 digits LCD display will shows "PASS"
