3270 Series Operation Manual 71

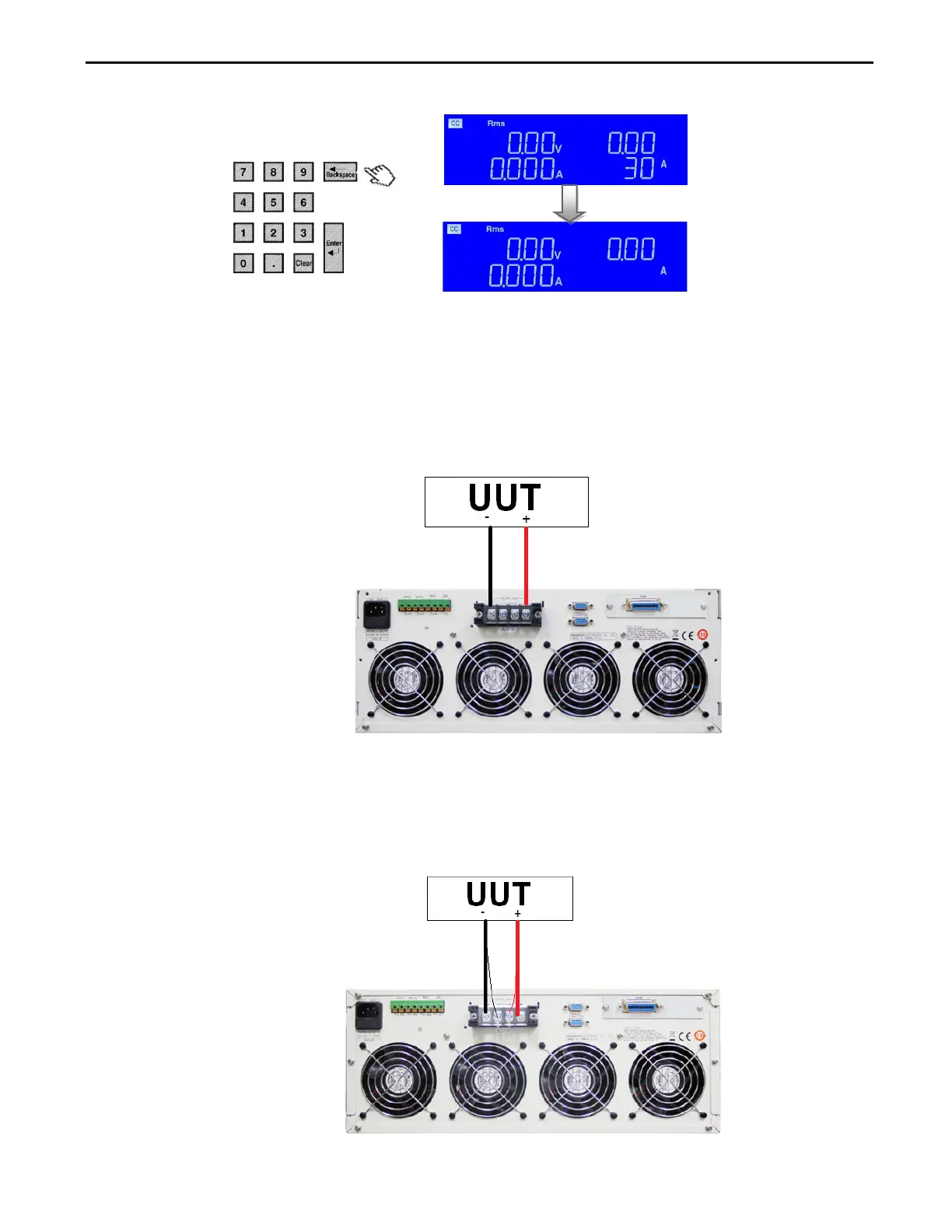

Backspace KEY：Setting, press the Clear key to clear the input value.
Note: In CR mode, increase setting value define for current value, so clockwise the
Rotary switch and press UP key will decrease the resistance value to increase
The current value. anti-clockwise the rotary switch and press DOWN key will
increase the resistance value to decrease the current value.
3.3.26. DC INPUT Terminal.
When Load Input Connector is used, be sure that the rated specification of the
Voltage and current of the 3270 Series AC/DC Electronic Load shall not be
Exceeded.
Fig 3-3 typical connection of 3270 series load module
3.3.27. V-sense input terminal
In order to solve the voltage drop of the conductor under the condition of big load
Current, Vsense-CLIP cable can be used to connect with the specific point to be
Measured thus obtaining the specific voltage value.
Fig 3-4 typical connection of 3270 series load module
