6 PRODIGIT

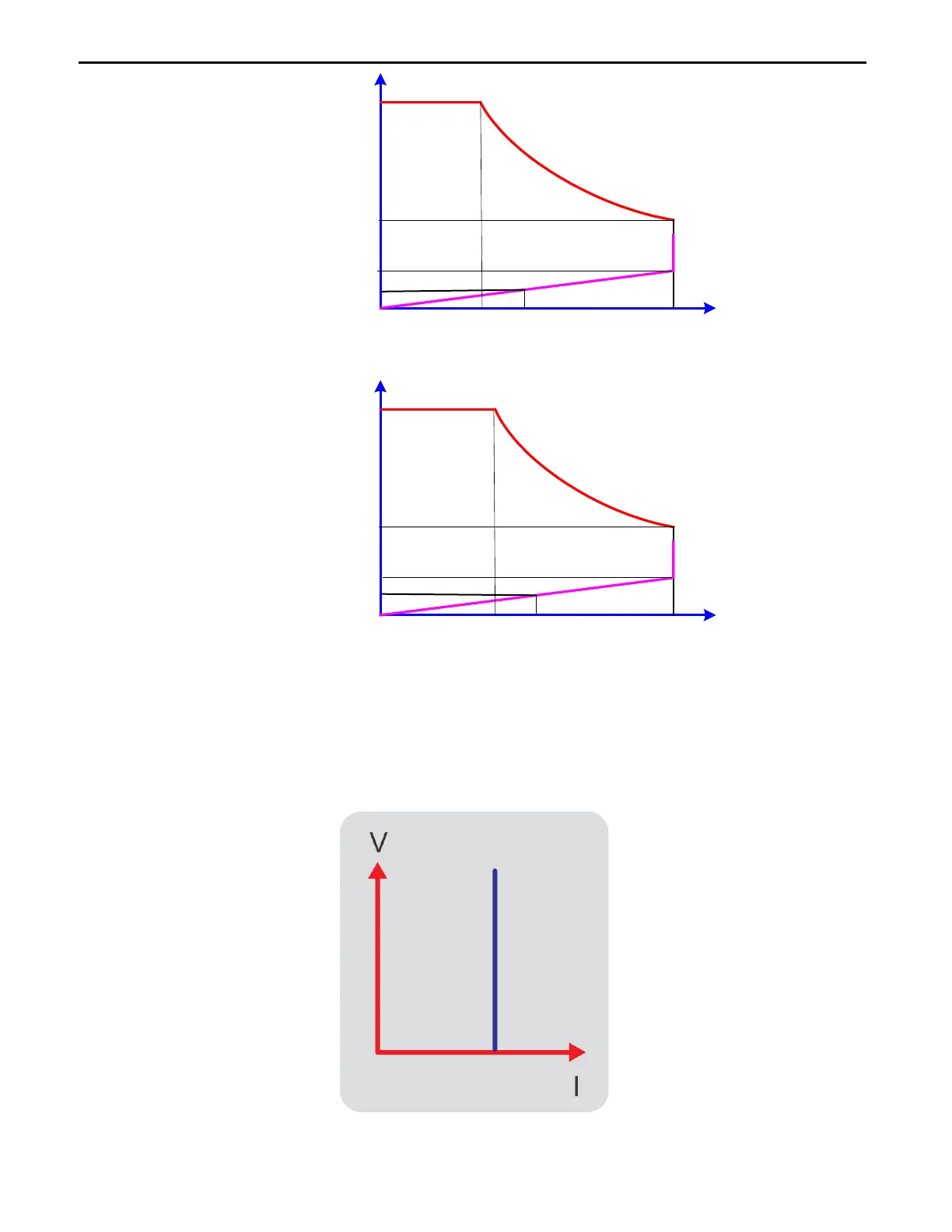

Fig 1-4 3273 power contour

Fig 1-5 3274 power contour

Complete AC and DC load modes

• AC load mode

1.1.1. CC Mode

With the operating mode of Constant Current, the 3270 series electronic load will sink a

current in accordance with the programmed value regardless of the input voltage (see

Fig.1-6).

Fig 1-6 Constant Current mode

Current Setting

350V

28A

3750W

Power Curve

Voltage

Current

133V

50V

18.6A

20V

10.7A

350V

18.75A8A

2800W

Power Curv

Voltage

Current

149V

50V

12.5A

20V
