2.3.1. Check the rating of the line fuse and replace it with the correct fuse if necessary.
100V~230V use T2A/250V (5*20mm).
2.3.2. The AC line fuse is located below the AC line receptacle see Fig 2-2. Use a small
Screwdriver to extract the fuse holder, to change a new one. Change an appropriate
Specifications fuse which indicated in Table 1-1.
2.3.3. Reinstall fuse holder and connect the power cord.

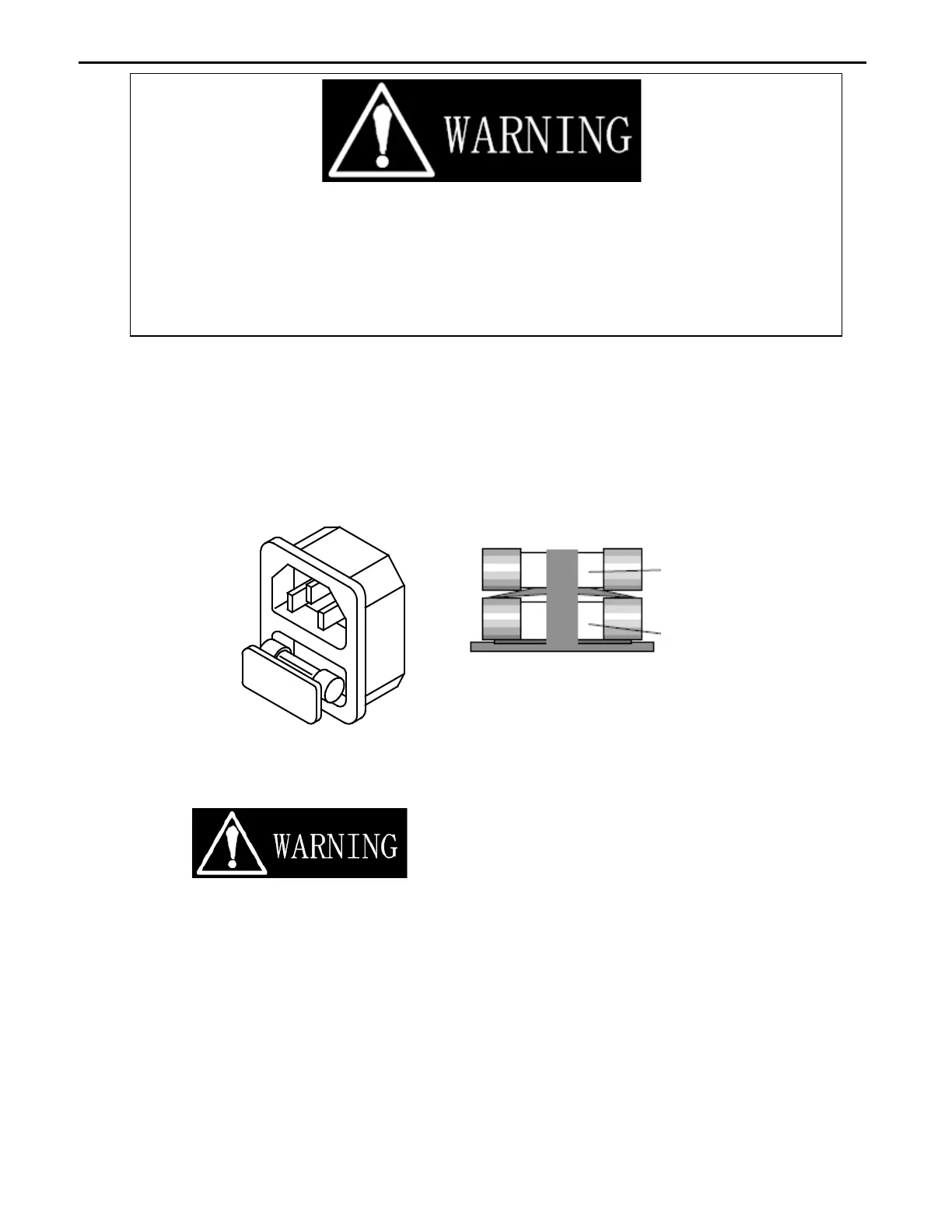

Fig 2-2 3270 Series fuse holder
2-4 Grounding requirements
SHOCK HAZARD
1. It is requested to use the 3Pin plug connector only for 3270 Series mainframe to out of
danger when electric leakage. And the complete and proper grounded is necessary.
2. The 3270 Series high power AC/DC load is equipped with three conductor cable which
plugs in an appropriate receptacle to ground the instrument's cover.
To avoid the fire or electronic shock, the Fuse that will be used in the product should have
the safety standard in the area of the region you use. Any use of improper Fuse or shorting
the Fuse holder would be extremely dangerous and would be strictly prohibited.
・ Before exchanging the Fuse, if there are abnormal odor or abnormal noise,
・Please stop using immediately and ask for the repair.
