Prodigit 3270 Series - Fig 3-8 STORE (EDIT) MODE OPERATIONO FLOW-CHART

To Next Page

To Previous Page

3270 Series Operation Manual 85

• Press ENTER key, the LCD display shows “FX-XX” on left 5 digit LCD display,

Middle 5 digit LCD display ”STATE” , right 5 digit LCD display setting 1~150,

“FX” means to select the state F1-F9. “XX” means the test STEP01-16,setting

State value,press UP and down Key or keypad to adjust setting.

• Test time setting:

Press ENTER to set TIME value, press UP, DOWN keys or KEYPAD to adjust

Settings, range from 100 ms~9999ms.

Press SAVE key to finish editing the action is set to REPEAT if you do not save

The settings, press the EXIT key to leave edit mode.

• Setting REPEAT(REPEAT TEST) ,Press UP and DOWN key or Keypad to

Adjust setting 0~9999, Press SAVE REPEAT Value, or press EXIT key

Exit EDIT MODE.

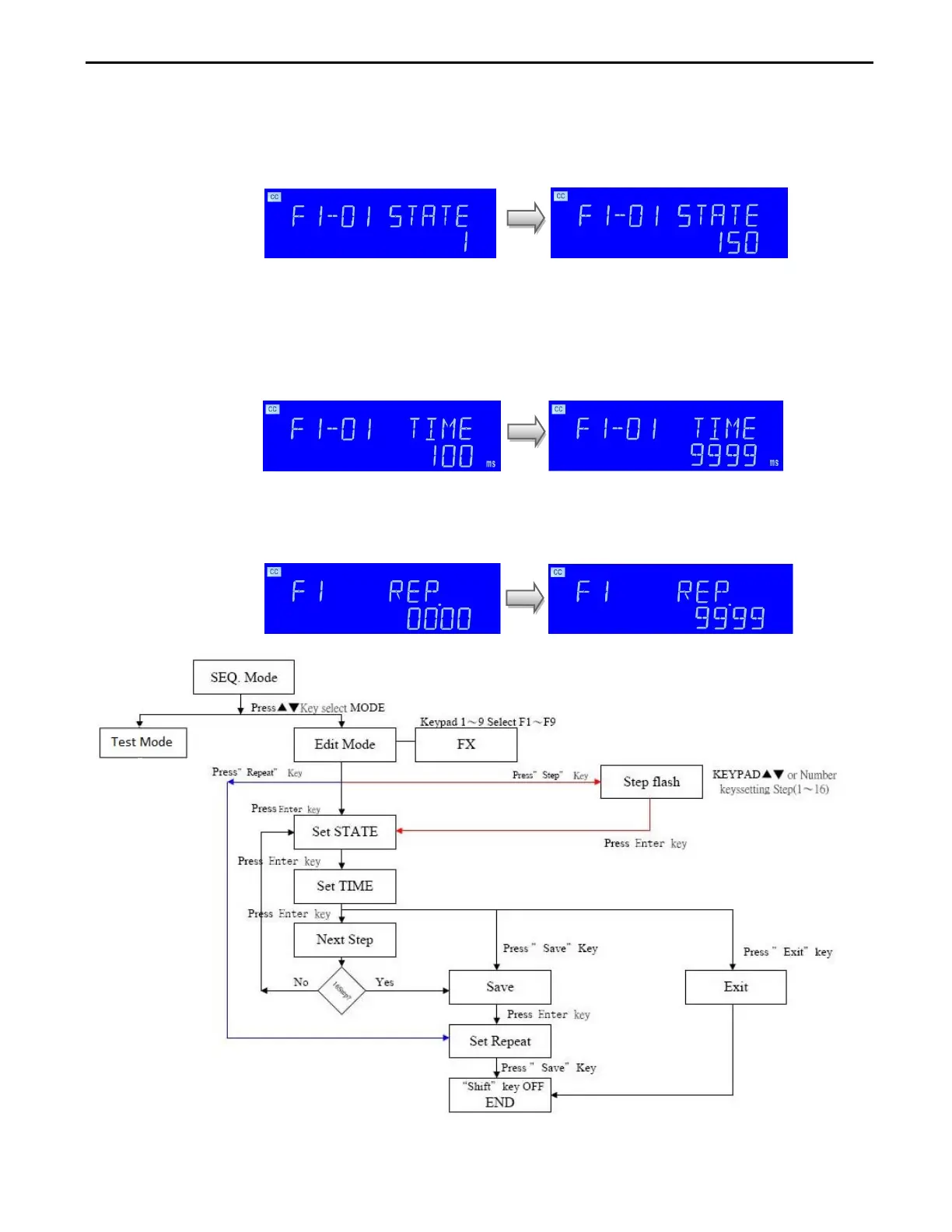

Fig 3-8 STORE (EDIT) MODE OPERATIONO FLOW-CHART
