If only DC operation is required, a capacitor may be connected to the load Input Terminal as
shown in Fig. 2-10 to alleviate oscillation. In this case, use the capacitor within its Allowable
ripple current.

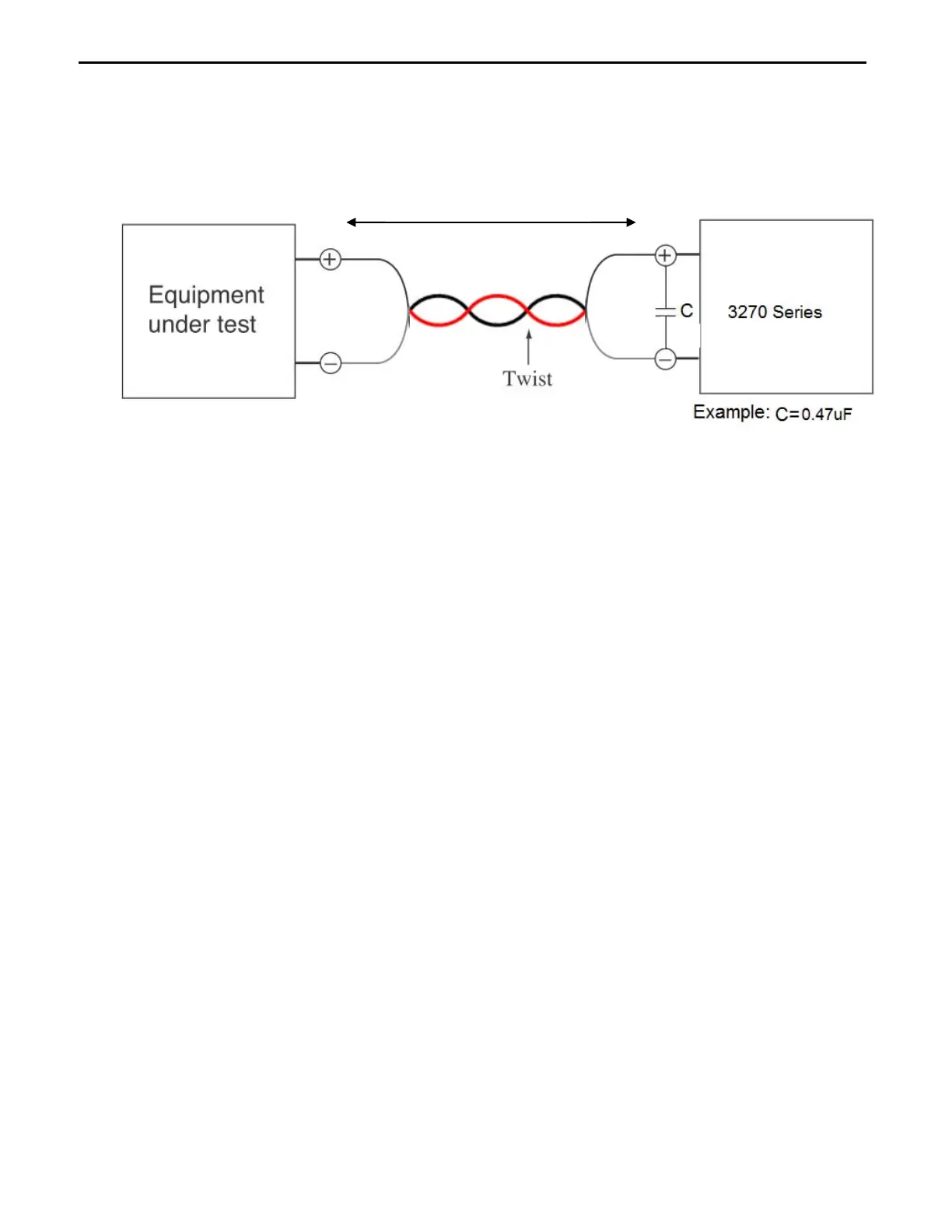

Fig 2-10 Length of wiring
Keep the wire short
