5-7. Battery discharge test application
3270 series AC & DC electronic load has built-in new TYPE1 ~ TYPE3 battery discharge test,
You can select the desired battery test mode, the test results can be directly displayed on the
LCD display for battery AH capacity, the voltage value after discharge and the cumulative
Discharge time.

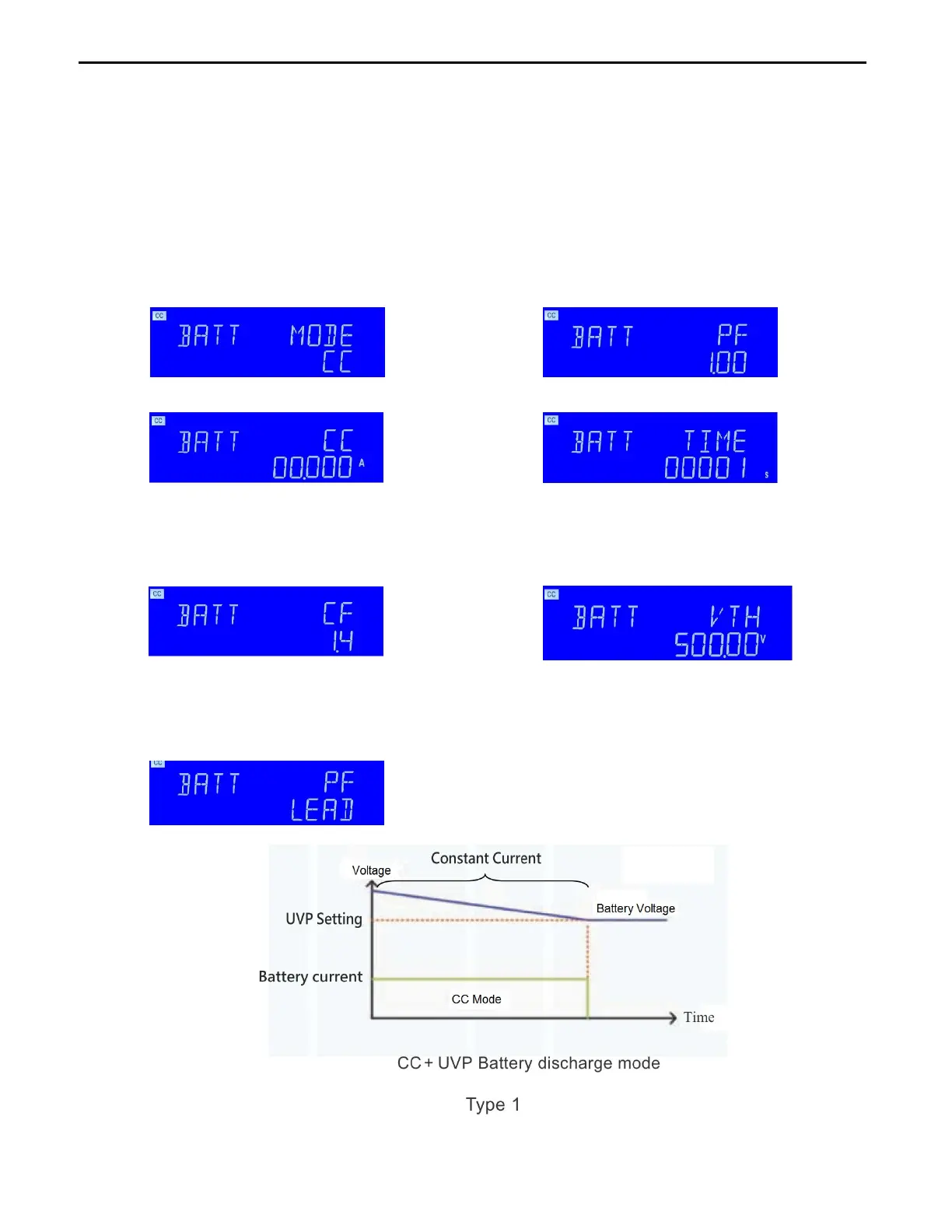

5.7.1. Constant Current Discharge Test
3. set the crest factor,
3. Set the crest factor
This function is only used when testing
UPS discharge. When testing the battery
Discharge is no CF function.
7. Set the UVP Voltage
6. Set the discharge time
2. Set discharge current
1. Set mode is constant current
5. Set the Phase angle
This function is only used when testing
UPS discharge. When testing the battery
Discharge is no Phase angle function.
4. Set the Phase Lead or lag
This function is only used when testing
UPS discharge. When testing the battery
Discharge is no Phase Lead or lag function.
