3270 Series Operation Manual 5
3270 Series AC/DC electronic load can be used to work with GPIB, RS232, USB or LAN
interface and panel manual operation can be made available. The work area of 3270 3750W
is as shown in Fig.1-1. The work scope of its voltage and current is 0-350Vrms and 0-
37.5Arms respectively.
The electronic load operating environment temperature is 0 ° C ~ 40 ° C, full power operation
for a period of time may produce OTP.

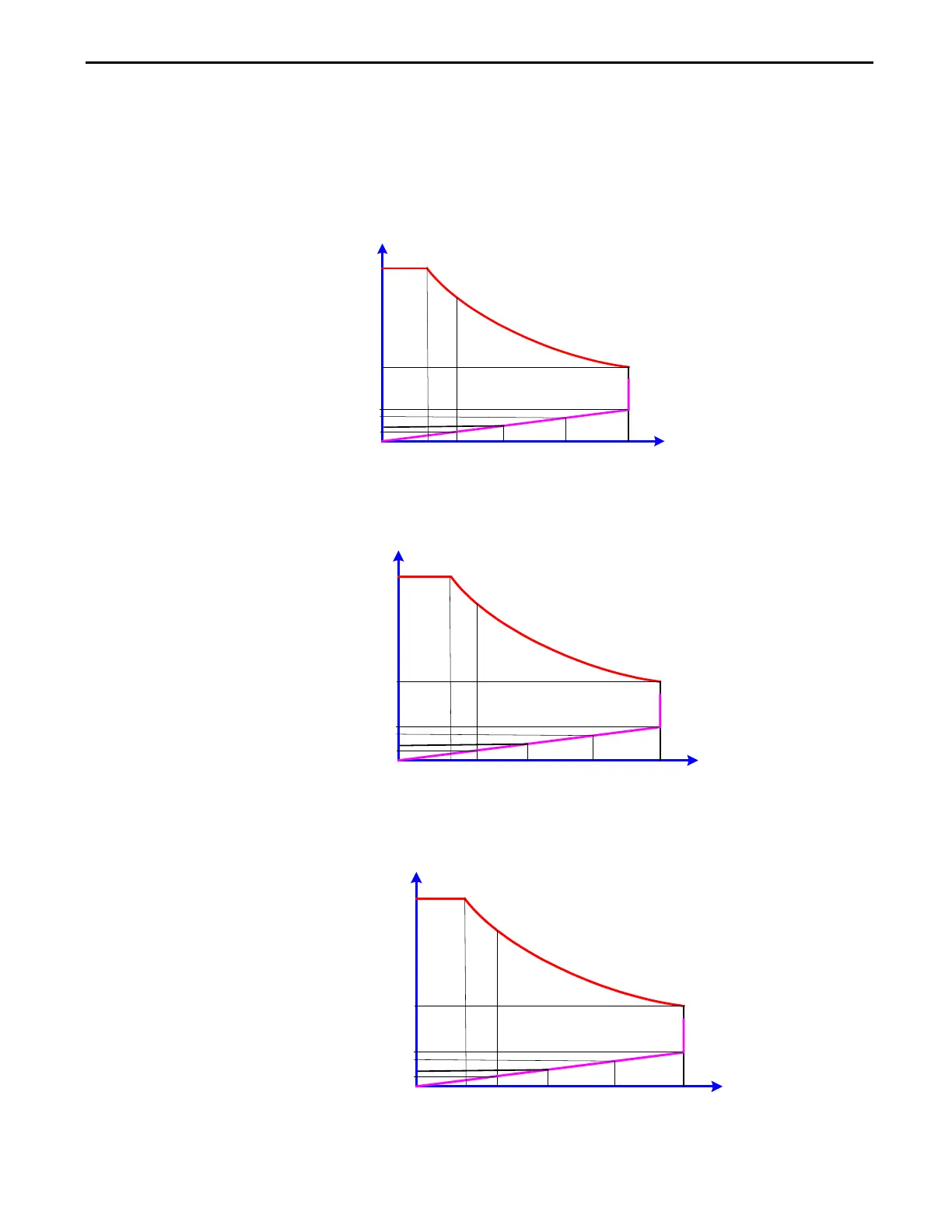

Fig 1-1 3270 power contour
The work area of 3271 2800W is as shown in Fig.1-2.
The work scope of its voltage and current is 0-350Vrms and 0-28Arms respectively.
Fig 1-2 3271 power contour
The work area of 3272 1875W is as shown in Fig.1-3.
The work scope of its voltage and current is 0-350Vrms and 0-28Arms respectively.
Fig 1-3 3272 power contour
350V
10V
37.5A
12.5A
3750W
Power Curve
Voltage
Current
100V
50V
25A
37A
20V
30V
10.7A
350V
10V
28A8A
Voltage
Current
100V
50V
18.75A
27.75A
20V
30V
9.375A
2800W
Power Curve
350V
10V
18.75A6.25A
1875W
Power Curve
Voltage
Current
100V
50V
12.5A
18.5A
20V
30V
5.35A
